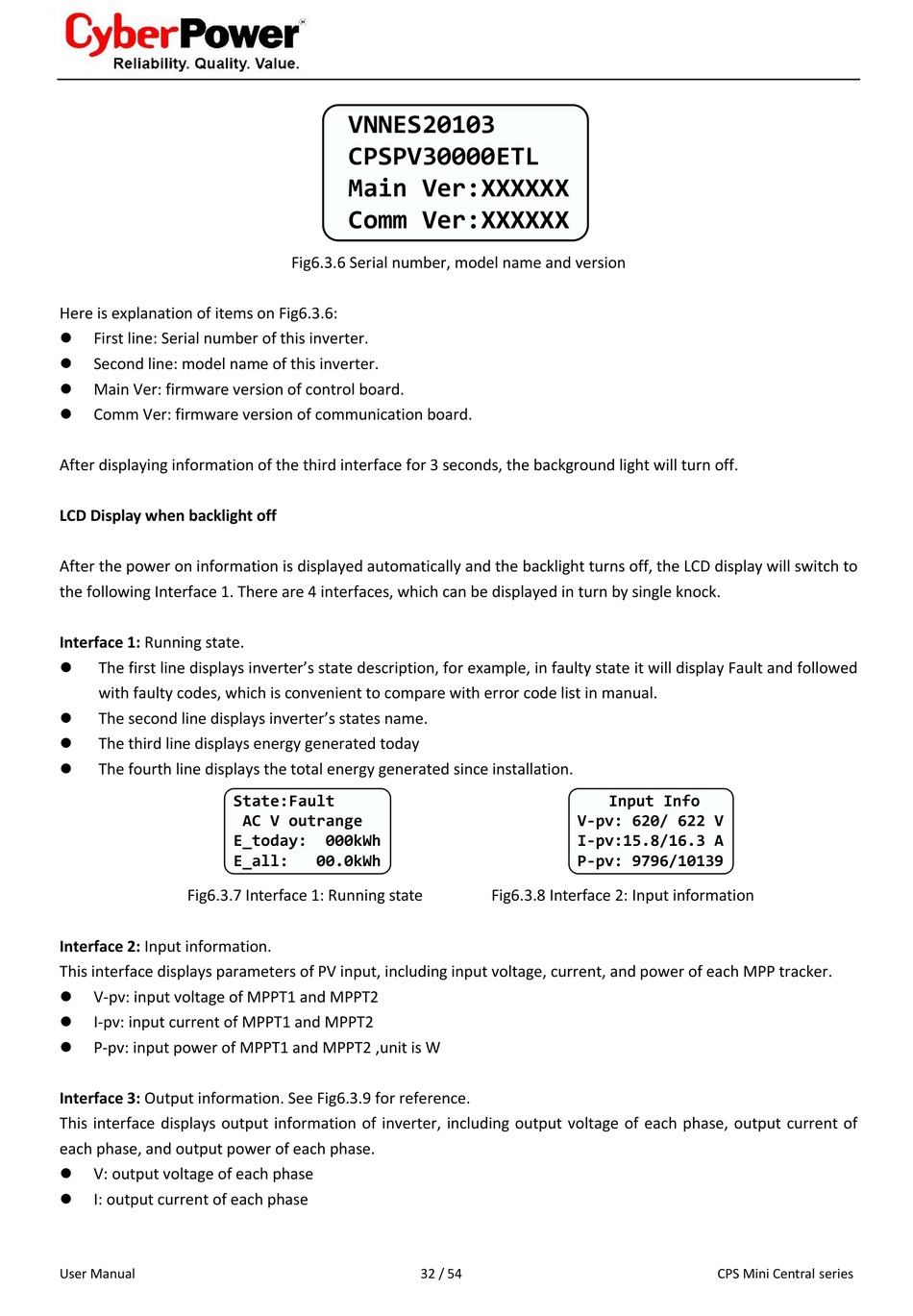

Here is explanation of items on Fig6.3.6:

First line: Serial number of this inverter.

Second line: model name of this inverter.

Main Ver: firmware version of control board.

Comm Ver: firmware version of communication board.
After displaying information of the third interface for 3 seconds, the background light will turn off.
LCD Display when backlight off
After the power on information is displayed automatically and the backlight turns off, the LCD display will switch to
the following Interface 1. There are 4 interfaces, which can be displayed in turn by single knock.
Interface 1: Running state.

The first line displays inverter's state description, for example, in faulty state it will display Fault and followed
with faulty codes, which is convenient to compare with error code list in manual.

The second line displays inverter's states name.

The third line displays energy generated today

The fourth line displays the total energy generated since installation.
Fig6.3.7 Interface 1: Running state
Interface 2: Input information.
This interface displays parameters of PV input, including input voltage, current, and power of each MPP tracker.

V-pv: input voltage of MPPT1 and MPPT2

I-pv: input current of MPPT1 and MPPT2

P-pv: input power of MPPT1 and MPPT2 ,unit is W
Interface 3: Output information. See Fig6.3.9 for reference.
This interface displays output information of inverter, including output voltage of each phase, output current of
each phase, and output power of each phase.

V: output voltage of each phase

I: output current of each phase
User Manual
VNNES20103
CPSPV30000ETL
Main Ver:XXXXXX
Comm Ver:XXXXXX
Fig6.3.6 Serial number, model name and version
State:Fault
AC V outrange
E_today: 000kWh
E_all: 00.0kWh
V-pv: 620/ 622 V
I-pv:15.8/16.3 A
P-pv: 9796/10139
Fig6.3.8 Interface 2: Input information
