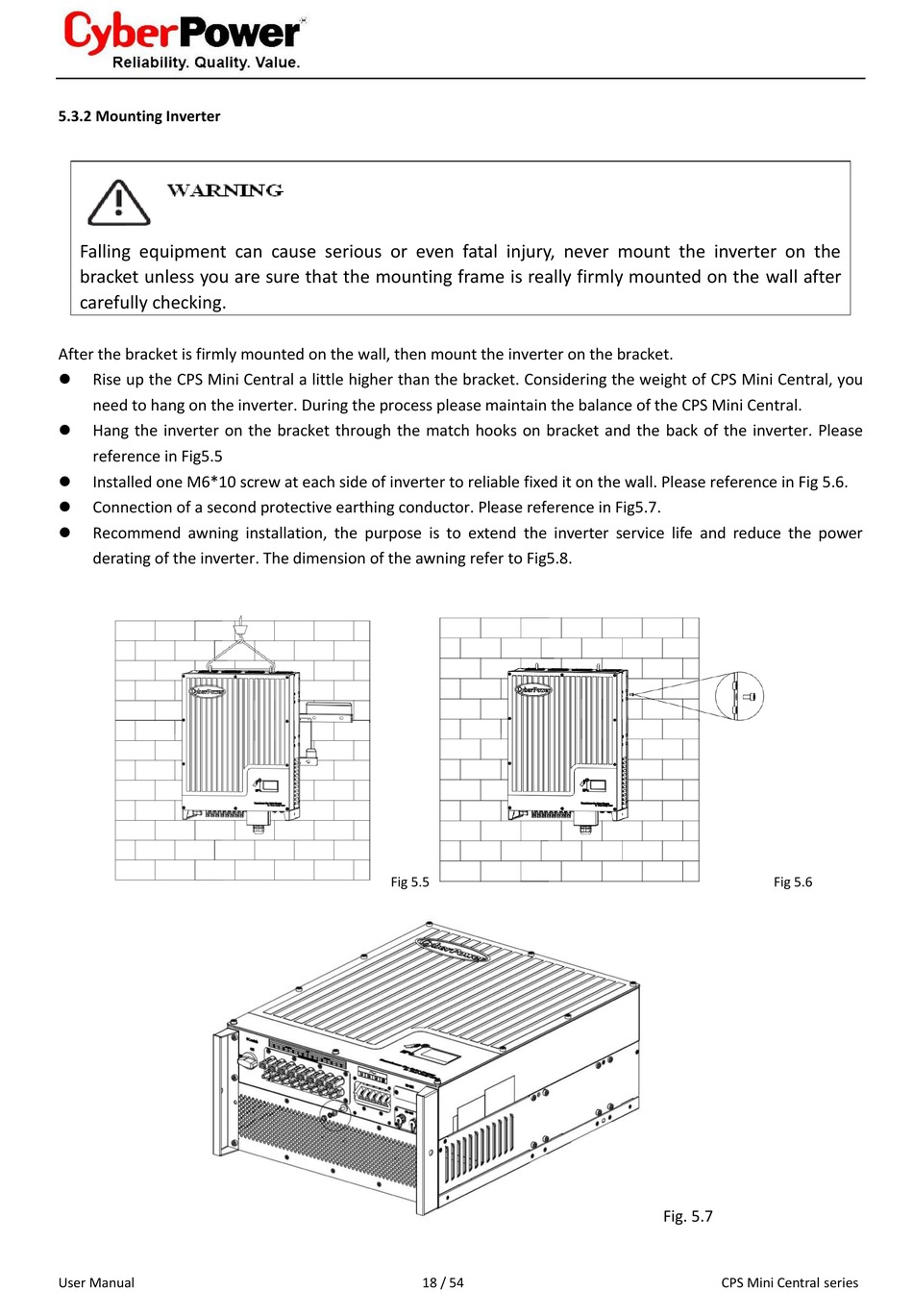

5.3.2 Mounting Inverter

Falling equipment can cause serious or even fatal injury, never mount the inverter on the
bracket unless you are sure that the mounting frame is really firmly mounted on the wall after
carefully checking.
After the bracket is firmly mounted on the wall, then mount the inverter on the bracket.
Rise up the CPS Mini Central a little higher than the bracket. Considering the weight of CPS Mini Central, you
need to hang on the inverter. During the process please maintain the balance of the CPS Mini Central.
Hang the inverter on the bracket through the match hooks on bracket and the back of the inverter. Please
reference in Fig5.5
Installed one M6*10 screw at each side of inverter to reliable fixed it on the wall. Please reference in Fig 5.6.
Connection of a second protective earthing conductor. Please reference in Fig5.7.
Recommend awning installation, the purpose is to extend the inverter service life and reduce the power
derating of the inverter. The dimension of the awning refer to Fig5.8.
User Manual
Fig 5.5
18 / 54
Fig 5.6
Fig. 5.7
CPS Mini Central series
