(male and female connectors). The vendor of DC connectors for both PV arrays and inverters should be
H4 (Amphenol).
3 Check the assembled DC connectors for correct polarity and connect them to the inverter.
4 The maximum MPPT currents are varying from different inverter types.

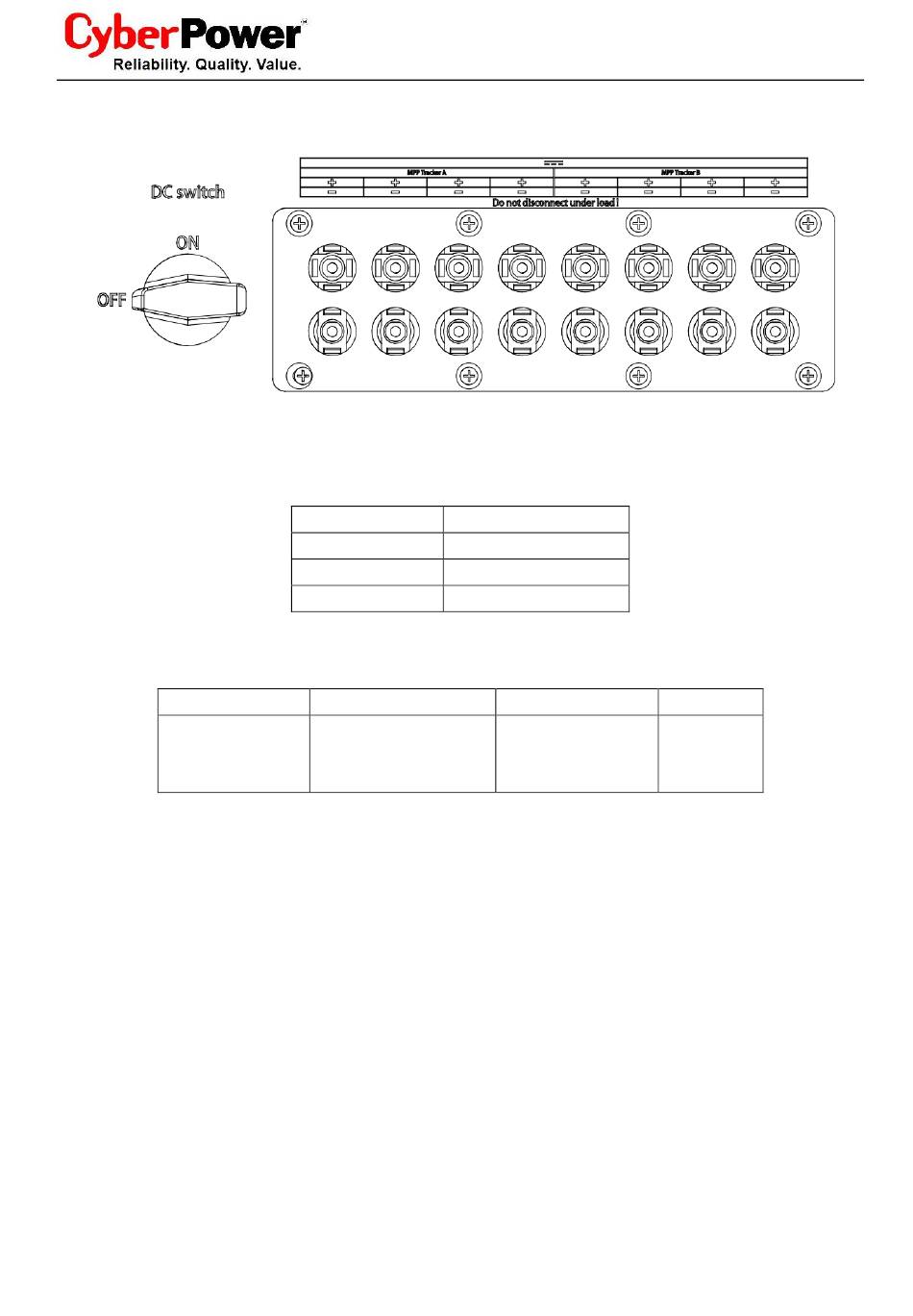

5 In order to seal the inverter, all unused DC inputs must be closed with sealing plugs:
Cable requirements:
Model
CPSPV30000ETL
CPSPV33000ETL
CPSPV40000ETL

5.4.4 Grounding

AC Grounding
The CPS Mini Central inverter must be connected to the AC grounding conductor of the power distribution grid via
the ground terminal (PE).
PV Grounding
The grounding conductor in the framework of the PV array must be connected to the PV grounding conductor and
the DC grounding conductor. The cross-section of the grounding conductor corresponds to the cross-section of the
largest conductor in the DC system.
DC Grounding Conductor
A DC grounding conductor may be required by the Authority Having Jurisdiction (AHJ). Use the terminal block for
the PV grounding conductor and DC grounding conductor.
Ground kit
User Manual
Fig.5.13
Type
CPSPV30000ETL
CPSPV33000ETL
CPSPV40000ETL
Diameter(mm)
2.05-2.59
24 / 54
Max. current
35A/35A
38A/38A
38A/38A
Area(mm²)
3.332-5.26
AWG
12-10
