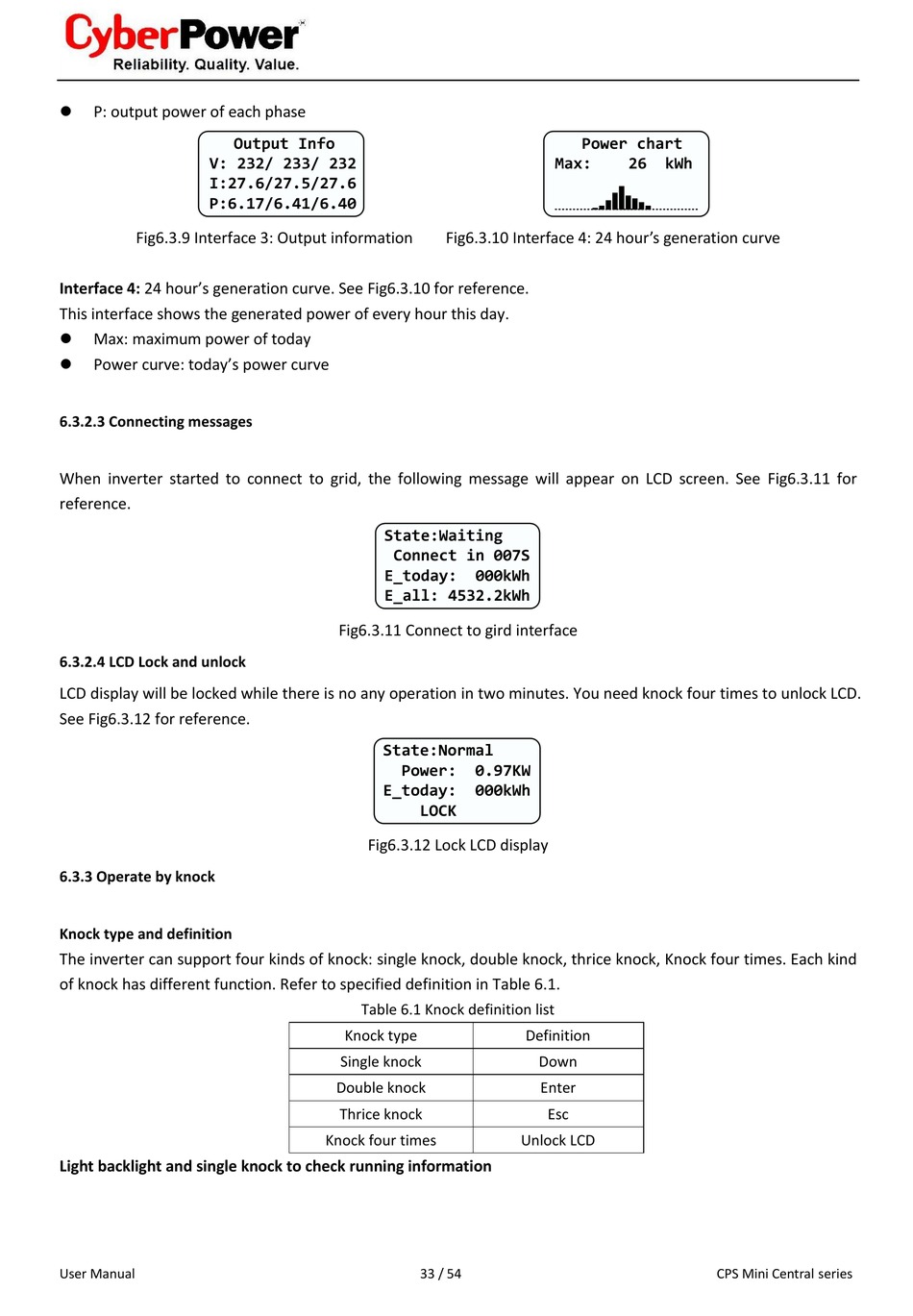

P: output power of each phase
V: 232/ 233/ 232
I:27.6/27.5/27.6
P:6.17/6.41/6.40
Fig6.3.9 Interface 3: Output information
Interface 4: 24 hour's generation curve. See Fig6.3.10 for reference.
This interface shows the generated power of every hour this day.

Max: maximum power of today

Power curve: today's power curve
6.3.2.3 Connecting messages
When inverter started to connect to grid, the following message will appear on LCD screen. See Fig6.3.11 for
reference.
6.3.2.4 LCD Lock and unlock
LCD display will be locked while there is no any operation in two minutes. You need knock four times to unlock LCD.
See Fig6.3.12 for reference.

6.3.3 Operate by knock

Knock type and definition
The inverter can support four kinds of knock: single knock, double knock, thrice knock, Knock four times. Each kind
of knock has different function. Refer to specified definition in Table 6.1.
Light backlight and single knock to check running information
User Manual
Output Info
State:Waiting
Connect in 007S
E_today:
E_all: 4532.2kWh
Fig6.3.11 Connect to gird interface
State:Normal
Power:
E_today:
Fig6.3.12 Lock LCD display
Table 6.1 Knock definition list
Knock type
Single knock
Double knock
Thrice knock
Knock four times
Power chart
Max:
Fig6.3.10 Interface 4: 24 hour's generation curve
000kWh
0.97KW
000kWh
LOCK
Definition
Down
Enter
Esc
Unlock LCD
33 / 54
26 kWh
CPS Mini Central series
