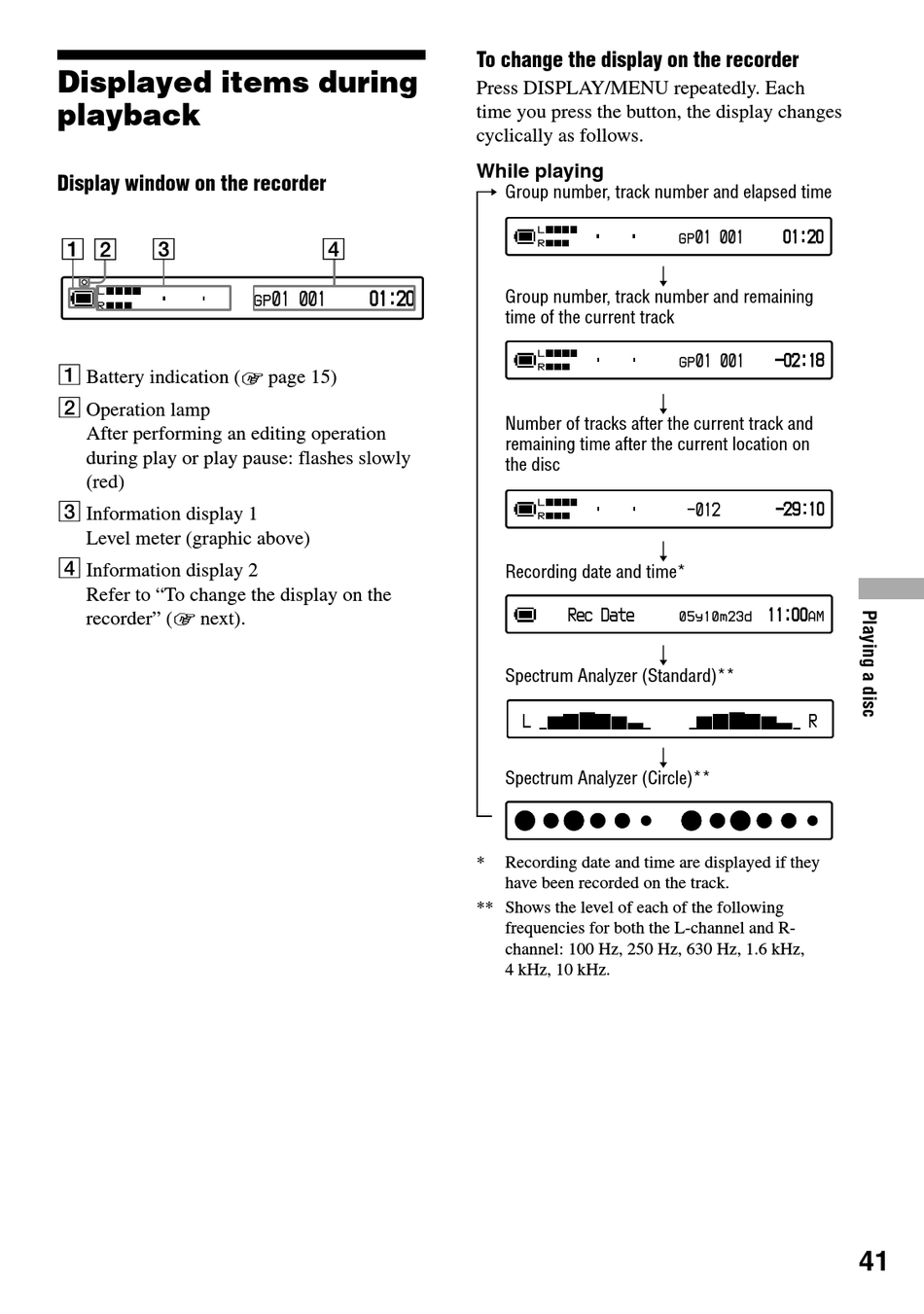

Displayed items during
Display window on the recorder
Battery indication ( page 15)
After performing an editing operation
during play or play pause: flashes slowly
Information display 1
Level meter (graphic above)
Information display 2
Refer to "To change the display on the
recorder" ( next).
To change the display on the recorder
Press DISPLAY/MENU repeatedly. Each
time you press the button, the display changes
cyclically as follows.
Group number, track number and elapsed time
Group number, track number and remaining
time of the current track
Number of tracks after the current track and
remaining time after the current location on
Recording date and time*
Spectrum Analyzer (Standard)**
Spectrum Analyzer (Circle)**
Recording date and time are displayed if they
have been recorded on the track.
** Shows the level of each of the following
frequencies for both the L-channel and R-
channel: 100 Hz, 250 Hz, 630 Hz, 1.6 kHz,
4 kHz, 10 kHz.
