Appendix A: Programming the Flash Memory Device

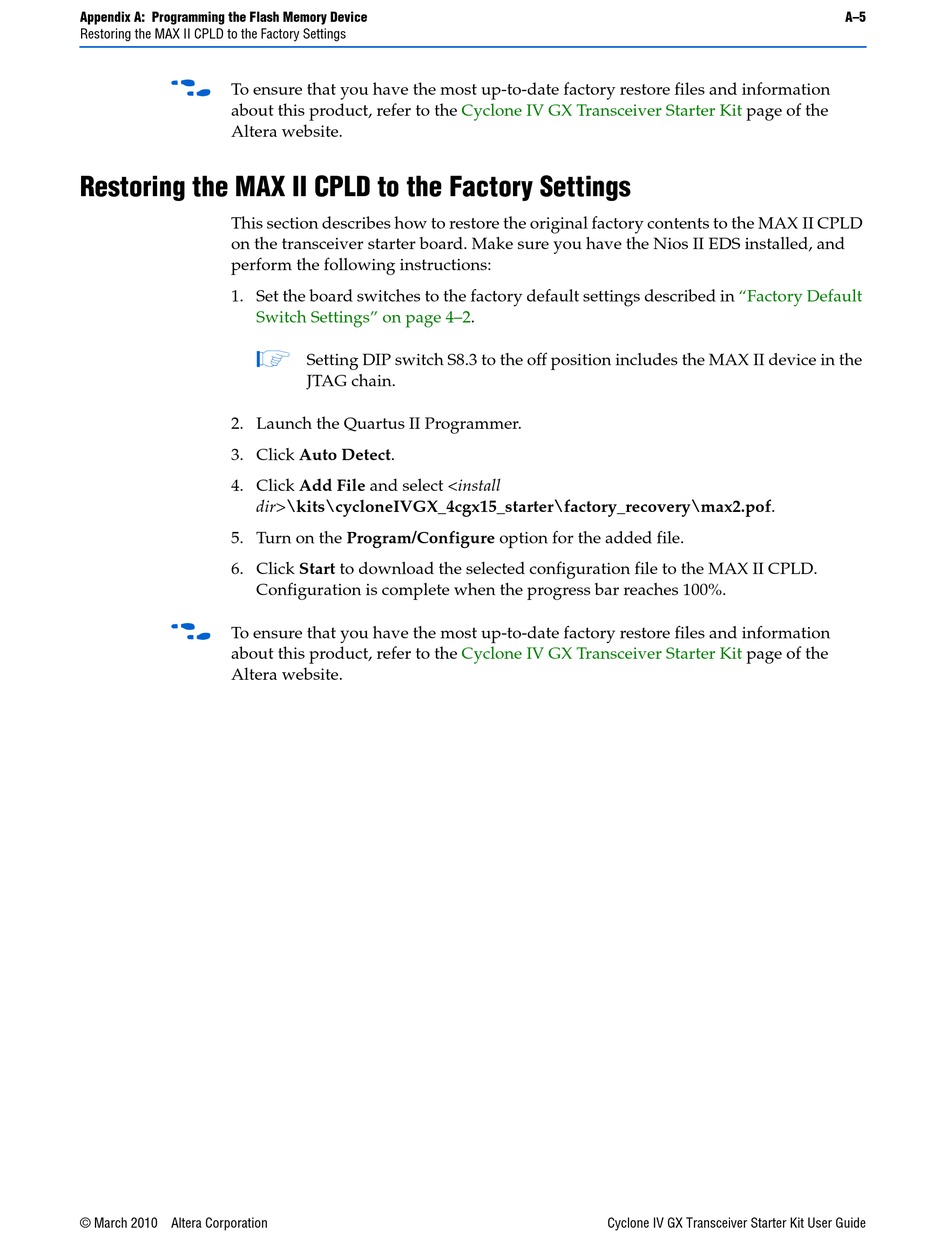

Restoring the MAX II CPLD to the Factory Settings

f
To ensure that you have the most up-to-date factory restore files and information
about this product, refer to the
Altera website.
Restoring the MAX II CPLD to the Factory Settings
This section describes how to restore the original factory contents to the MAX II CPLD
on the transceiver starter board. Make sure you have the Nios II EDS installed, and
perform the following instructions:
1. Set the board switches to the factory default settings described in
Switch Settings" on page
1
2. Launch the Quartus II Programmer.
3. Click Auto Detect.
4. Click Add File and select <install
dir>\kits\cycloneIVGX_4cgx15_starter\factory_recovery\max2.pof.
5. Turn on the Program/Configure option for the added file.
6. Click Start to download the selected configuration file to the MAX II CPLD.
Configuration is complete when the progress bar reaches 100%.
f
To ensure that you have the most up-to-date factory restore files and information
about this product, refer to the
Altera website.
© March 2010 Altera Corporation
Cyclone IV GX Transceiver Starter Kit
4–2.
Setting DIP switch S8.3 to the off position includes the MAX II device in the
JTAG chain.
Cyclone IV GX Transceiver Starter Kit
page of the
"Factory Default
page of the
Cyclone IV GX Transceiver Starter Kit User Guide
A–5
