Chapter 4: Board Setup
Factory Default Switch Settings

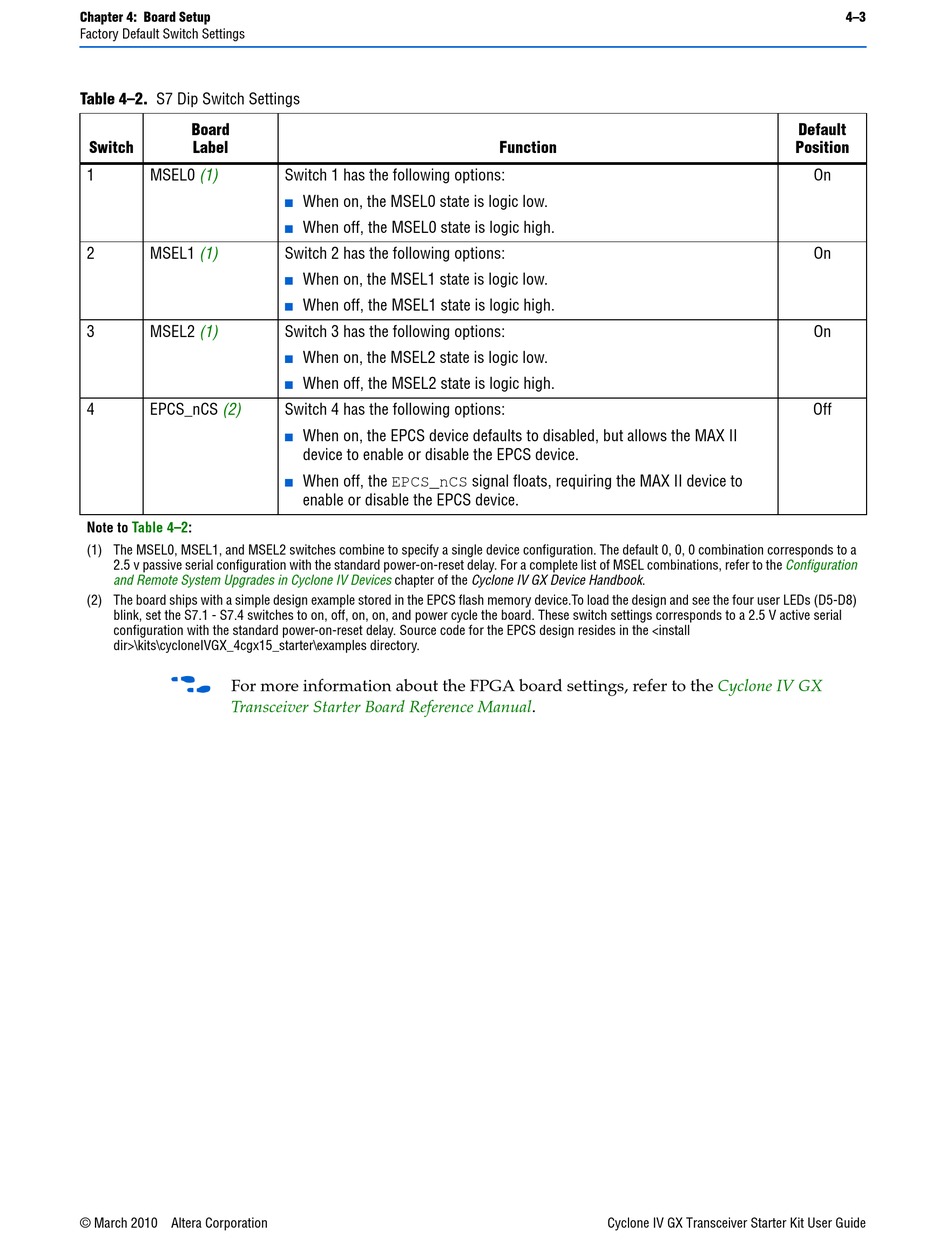

Table 4–2. S7 Dip Switch Settings
Board
Switch Label
1 MSEL0 (1)
2 MSEL1 (1)
3 MSEL2 (1)
4 EPCS_nCS (2)
Note to Table 4–2:
(1) The MSEL0, MSEL1, and MSEL2 switches combine to specify a single device configuration. The default 0, 0, 0 combination corresponds to a
2.5 v passive serial configuration with the standard power-on-reset delay. For a complete list of MSEL combinations, refer to the
and Remote System Upgrades in Cyclone IV Devices
(2) The board ships with a simple design example stored in the EPCS flash memory device.To load the design and see the four user LEDs (D5-D8)
blink, set the S7.1 - S7.4 switches to on, off, on, on, and power cycle the board. These switch settings corresponds to a 2.5 V active serial
configuration with the standard power-on-reset delay. Source code for the EPCS design resides in the <install
dir>\kits\cycloneIVGX_4cgx15_starter\examples directory.
f
For more information about the FPGA board settings, refer to the
Transceiver Starter Board Reference
© March 2010 Altera Corporation
Switch 1 has the following options:
When on, the MSEL0 state is logic low.
■
When off, the MSEL0 state is logic high.
■
Switch 2 has the following options:
When on, the MSEL1 state is logic low.
■
When off, the MSEL1 state is logic high.
■
Switch 3 has the following options:
When on, the MSEL2 state is logic low.
■
When off, the MSEL2 state is logic high.
■
Switch 4 has the following options:
When on, the EPCS device defaults to disabled, but allows the MAX II
■
device to enable or disable the EPCS device.
When off, the EPCS_nCS signal floats, requiring the MAX II device to
■
enable or disable the EPCS device.
chapter of the Cyclone IV GX Device Handbook.
Function
Manual.
Cyclone IV GX Transceiver Starter Kit User Guide
4–3
Default
Position
On
On
On
Off
Configuration
Cyclone IV GX
