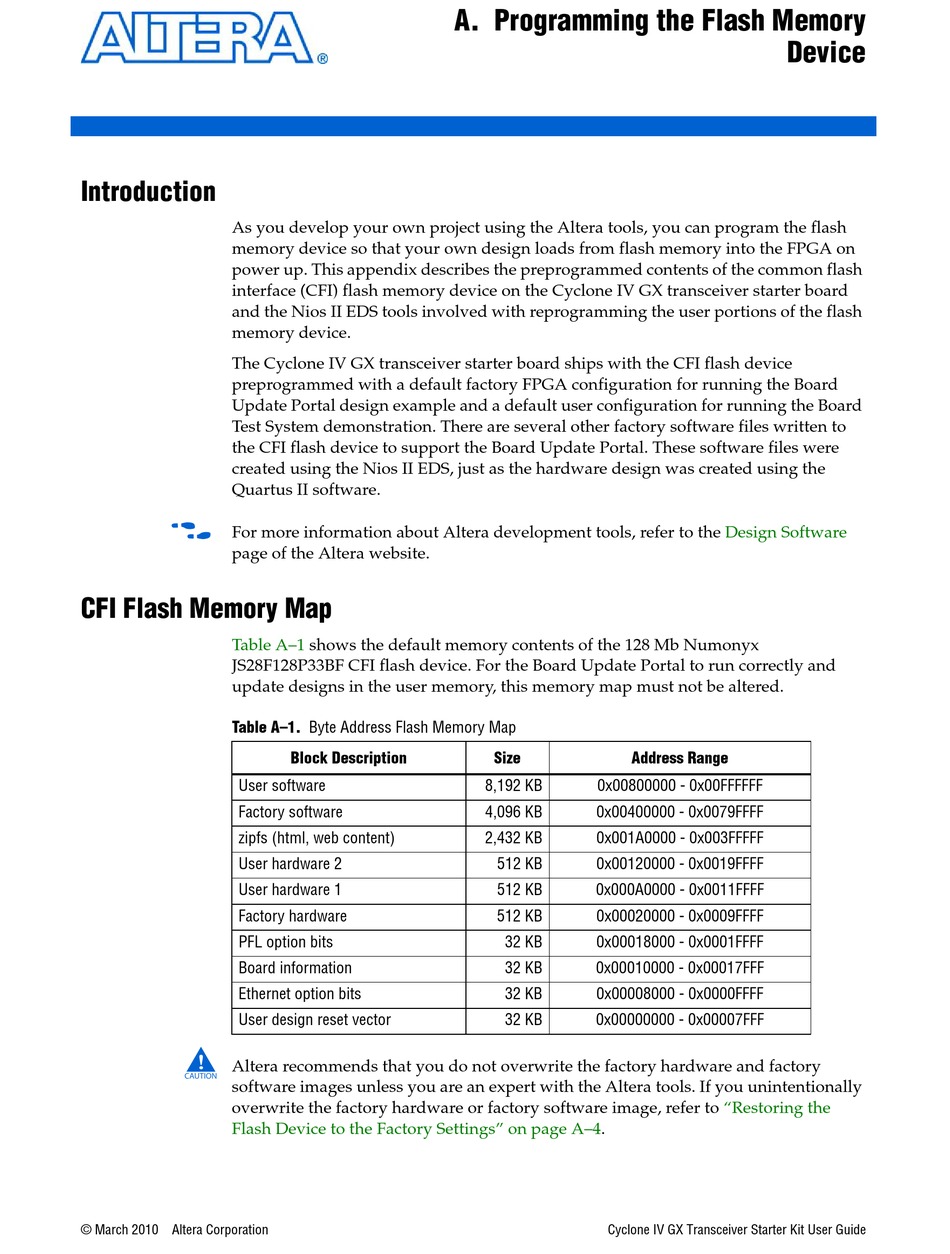

Appendix A. Programming The Flash Memory Device; Introduction; Cfi Flash Memory Map - Altera Cyclone IV GX User Manual

Introduction

As you develop your own project using the Altera tools, you can program the flash
memory device so that your own design loads from flash memory into the FPGA on
power up. This appendix describes the preprogrammed contents of the common flash
interface (CFI) flash memory device on the Cyclone IV GX transceiver starter board
and the Nios II EDS tools involved with reprogramming the user portions of the flash
memory device.
The Cyclone IV GX transceiver starter board ships with the CFI flash device
preprogrammed with a default factory FPGA configuration for running the Board
Update Portal design example and a default user configuration for running the Board
Test System demonstration. There are several other factory software files written to
the CFI flash device to support the Board Update Portal. These software files were
created using the Nios II EDS, just as the hardware design was created using the
Quartus II software.
f
For more information about Altera development tools, refer to the
page of the Altera website.

CFI Flash Memory Map

Table A–1
JS28F128P33BF CFI flash device. For the Board Update Portal to run correctly and
update designs in the user memory, this memory map must not be altered.
Table A–1. Byte Address Flash Memory Map
User software
Factory software
zipfs (html, web content)
User hardware 2
User hardware 1
Factory hardware
PFL option bits
Board information
Ethernet option bits
User design reset vector
c
Altera recommends that you do not overwrite the factory hardware and factory
software images unless you are an expert with the Altera tools. If you unintentionally
overwrite the factory hardware or factory software image, refer to
Flash Device to the Factory Settings" on page
© March 2010 Altera Corporation
A. Programming the Flash Memory
shows the default memory contents of the 128 Mb Numonyx
Block Description Size Address Range
8,192 KB 0x00800000 - 0x00FFFFFF
4,096 KB 0x00400000 - 0x0079FFFF
2,432 KB 0x001A0000 - 0x003FFFFF
512 KB 0x00120000 - 0x0019FFFF
512 KB 0x000A0000 - 0x0011FFFF
512 KB 0x00020000 - 0x0009FFFF
32 KB 0x00018000 - 0x0001FFFF
32 KB 0x00010000 - 0x00017FFF
32 KB 0x00008000 - 0x0000FFFF
32 KB 0x00000000 - 0x00007FFF
A–4.
Cyclone IV GX Transceiver Starter Kit User Guide
Device
Design Software
"Restoring the
