6–12

The SMA Tab

The SMA tab allows you to run a transceiver SMA loopback test on your board. You
can also load the design and use an oscilloscope to measure an eye diagram of the
SMA transmit signals.
1
Refer to
correctly for this test.

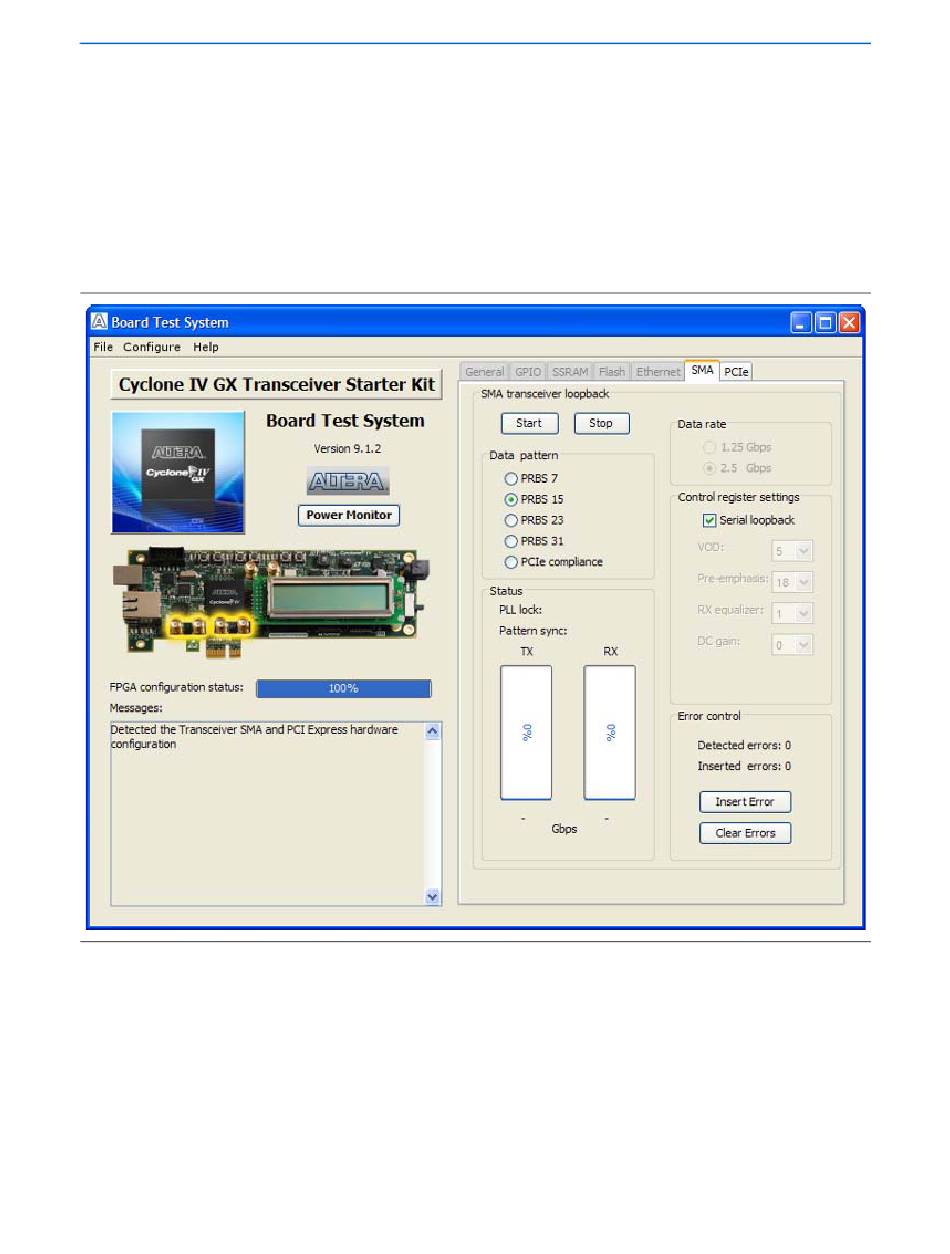

Figure 6–7. The SMA Tab
The following sections describe the controls on the SMA tab.

Start

The Start control initiates the loopback tests.

Stop

The Stop control terminates the loopback tests.
Cyclone IV GX Transceiver Starter Kit User Guide
Figure 6–7
"Board Rework Required" on page 6–4
shows the SMA tab.
to ensure your board is set up
Chapter 6: Board Test System
Using the Board Test System
