Summary of Contents for BK Medical 8809

  • Page 1 User Guide 8809 Linear Array Transducer English BB0911-N For Professional Users Only May 2019...
  • Page 2 BK Medical Customer Satisfaction Input from our customers helps us improve our products and services. Your opinions are important to us. You are always welcome to contact us via your BK Medical representative or by contacting us directly. © 2019 BK Medical...
  • Page 3: Table Of Contents

    Operation of Type 8809........
  • Page 5: Introduction

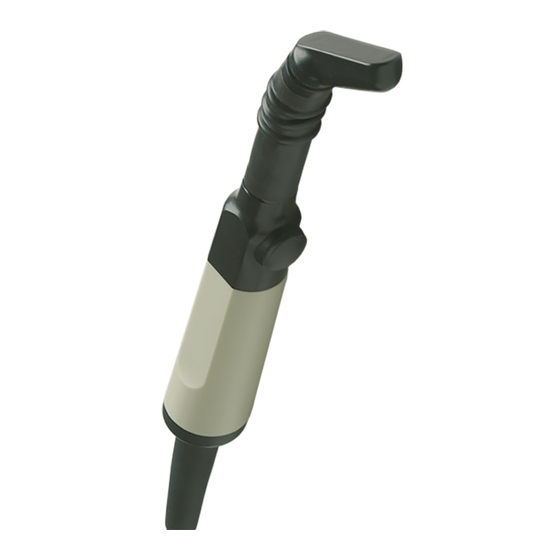

    Patient Population Patient population is adults, adolescents and children. Figure 1. Linear Array Transducer 8809 1. Use of 8809 in the central vascular or central nervous system is not licensed by Health Canada. 8809 User Guide (BB0911-N) Introduction...
  • Page 6: Imaging Plane

    Service and Repair WARNING SR-w1 Service and repair of BK Medical electromedical equipment must be carried out only by the manufacturer or its authorized representatives. BK Medical reserves the right to disclaim all responsibility, including but not limited to responsibility for the operating safety, reliability and performance of equipment serviced or repaired by other parties.
  • Page 7: Caring For The Transducer

    Care and Cleaning. Reprocessing To ensure the best results when using BK Medical equipment, it is important to maintain a strict cleaning routine. Complete details and procedures can be found in Care and Cleaning that accompanies this user guide.
  • Page 8: Changing Frequency

    The transducer has a control button that you can press to Start or Stop imaging (freeze frame). Press the button for more than one second to make a copy of the image. Each time the button is pressed, a “beep” is emitted. May 2019 8809 User Guide (BB0911-N)
  • Page 9: Changing Orientation

    60° 0° 90° Figure 3. Transducer 8809’s flexible tip The transducer should be checked before use for cracks or irregularities in the surface. It is important to check the black rubber cover on the transducer handle and the articulation joint on the flexible tip of the transducer to ensure that there are no defects in these areas.
  • Page 10: Disposal

    WARNING D-w1 For disposal of contaminated items such as transducer covers or needle guides or other disposable items, follow disposal control policies established for your office, department, or hospital. May 2019 8809 User Guide (BB0911-N)
