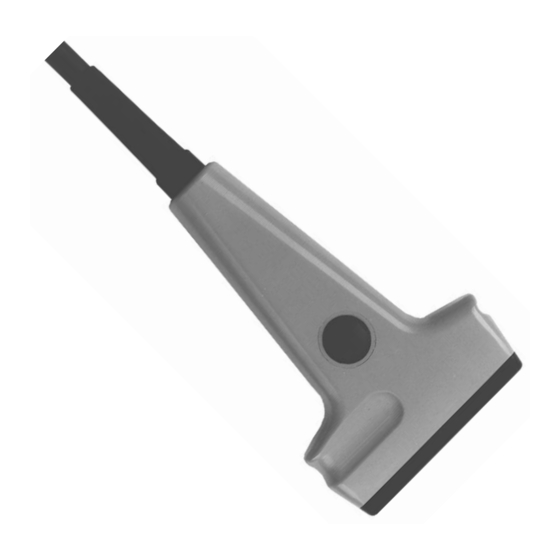

- Page 1 Linear Array Transducer User Guide Types 8560 and 8660 English BB0612-G August 2006...
- Page 2 If you receive an email message from us asking for your feedback, we hope you will be willing to answer some questions about your experience buying and using our products. Your opinions are important to us. You are of course always welcome to contact us via your BK Medical representative or by contacting us directly.
-
Page 3: Table Of Contents
Linear Array Transducer Types 8560 and 8660 Introduction Scanning Plane General Information Caring for the Transducer Cleaning and Disinfection Starting Scanning Connecting the Transducer Changing Frequency Using a Transducer Cover Using the Transducer Control Button Changing Orientation Puncture and Biopsy Facilities Puncture Guide Attachment UA1239 Performing Puncture and Biopsy Cleaning after Puncture and Biopsy... -
Page 5: Linear Array Transducer Types 8560 And
Linear Array Transducer Types 8560 and 8660 Linear Array Transducer Types 8560 and 8660 Introduction This is the user guide for Linear Array Transducer Types 8560 and 8660 and must be used together with Transducer Care, Cleaning & Safety which contains important safety information. -
Page 6: Caring For The Transducer
8560 and 8660 • Cleaning and Disinfection Acoustic output data and data about EMC (electromagnetic compatibility) for this transducer are on the Technical Data CD that accompanies this user guide. A full explanation of acoustic output is given in your scanner user guide. WARNING! If at any time the scanner malfunctions, or the image is severely distorted or degraded, or you suspect in any way that the scanner is not functioning correctly:... -
Page 7: Starting Scanning
8560 and 8660 • Starting Scanning Connecting the Transducer WARNING! Be sure that all plugs and terminals are absolutely dry before connecting them. The transducer is connected to the scanner using the array Transducer Socket on the scanner front panel. To connect, the transducer plug’s locking lever should first be in a horizontal position. -
Page 8: Changing Orientation
8560 and 8660 • Puncture and Biopsy Facilities Changing Orientation To change the orientation of the image on the monitor, refer to the applicable scanner user guide for detailed instructions. Puncture and Biopsy Facilities Puncture and biopsy are possible with Types 8560 and 8660. The puncture attachments are illustrated in the following pages with a brief description of their use and operating instructions. - Page 9 8560 and 8660 • Puncture and Biopsy Facilities Fig. 4. Mounting the puncture attachment UA1239 (shown without cover) To alter the angle of the needle-guide holder: 1. Loosen the adjustable screw by turning it one quarter revolution counter-clockwise. 2. Select the desired angle (60°; 45°; 30°). 3.
-
Page 10: Performing Puncture And Biopsy
8560 and 8660 • Performing Puncture and Biopsy Performing Puncture and Biopsy WARNING! It is essential for the patient’s safety that only the correct puncture attachments, as described in this guide, are used. Never use unauthorized combinations of transducers and puncture attachments or other manufacturers puncture attachments. -
Page 11: Cleaning After Puncture And Biopsy
8560 and 8660 • Disposal Fig. 5. Puncture lines for UA 1239 Cleaning after Puncture and Biopsy If biological materials are allowed to dry on the transducer or puncture attachments, disinfection and sterilization processes may not be effective. Therefore, you must clean puncture attachments and transducers immediately after use.
