- Page 1 Convex Array Transducer User Guide 8803 English BB0335-J August 2007...
- Page 2 WORLD HEADQUARTERS Mileparken 34 DK-2730 Herlev Denmark Tel.:+45 44528100 / Fax:+45 44528199 www.bkmed.com Email: info@bkmed.dk B-K Medical Customer Satisfaction Input from our customers helps us improve our products and services. As part of our customer satisfaction program, we contact a sample of our customers a few months after they receive their orders.
-
Page 3: Table Of Contents
Convex Array Transducer Type 8803 Introduction Scanning Plane General Information Caring for the Transducer Cleaning and Disinfection Starting Scanning Connecting the Transducer Changing Frequency Using a Transducer Cover Using the Transducer Control Button Changing Orientation Puncture Facilities UA1250 Performing Puncture and Biopsy Cleaning after Puncture and Biopsy Disposal BB0335-J... -
Page 5: Convex Array Transducer Type

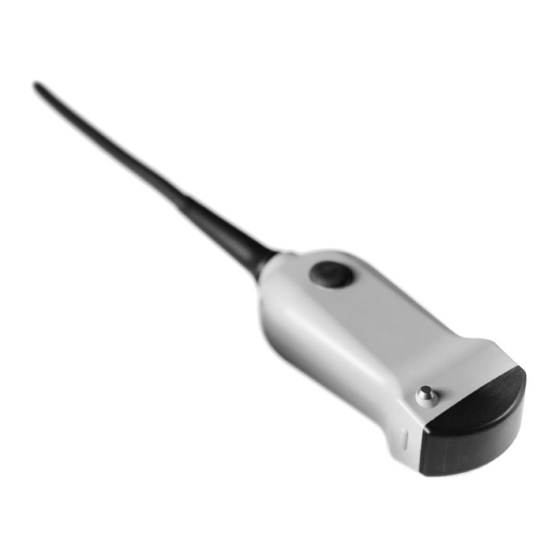

Convex Array Transducer Type 8803 Convex Array Transducer Type 8803 Introduction This is the user guide for Convex Array Transducer Type 8803 and must be used together with Transducer Care, Cleaning & Safety which contains important safety information. 8803 is an abdominal transducer suitable for intercostal examinations. Fig. -
Page 6: Caring For The Transducer
8803 • Cleaning and Disinfection Acoustic output data and data about EMC (electromagnetic compatibility) for this transducer are on the Technical Data CD that accompanies this user guide. A full explanation of acoustic output is given in your scanner user guide. WARNING If at any time the scanner malfunctions, or the image is severely distorted or degraded, or you suspect in any way that the scanner is not functioning correctly:... -
Page 7: Connecting The Transducer
8803 • Starting Scanning Connecting the Transducer WARNING Keep all plugs and sockets absolutely dry at all times. The transducer is connected to the scanner using the array Transducer Socket on the scanner. To connect, the transducer plug’s locking lever should first be in a horizontal position. -
Page 8: Changing Orientation
8803 • Puncture Facilities Changing Orientation To change the orientation of the image on the monitor, refer to the applicable scanner user guide for instructions. Puncture Facilities Puncture and biopsy is possible with Type 8803. The puncture attachment is illustrated in the following pages with a brief description of its use and operating instructions. -
Page 9: Performing Puncture And Biopsy
8803 • Performing Puncture and Biopsy The distance from the guide channel entrance of the puncture attachment to the first dot on the scan image puncture line is 52mm. The distance between the dots is 10mm, see Fig. 5. for details. Fig. -
Page 10: Cleaning After Puncture And Biopsy
8803 • Performing Puncture and Biopsy If more than one puncture line is available, refer to the applicable scanner user guide for instructions on how to change which one appears. Move the transducer until the puncture line transects the target. Insert the needle and monitor it as it moves along the puncture line to the target. -
Page 11: Disposal
8803 • Disposal Disposal When the transducer is scrapped at the end of its life, national rules for the relevant material in each individual land must be followed. Within the EU, when you discard the transducer, you must send it to appropriate facilities for recovery and recycling. See the applicable scanner user guide for further details WARNING For contaminated disposals such as transducer covers or needle guides, follow disposal con-...
