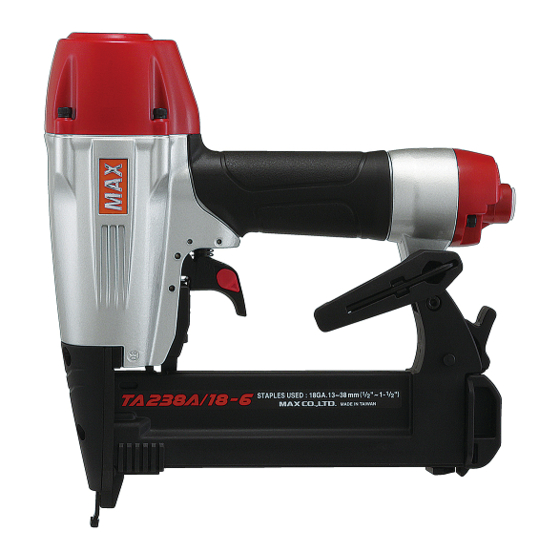

TA238A/18-6
(CE)
PNEUMATIC STAPLER
OPERATING and MAINTENANCE MANUAL
ENGLISH
BEFORE USING THIS TOOL, STUDY THIS MANUAL TO ENSURE SAFETY WARNING AND
INSTRUCTIONS.
KEEP THESE INSTRUCTIONS WITH THE TOOL FOR FUTURE REFERENCE.
WARNING

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TA238A/18-6 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Max TA238A/18-6

  • Page 1 TA238A/18-6 (CE) PNEUMATIC STAPLER OPERATING and MAINTENANCE MANUAL ENGLISH BEFORE USING THIS TOOL, STUDY THIS MANUAL TO ENSURE SAFETY WARNING AND INSTRUCTIONS. KEEP THESE INSTRUCTIONS WITH THE TOOL FOR FUTURE REFERENCE. WARNING...
  • Page 2: Safety Instructions

    DEFINITIONS OF SIGNAL WORDS WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. NOTE: Emphasizes essential information.
  • Page 3 DO NOT USE A WRONG FITTINGS The connector on the tool must not hold pressure when air supply is disconnected. If a wrong fitting is used, the tool can remain charged with air after disconnecting and thus will be able to drive a fastener even after the air line is disconnected, possibly causing injury.
  • Page 4  Do not use the tool without Safety Warning label. this reason, always remove all fasteners remaining in the  Do not modify the tool from original design or function magazine after completion of the operation. without approval by MAX CO., LTD.
  • Page 5: Specifications And Tech- Nical Data

    ------- LpA, 1s, d 79.7 dB 8 Click Lever These values are determined and documented in accor- 9 Warning Label dance to EN12549 : 1999. (back side) 10 Outlet TOOL SPECIFICATIONS PRODUCT NO. TA238A/18-6 HEIGHT 241.5mm (9-1/2") WIDTH 64mm (2-1/2") LENGTH 231mm (9-1/8") VIBRATION WEIGHT 1.2kg (2.71lbs)
  • Page 6 HOSES: Hose has a min. ID of 6 mm (1/4") and max. length of handling of the tool. For these reasons, safety glasses or no more than 5 meters (17").
  • Page 7 STAPLE LOADING TEST OPERATION Adjust the air pressure at 5 bar (70p.s.i.) and connect the air supply. Slider Unit Without touching the trigger, depress the contact arm against the work-piece. Pull the trigger (The tool must fire the fastener.) With the tool off the work-piece, pull the trigger. Click Lever Then depress the connect arm against the work-piece.
  • Page 8 CONTACT TRIP The common operating procedure on "Contact Trip" tools is for the operator to contact the work to actuate the trip mechanism while keeping the trigger pulled, thus driving a fastener each time the work is contacted. All pneumatic tools are subject to recoil when driving fasteners. The tool may bounce, releasing the trip, and if unintentionally allowed to recontact the work surface with the trigger still actu- ated (finger still holding trigger pulled) an unwanted second...
  • Page 9: Maintenance

    Reinstall the driver guide and the front cover the set of staples and bring back the slider unit. The troubleshooting and/or repairs shall be carried out only by the MAX CO., LTD. authorised distributors or by other special- ists. WARNING ALWAYS-disconnect air supply before clearing jammed staples.
  • Page 10  The specifications and design of the products in this manual will be subject to change without ad- vance notice due to our continuous efforts to improve the quality of our products. Camerastraat 19 1322 BB Almere The Netherlands Phone: +31-36-546-9669 FAX: +31-36-536-3985 www.max-ltd.co.jp/int/ (GLOBAL Site) www.max-europe.com (EUROPE Site) 4008644 101215-00/02...
