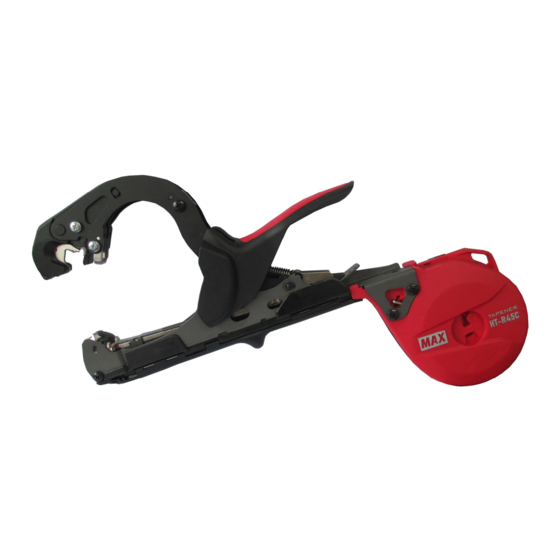

HT-R45C
Tapener
INSTRUCTION MANUAL
BEFORE USING THIS TOOL, STUDY THIS MANUAL TO ENSURE
SAFETY WARNING AND INSTRUCTIONS.
KEEP THESE INSTRUCTIONS WITH THE TOOL FOR FUTURE
REFERENCE.
WARNING
JAN 2022

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HT-R45C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Max HT-R45C

Summary of Contents for Max HT-R45C

  • Page 1 HT-R45C Tapener INSTRUCTION MANUAL BEFORE USING THIS TOOL, STUDY THIS MANUAL TO ENSURE SAFETY WARNING AND INSTRUCTIONS. KEEP THESE INSTRUCTIONS WITH THE TOOL FOR FUTURE REFERENCE. WARNING JAN 2022...

  • Page 2: Specifications

    MAX TAPE-10 WHITE, 0.1mm T x 11mm W x 40m L MAX TAPE-15 GREEN, 0.15mm T x 11mm W x 26m L MAX TAPE-25 RED, 0.25mm T x 11mm W x 16m L MAX TAPE-200R GREEN, 0.15mm T x 11mm W x 26m L (photolysis) Weight 430 grams Bundling Limit Maximum 45mmᶲ...

  • Page 3: Parts List

    STRAIGHT PIN 1716 HT11761 PUSHER HT11610 SPRING GUIDE ROD KK29131 COMPRESSION SPRING 9131 HT11609 STAPLE COVER TC90045 MAX CUTTERFOR TAPENER SERIES KK34099 TORSION SPRING 4099 HT70070 TAPE GUIDE S UNIT FF41740 STEP PIN 1740 HT11763 TAPE GUIDE SUPPORT S HT11781...

  • Page 4: Parts Diagram

    PARTS DIAGRAM January 31, 2022...

  • Page 5: How To Use

    604E type staples. Caution  Be sure to use MAX staples and MAX tape.  NEVER place your fingers near the front end of the magazine unit because there is a serrated blade and the staple ejection port nearby.
  • Page 6 How to Pull Out Tape 1. Squeeze the handle so that the tape catch will catch the tape end deep enough. 2. Release the handle as explained. The tape will pull out. 3. If the tape catch unit does not catch the tape end when you squeeze the handle, please squeeze the handle harder several more times, and the tape catch will return to its normal position (this is not a trouble with the tapener).
  • Page 7 How to Change Blade Preparation 1. Do not remove the cap from the blade. 2. Remove the tape and staples. 3. Open the arm and tape holder cover, 4. Hold the main body with one hand. Change the Blade 1. Press the button and pull out the old cutting blade. 2.
  • Page 8 How to Replace Serrated Blades 1. Use fine pliers to remove old blade. 2. Insert new blade (TC90045) using blade holder supplied with blades. 3. Keep pushing until blade in secured by red button. How to Remove Jammed Staples While the pusher unit is open, remove any loaded staples, and then remove the stuck staple with a small screwdriver.

  • Page 9: After Use

    AFTER USE In order to maintain proper performance, apply oil to the specified locations after each use. January 31, 2022...
