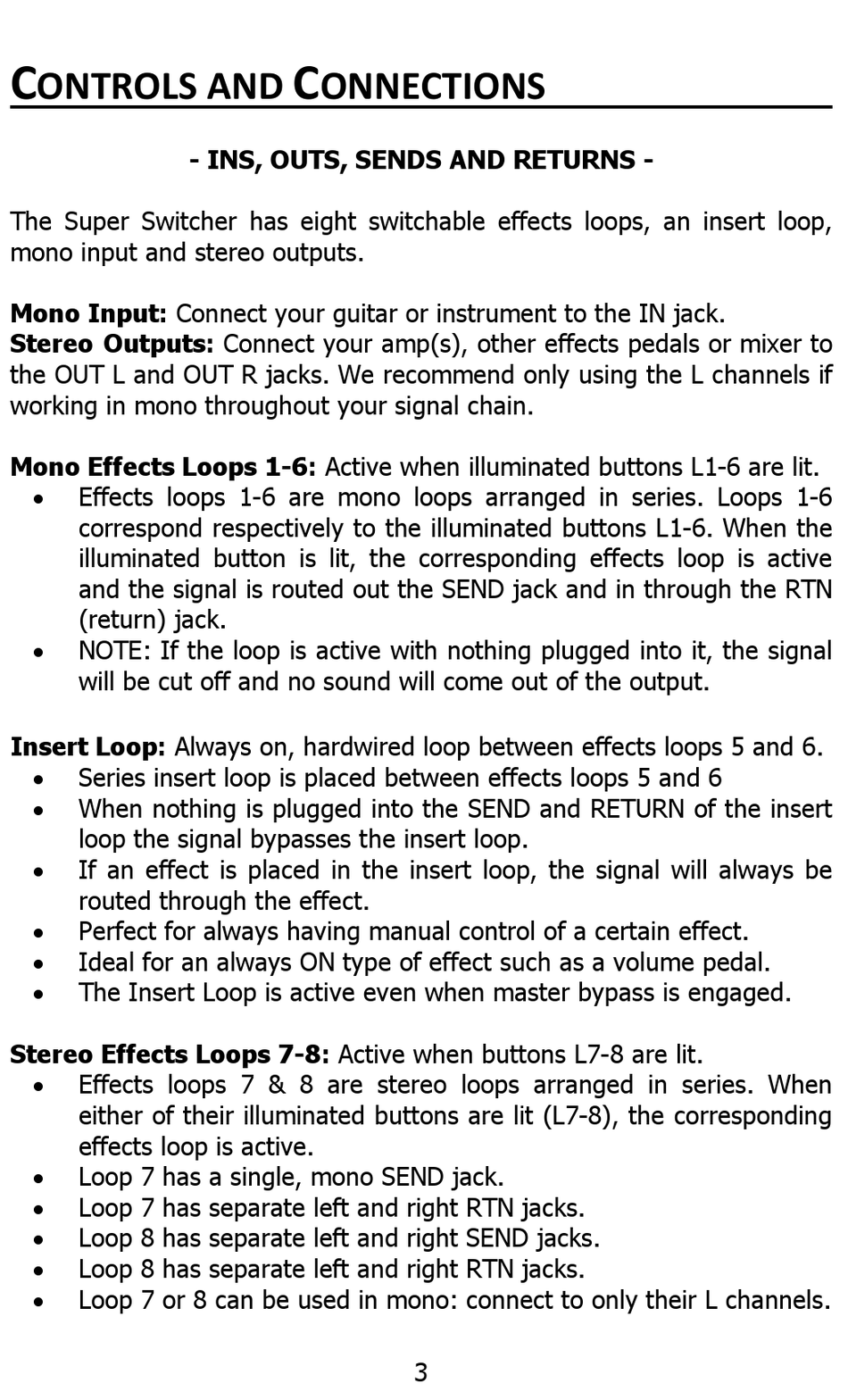

C
ONTROLS AND
The Super Switcher has eight switchable effects loops, an insert loop,
mono input and stereo outputs.
Mono Input: Connect your guitar or instrument to the IN jack.
Stereo Outputs: Connect your amp(s), other effects pedals or mixer to
the OUT L and OUT R jacks. We recommend only using the L channels if
working in mono throughout your signal chain.
Mono Effects Loops 1-6: Active when illuminated buttons L1-6 are lit.
 Effects loops 1-6 are mono loops arranged in series. Loops 1-6
correspond respectively to the illuminated buttons L1-6. When the
illuminated button is lit, the corresponding effects loop is active
and the signal is routed out the SEND jack and in through the RTN
(return) jack.
 NOTE: If the loop is active with nothing plugged into it, the signal
will be cut off and no sound will come out of the output.
Insert Loop: Always on, hardwired loop between effects loops 5 and 6.
 Series insert loop is placed between effects loops 5 and 6
 When nothing is plugged into the SEND and RETURN of the insert
loop the signal bypasses the insert loop.

If an effect is placed in the insert loop, the signal will always be
routed through the effect.

Perfect for always having manual control of a certain effect.
 Ideal for an always ON type of effect such as a volume pedal.
 The Insert Loop is active even when master bypass is engaged.
Stereo Effects Loops 7-8: Active when buttons L7-8 are lit.
 Effects loops 7 & 8 are stereo loops arranged in series. When
either of their illuminated buttons are lit (L7-8), the corresponding
effects loop is active.
 Loop 7 has a single, mono SEND jack.
 Loop 7 has separate left and right RTN jacks.
 Loop 8 has separate left and right SEND jacks.
 Loop 8 has separate left and right RTN jacks.
 Loop 7 or 8 can be used in mono: connect to only their L channels.
C
ONNECTIONS

- INS, OUTS, SENDS AND RETURNS -

3
