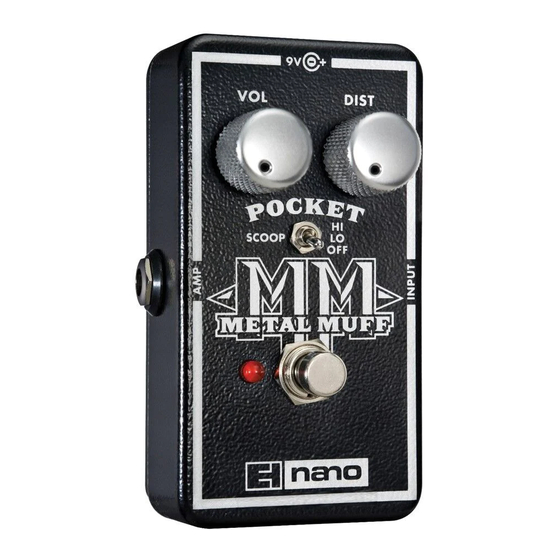

POCKET METAL MUFF
- DESCRIPTION -
Congratulations on your purchase of the POCKET METAL MUFF! You now
have the instant classic thrashing tone of the Metal Muff in the palm of your
hand.
- CONTROLS -
DISTORTION CONTROL – adjusts the amount of input gain.
VOLUME CONTROL – sets the output level.
SCOOP TOGGLE SWITCH – provides two settings of attenuation in the
middle frequency range. In the up position, the mid attenuation is high. In
the middle position the mid attenuation is low. In the down position there is
no mid frequency attenuation.
FOOTSWITCH – Selects whether the POCKET METAL MUFF is engaged or
bypassed. The corresponding LED will be lit when the pedal is engaged, and
dark when bypassed.
INPUT Jack – This ¼" jack is the audio input to the POCKET METAL MUFF.
OUTPUT Jack – This ¼" jack is the audio output from the POCKET METAL
MUFF. When the POCKET METAL MUFF is in Bypass mode, the OUTPUT jack
is connected to the INPUT jack through a buffer.
- OPERATION AND WARNINGS -
Power, from the internal 9-volt battery or external battery eliminator, is
activated by plugging into the input. The input cable should be removed
when the unit is not in use to avoid running down the battery. The input
impedance presented at the Input Jack is 1Mohm. The output impedance at
the Output Jack is 600 ohms.
