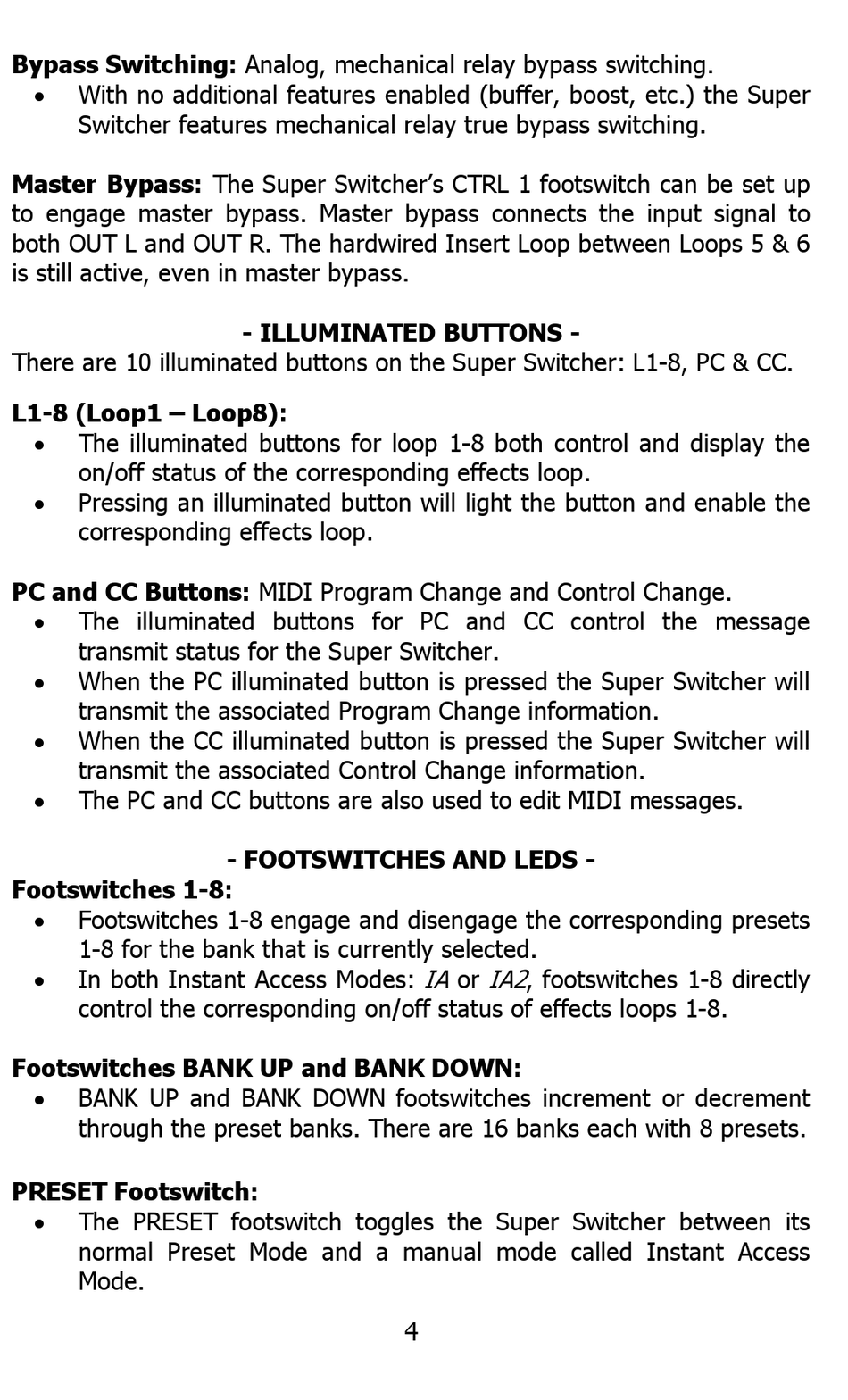

Bypass Switching: Analog, mechanical relay bypass switching.
 With no additional features enabled (buffer, boost, etc.) the Super
Switcher features mechanical relay true bypass switching.
Master Bypass: The Super Switcher's CTRL 1 footswitch can be set up
to engage master bypass. Master bypass connects the input signal to
both OUT L and OUT R. The hardwired Insert Loop between Loops 5 & 6
is still active, even in master bypass.
There are 10 illuminated buttons on the Super Switcher: L1-8, PC & CC.
L1-8 (Loop1 – Loop8):
 The illuminated buttons for loop 1-8 both control and display the
on/off status of the corresponding effects loop.
 Pressing an illuminated button will light the button and enable the
corresponding effects loop.
PC and CC Buttons: MIDI Program Change and Control Change.
 The illuminated buttons for PC and CC control the message
transmit status for the Super Switcher.
 When the PC illuminated button is pressed the Super Switcher will
transmit the associated Program Change information.
 When the CC illuminated button is pressed the Super Switcher will
transmit the associated Control Change information.
 The PC and CC buttons are also used to edit MIDI messages.
Footswitches 1-8:
 Footswitches 1-8 engage and disengage the corresponding presets
1-8 for the bank that is currently selected.
 In both Instant Access Modes:
control the corresponding on/off status of effects loops 1-8.
Footswitches BANK UP and BANK DOWN:
 BANK UP and BANK DOWN footswitches increment or decrement
through the preset banks. There are 16 banks each with 8 presets.
PRESET Footswitch:
 The PRESET footswitch toggles the Super Switcher between its
normal Preset Mode and a manual mode called Instant Access
Mode.

- ILLUMINATED BUTTONS -

- FOOTSWITCHES AND LEDS -

IA IA2
or , footswitches 1-8 directly
