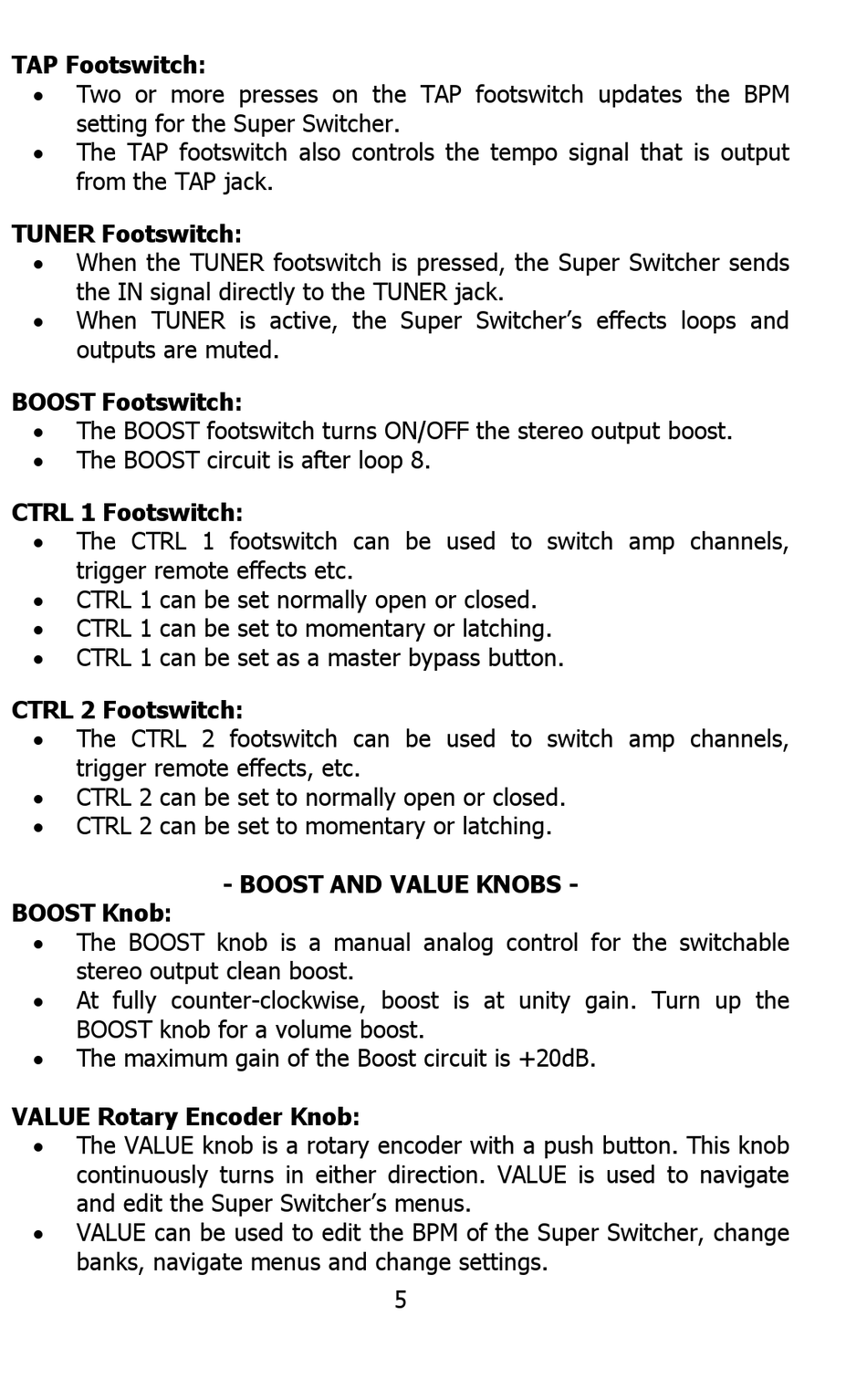

TAP Footswitch:
 Two or more presses on the TAP footswitch updates the BPM
setting for the Super Switcher.
 The TAP footswitch also controls the tempo signal that is output
from the TAP jack.
TUNER Footswitch:

When the TUNER footswitch is pressed, the Super Switcher sends
the IN signal directly to the TUNER jack.
 When TUNER is active, the Super Switcher's effects loops and
outputs are muted.
BOOST Footswitch:
 The BOOST footswitch turns ON/OFF the stereo output boost.
 The BOOST circuit is after loop 8.
CTRL 1 Footswitch:
 The CTRL 1 footswitch can be used to switch amp channels,
trigger remote effects etc.
 CTRL 1 can be set normally open or closed.
 CTRL 1 can be set to momentary or latching.

CTRL 1 can be set as a master bypass button.
CTRL 2 Footswitch:
 The CTRL 2 footswitch can be used to switch amp channels,
trigger remote effects, etc.
 CTRL 2 can be set to normally open or closed.
 CTRL 2 can be set to momentary or latching.
BOOST Knob:
 The BOOST knob is a manual analog control for the switchable
stereo output clean boost.
 At fully counter-clockwise, boost is at unity gain. Turn up the
BOOST knob for a volume boost.
 The maximum gain of the Boost circuit is +20dB.
VALUE Rotary Encoder Knob:
 The VALUE knob is a rotary encoder with a push button. This knob
continuously turns in either direction. VALUE is used to navigate
and edit the Super Switcher's menus.
 VALUE can be used to edit the BPM of the Super Switcher, change
banks, navigate menus and change settings.

- BOOST AND VALUE KNOBS -

5
