Electro-Harmonix SPRUCE GOOSE OVERDRIVE Manual

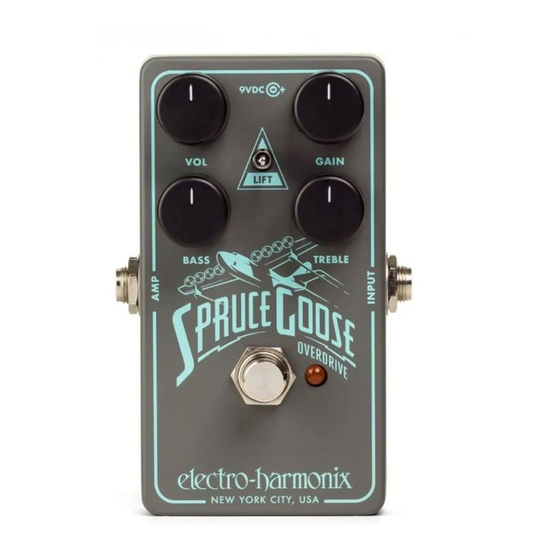

Welcome to the Electro-Harmonix Spruce Goose, a compact,

natural overdrive with a wide range of tonal and gain settings.

Sculpt your sound with separate TREBLE and BASS EQ knobs.

Dial-in just the right amount of dirt, from barely there to over-

the-top, using the GAIN knob and LIFT switch. The Spruce

Goose also features mechanical relay true bypass on a soft

footswitch and optional 9V battery power.

Connect your guitar to the INPUT jack of the Spruce Goose and the AMP

jack to your amp's input. Press the footswitch to ensure the LED is lit.

Your Spruce Goose is now ready to play.

A good starting point is to set the knobs to their 12 o'clock positions, and

then adjust the LIFT toggle switch for the right amount of break-up. Further

tweak the knobs to dial-in your perfect setting.

Voltage: 9VDC

This device may be powered with an Electro-Harmonix 9.6DC-200, MOP-D10, or S8 power supply. Use of the

wrong adapter or a plug with the wrong polarity may damage the device and void the warranty. Do not exceed

12VDC on the power plug. Power supplies rated for less than 50mA can cause the device to act unreliably.

Operating Instructions

POWER SUPPY REQUIREMENTS:

Current: 20mA

Polarity: Center-Negative

Battery: 9V

Table of Contents

Do you have a question about the SPRUCE GOOSE OVERDRIVE and is the answer not in the manual?

Page 1 Polarity: Center-Negative Battery: 9V This device may be powered with an Electro-Harmonix 9.6DC-200, MOP-D10, or S8 power supply. Use of the wrong adapter or a plug with the wrong polarity may damage the device and void the warranty. Do not exceed...
Page 2 Controls and Connections 1. GAIN Knob Adjusts the amount of gain and distortion. As you turn this knob clock- wise, your signal gets louder and more saturated. 2. TREBLE Knob Controls the high frequency EQ of your signal. The higher the setting, the brighter the output signal.
Page 3 Spruce Goose employs True Bypass with a mechanical relay. The footswitch includes a momentary action when you press and hold the switch for more than half a second. The momentary footswitch action may also be disabled, see the section Footswitch Latching and Momentary Action. 7.
Page 4 WARRANTY INFORMATION Please register online at www.ehx.com/product-registration or complete and return the enclosed warranty card within 10 days of purchase. Electro-Harmonix will repair or replace, at its discretion, a product that fails to operate due to defects in materials or workmanship for a period of one year from date of purchase. This applies only to original purchasers who have bought their product from an authorized Electro-Har- monix retailer.
