Electro-Harmonix SLAMMI Quick Start Manual

- WARRANTY INFORMATION -
Please register online at http://www.ehx.com/product-registration or complete and return the enclosed
warranty card within 10 days of purchase. Electro-Harmonix will repair or replace, at its discretion, a product
that fails to operate due to defects in materials or workmanship for a period of one year from date of
purchase. This applies only to original purchasers who have bought their product from an authorized Electro-
Harmonix retailer. Repaired or replaced units will then be warranted for the unexpired portion of the original
warranty term.
If you should need to return your unit for service within the warranty period, please contact the appropriate
office listed below. Customers outside the regions listed below, please contact EHX Customer Service for
information on warranty repairs at info@ehx.com or +1-718-937-8300. USA and Canadian customers: please
obtain a Return Authorization Number (RA#) from EHX Customer Service before returning your product.
Include with your returned unit: a written description of the problem as well as your name, address,
telephone number, e-mail address, and RA#; and a copy of your receipt clearly showing the purchase date.
United States & Canada
EHX CUSTOMER SERVICE
ELECTRO-HARMONIX
c/o NEW SENSOR CORP.
55-01 2ND STREET
LONG ISLAND CITY, NY 11101
Tel: 718-937-8300
Email: info@ehx.com
Europe
JOHN WILLIAMS
ELECTRO-HARMONIX UK
13 CWMDONKIN TERRACE
SWANSEA SA2 0RQ
UNITED KINGDOM
Tel: +44 179 247 3258
Email: electroharmonixuk@virginmedia.com
This warranty gives a purchaser specific legal rights. A purchaser may have even greater rights depending
upon the laws of the jurisdiction within which the product was purchased.
To hear demos on all EHX pedals visit us on the web at www.ehx.com
Email us at info@ehx.com
- FCC COMPLIANCE -
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation. If the device is not installed and used in
accordance with the instructions, it may cause harmful interference to radio communications and void the
user's authority to guarantee the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device,
Note:
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and receiver.
•
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
•
Consult the dealer or an experienced radio/TV technician for help.
Modifications not expressly approved by the manufacturer could void the user's authority to operate the
equipment under FCC rules.
SLAMMI
POLYPHONIC PITCH-SHIFTER/HARMONY PEDAL

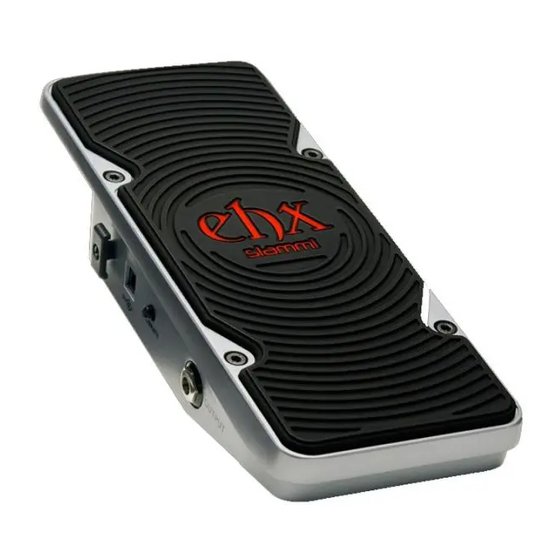

Congratulations on your purchase of the Electro-Harmonix Slammi, a foot controlled
polyphonic pitch-shifter/harmony pedal. The Slammi smoothly sweeps the pitch of
the guitar signal either up or down without using any moving parts, it does not use a
potentiometer, optics or magnetism. The result is a responsive pedal that allows
precise control over a clean, glitch free, polyphonic pitch-shifting algorithm. To top it
off the Slammi can create harmonized intervals by mixing your dry signal with the
effect using the adjustable DRY VOL control.
GETTING STARTED
Plug your guitar into the INPUT jack; connect your amp to the OUTPUT jack. Tilt the
Slammi forward to light the EHX logo in the center of the pedal. Your Slammi is ready
to go! Please note: as long as a plug is inserted into the INPUT jack, a drain is
placed on the 9V battery inside the Slammi. It is recommended that you disconnect
the INPUT jack when the Slammi is not in use to extend battery life.
MAX BEND Control
The Max Bend control, located on the input side of the Slammi, acts as an 11-way
switch selecting the maximum bend or maximum interval of chromatic transposition.
The chart below shows where each maximum bend setting is located on the
thumbwheel, the odd numbers are not actually on the control:
0 1 2 3 4
Detune ½ Major Major Perfect
Step 2nd 3rd 4th
5 6 7 8 9
Perfect Major Minor 1 2
5th 6th 7th Oct Oct
10
3
Oct/
Dive
