Electro-Harmonix 8-STEP PROGRAM FOOT CONTROLLER Quick Start Manual

This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation. If the device is not installed and used in accordance with
the instructions, it may cause harmful interference to radio communications and void
the user's authority to guarantee the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and receiver.
•
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
•
Consult the dealer or an experienced radio/TV technician for help.
Modifications not expressly approved by the manufacturer could void the user's
authority to operate the equipment under FCC rules.

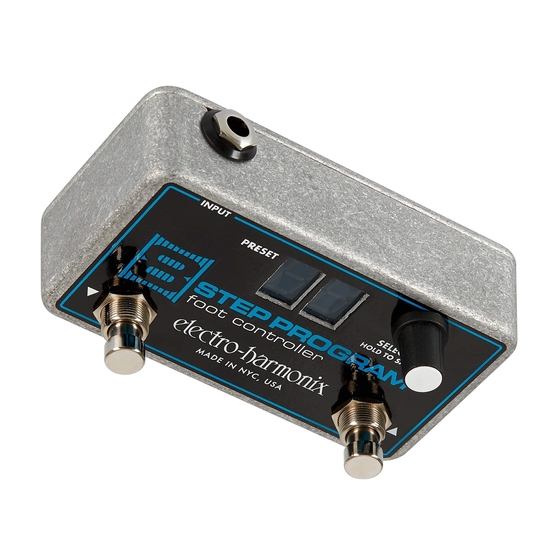

8-STEP PROGRAM
FOOT CONTROLLER
Remote Preset Controller for 8-STEP PROGRAM
Congratulations on your purchase of the Electro-Harmonix 8-STEP PROGRAM
FOOT CONTROLLER! When connected to your 8-STEP main unit, the Foot
Controller gives you access to a total of 100 presets, allowing you to load and save
your favorite 8-STEP settings. Every slider position and mode setting is stored when
you save a preset and faithfully recalled when you load the preset at a later date. If
an expression pedal is connected to the 8-STEP it will also store its position at the
time of saving.
- GETTING STARTED -
Connect the 8-STEP Foot Controller (8-STEP FC) to your 8-STEP main unit using a
standard 1/4" mono instrument cable. Plug into the jack labeled FC on the 8-STEP.
The other end of the cable should be inserted into the 8-STEP FC's jack labeled
INPUT. As long as the 8-STEP main unit is powered up, at least one digit on the 8-
STEP FC will light up indicating it is ready for use.
- DISPLAY AND CONTROLS -
2-DIGIT LED DISPLAY – The LED digits display the currently selected or loaded
preset number. The numbers range from 0 to 99. When a preset is loaded, the
rightmost decimal point on the 8-STEP FC lights up indicating a PRESET is active; the
decimal LED on the 8-STEP main unit also lights. If the rightmost decimal point is not
lit, than a PRESET is not loaded.
BLINKING DECIMAL POINT – When a preset is loaded but a parameter has been
altered since the last load, the right decimal LED on the 8-STEP Foot Controller blinks
continuously to indicate a change has occurred to the preset. The decimal LED on the
8-STEP main unit also blinks in this scenario. If you restore the changed setting, the
blinking stops.
BLINKING DIGITS – If you load a preset, then turn the Foot Controller's SELECT
knob to a different number, the digits on the Foot Controller blink to indicate that a
preset is loaded but it is not the preset number currently displayed.
EMPTY PRESET INDICATION – When the displayed preset number does not
contain a preset, the middle decimal point lights up indicating the preset number is
empty. For example, if preset 21 is empty, the 8-STEP FC displays (2.1). Once you
save a preset to 21, the display changes to either (21) when no preset is loaded or
(21.) if the preset is loaded.
