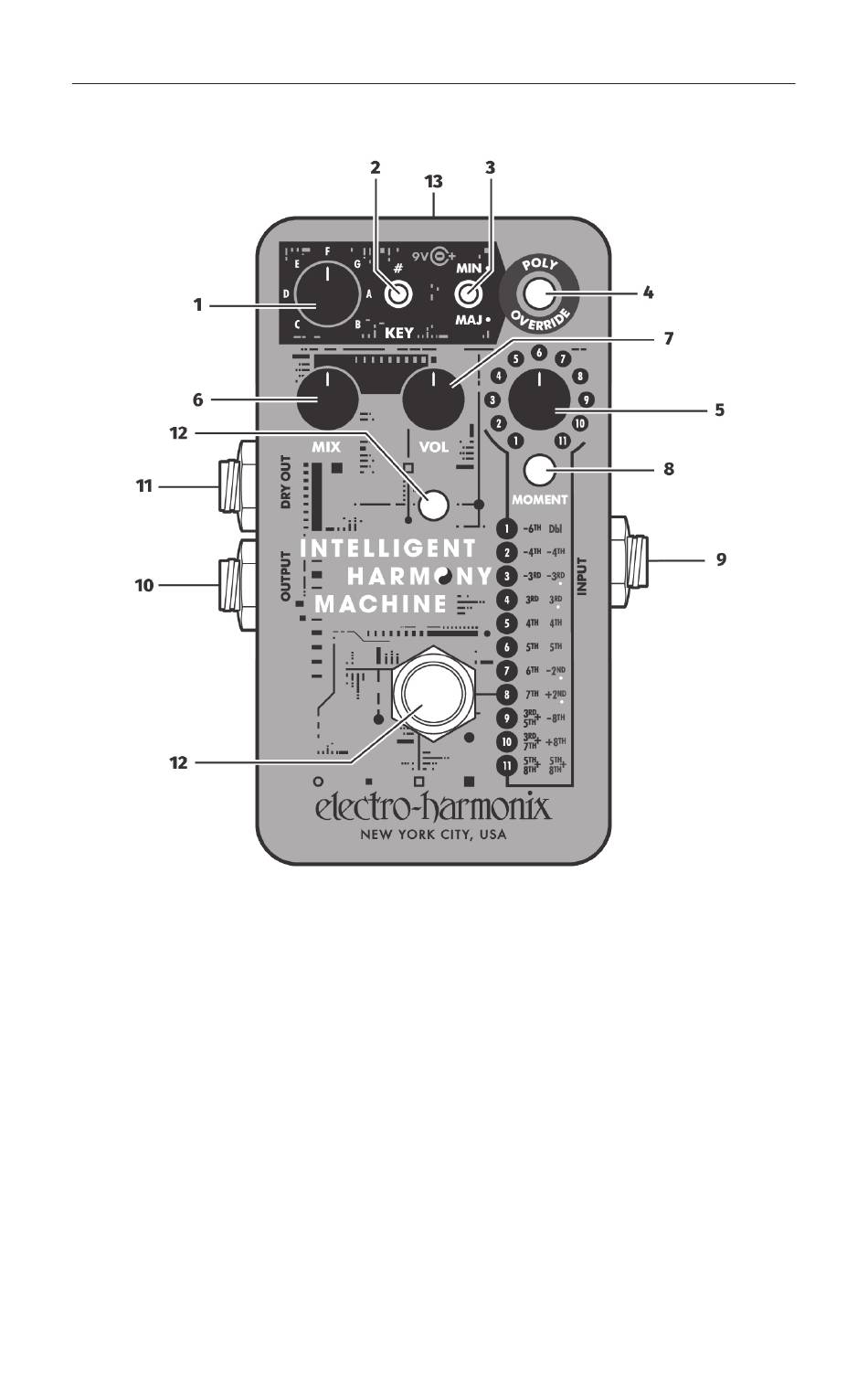

Controls and Connections

1. KEY Knob This seven-position rotary switch, in conjunction with the toggle
switch to its right, sets the key the IHM is in while in Intelligent Mode. This
knob has no effect while in Polyphonic Override Mode.
2. KEY Toggle Switch This switch works in conjunction with the knob to its left
to set the key of the IHM. With the switch in its upwards position the key is set
to the sharp variation of the key set by the KEY knob. With this switch in its
downwards position, the key is set to the natural variation of the key set by
the KEY knob. This switch has no effect while in Polyphonic Override Mode.
3. MAJ / MIN Toggle Switch In Intelligent Mode this switch sets whether the
key (set by the KEY knob and switch) is major or minor. In Polyphonic Override
Mode this switch can be used for intervals 3, 4, 7, & 8 (3rds and 2nds) to set
whether the pitch-shift interval is a major 3rd/2nd or a minor 3rd/2nd.
