Debug management
5.3.3

Internal pull-up and pull-down resistors on JTAG pins

The JTAG input pins must not be floating since they are directly connected to flip-flops which
control the debug mode features. Special care must be taken with the SWCLK/TCK pin that
is directly connected to the clock of some of these flip-flops.
To avoid any uncontrolled I/O levels, the STM32L1xxx embeds internal pull-up and pull-
down resistors on the JTAG input pins:
● JNTRST: internal pull-up
●
JTDI: internal pull-up
● JTMS/SWDIO: internal pull-up
●
TCK/SWCLK: internal pull-down
Once a JTAG I/O is released by the user software, the GPIO controller takes control again.
The reset states of the GPIO control registers put the I/Os in the following equivalent states:
● JNTRST: input pull-up
●
JTDI: input pull-up
● JTMS/SWDIO: input pull-up
●
JTCK/SWCLK: input pull-down
● JTDO: input floating
The software can then use these I/Os as standard GPIOs.
Note: The JTAG IEEE standard recommends to add pull-up resistors on TDI, TMS and nTRST
but, there is no special recommendation for TCK. However, for the STM32L1xxx, an
integrated pull-down resistor is used for JTCK.
Having embedded pull-up and pull-down resistors removes the need to add external
resistors.
5.3.4

SWJ debug port connection with standard JTAG connector

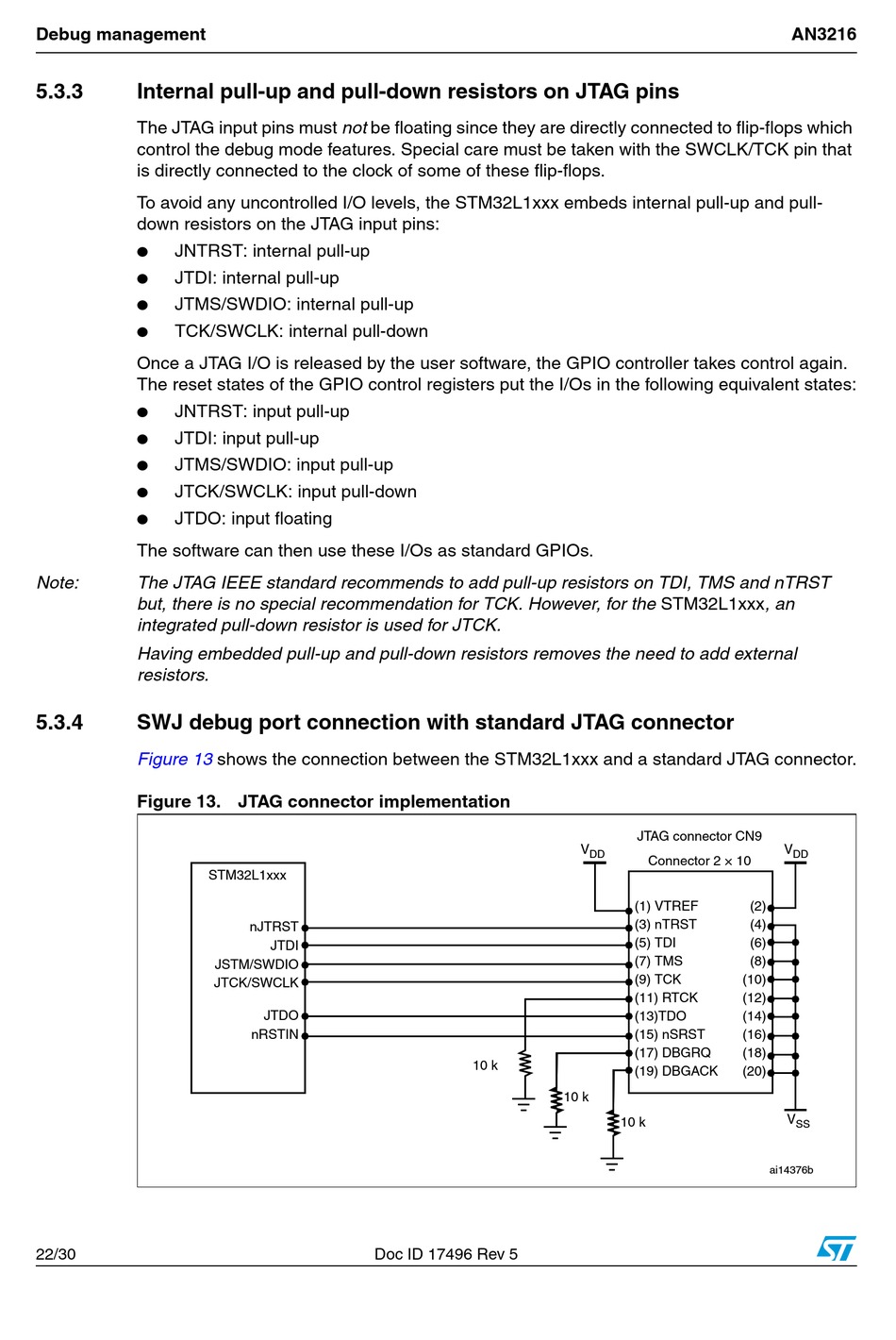

Figure 13

Figure 13. JTAG connector implementation

22/30
shows the connection between the STM32L1xxx and a standard JTAG connector.
