the product level is within 3" of the programmed PUMP HEIGHT measurement, an alarm on
the tank gauge will indicate DRY TANK. When a delivery is made, the pump controller will
automatically be reset.
NOTE: Because the TS-TPI resets the pump controller after a delivery is made, the Auto Restart
feature on the pump controller must be disabled.
• Clogged Intake Indication: The combination of a pump controller Under-load condition and
a tank level that is at least 3" greater than the programmed PUMP HEIGHT measurement
will cause a CLOGGED INTAKE indication. Because the tank gauge is able to confirm that
there is fuel in the tank, this alarm indicates a motor intake that is being blocked by a
foreign object. Hence the pump stops and start for 3 times to try to remove the foreign
object.
• Pump in Water Indication: If the tank gauge records a water level that is within 2" of the
programmed PUMP HEIGHT measurement, the pump will become disabled. The tank gauge
will indicate a PUMP IN WATER alarm.

TPI Setup

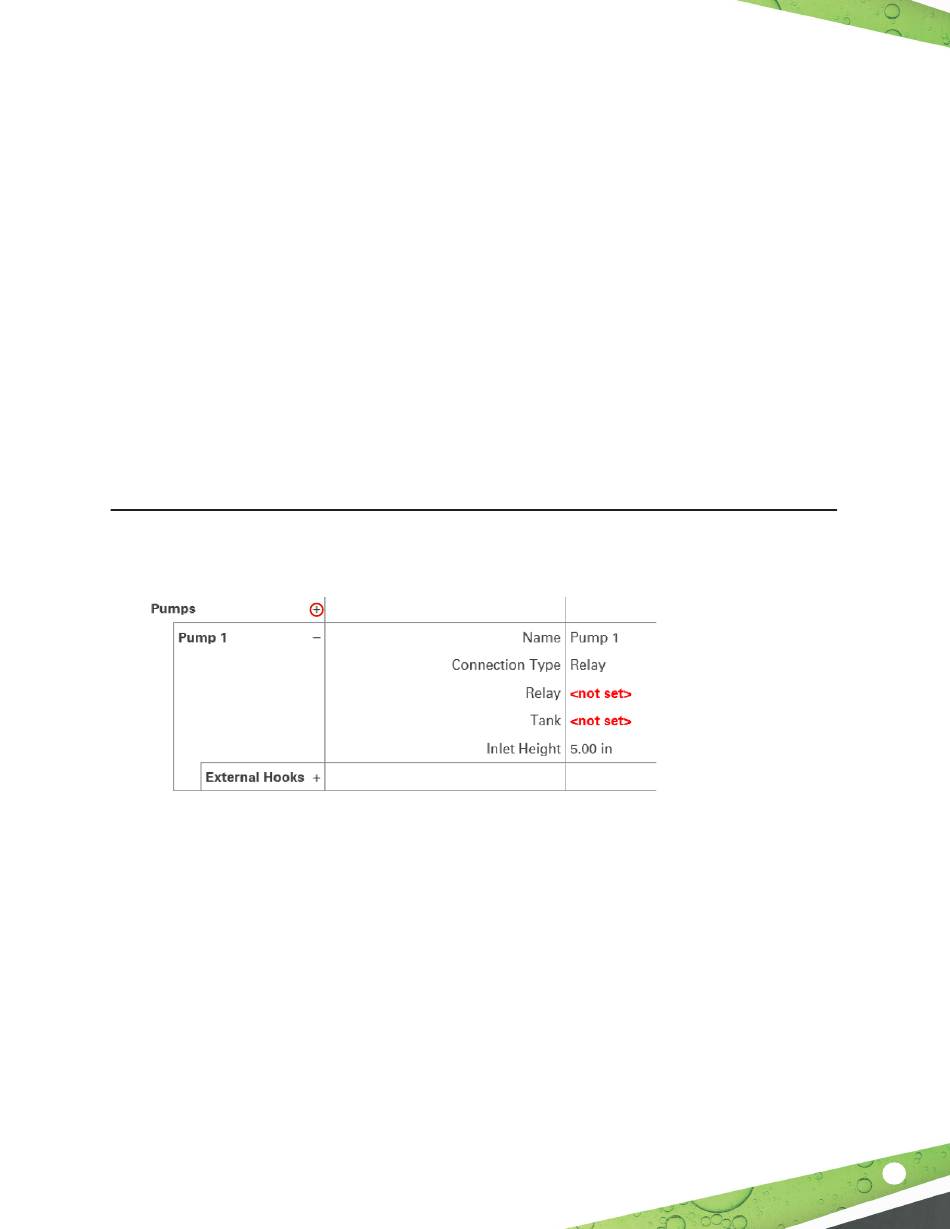

1. Navigate to: Settings>Configuration>Fuel Management Systems>Pumps.
2. Click "+" once for each Pump to be installed.
NOTE: To use TPI, you must use FE Petro Smart Controllers.
3. Set Connection Type to Smart Controller, and then choose the appropriate Controller Type.
4. Select the appropriate Controller Address. Start at 1. The Addressing dip switch settings on
the controller must match what you chose.
5. If the Pump is a stand alone controller, set Grouped to No. If the Pump is a member of a
Leveling, Priority or Alternating Group, answer Yes.
6. Select the Tank where the Pump is located.
7. If the Pump is not Grouped there will be a menu option in the Pump section for External
Hooks. Click "+" to identify the location of the Pump Dispenser Signal (Hook signal). This
turns on the Pump when a dispense is requested. Add External Hooks as needed.
