Navigation and Setup

The operating system is designed for easy navigation. Applications allow the user to modify

programming options by responding to on-screen commands. The following instructions

show various operating system functions, so that issues can be corrected efficiently without

interrupting dispensing or sales.

NOTE: The Login button allows users who have appropriate credentials to log into the system.

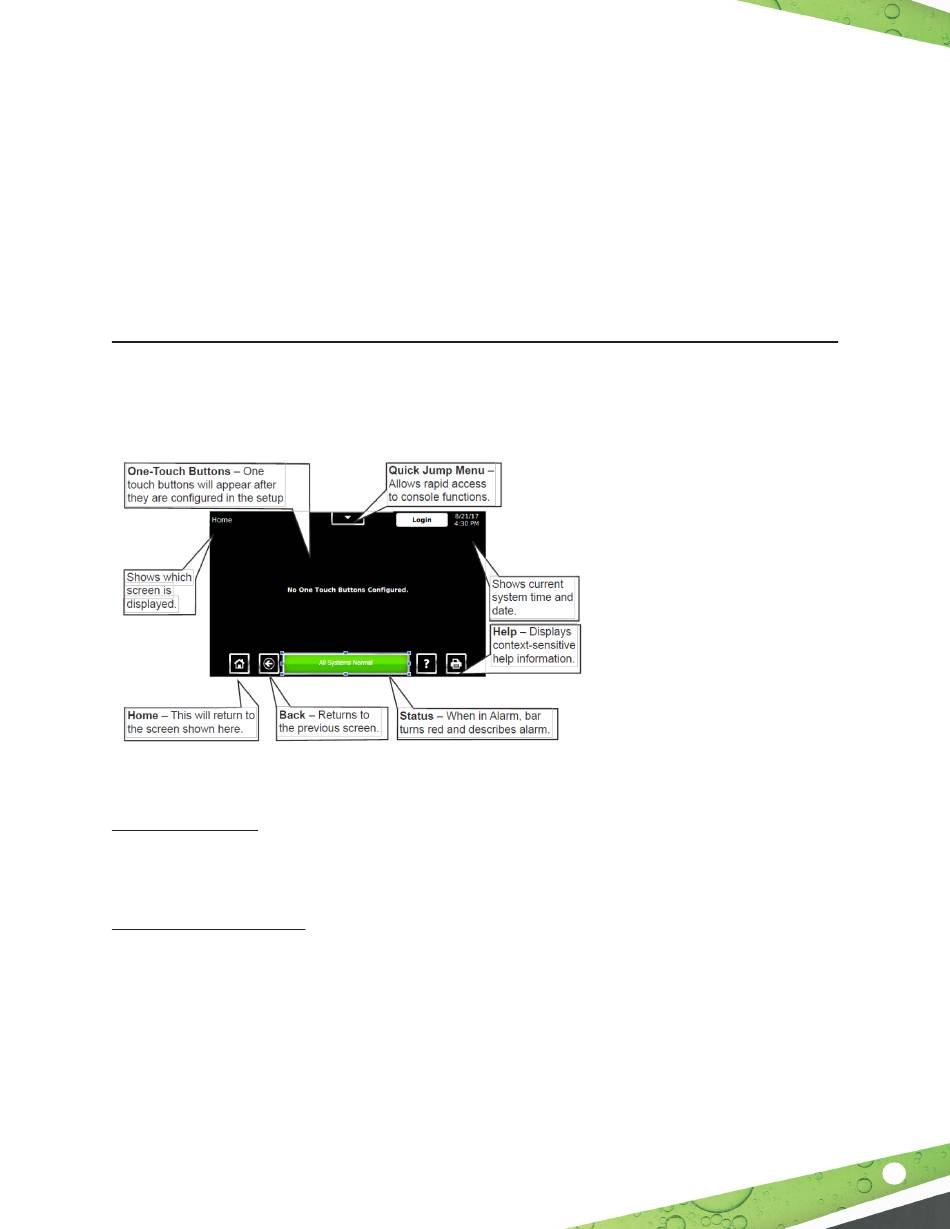

There are many ways to navigate the applications of the EVO™ 200 and EVO™ 400 ATGs. Listed

below are buttons that will help you navigate the functions of the console.

The Quick Jump Menu was developed to simplify system navigation. From the Quick Jump Menu

you can access sections of the EVO™ 200 and EVO™ 400 ATGs with a few quick selections. When

the Quick Jump Menu button is selected, it will bring you to three tabs Each tab will allow access

to different information:

• Applications - Tanks, Manifolds, Sensors, Conditions, Pumps, Reports, Compliance, Alarms

• System-Configuration, System Information, Reboot System, Factory Defaults, Erase Archives

• Tools- Calibrate Touchscreen
