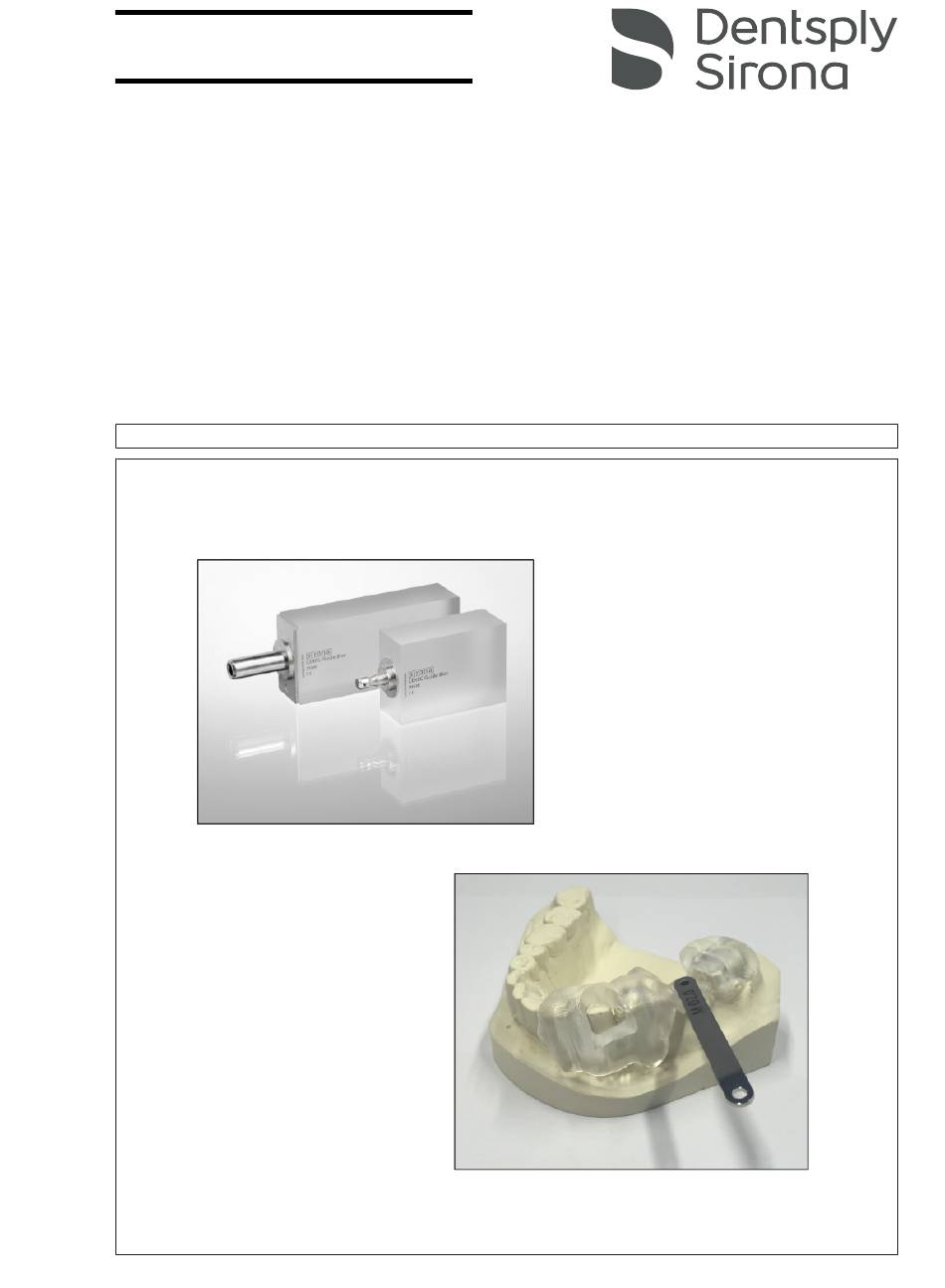

- Page 1 12.2018 New as of: Sirona Dental CAD/CAM System CEREC Guide 2 Operating Instructions (valid for USA) English...
-
Page 2: Table Of Contents
Application ......................Creating a CEREC Guide 2 ................. 4.1.1 Optical impression ................. 4.1.2 3D x-ray and implant planning ............4.1.3 Design and development of the CEREC Guide 2 ......4.1.4 Application information..............Cleaning, disinfection and sterilization............4.2.1 Cleaning and disinfection............... 4.2.2 Cleaning the CEREC Guide Drill Keys .......... -
Page 3: General Data
Dentsply Sirona 1 General data Operating Instructions CEREC Guide 2 1.1 Contact information General data Please read this document completely and follow the instructions exactly. You should always keep it within reach. Original language of the present document: German. Contact information... -
Page 4: Formats And Symbols Used
1 General data Dentsply Sirona 1.3 Symbols used Operating Instructions CEREC Guide 2 1.2.2 Formats and symbols used The formats and symbols used in this document have the following meaning: Prerequisite Prompts you to do something. 1. First action step 2. -
Page 5: Indications For Use
Dentsply Sirona 1 General data Operating Instructions CEREC Guide 2 1.4 Indications for use Indications for use The Sirona Dental CAD/CAM System with CEREC SW Chairside Software is intended for use in partially or fully edentulous mandibles and maxillae in support of single or multiple-unit cement retained restorations. - Page 6 1 General data Dentsply Sirona 1.4 Indications for use Operating Instructions CEREC Guide 2 Manufacturer Name of Implant Implant Size System Platform Diameter Dentsply Sirona Osseospeed 3.5/4.0 3.5 S / 4.0 S Implants 4.5/5.0 4.5/5.0/5.0 S Xive Osseospeed EV Ankylos...
-
Page 7: Indications
Tapered internal tissue level Internal dental implant, 5.0/6.0 Single stage dental implants Indications The CEREC Guide 2 is used for dental implants that are completed with supported and managed surgical systems (refer to “Materials [→ 11]”). 63 96 100 D3587 D3587.201.01.11.02 12.2018... -
Page 8: Safety Instructions
Limitations A CEREC Guide 2 can be manufactured by you as a clinician or technician by means of an MC X / MC XL milling and grinding unit or an inLab MC X5. The CEREC Guide 2 is not a fully automatic solution. It cannot be compared to a surgical guide that has been manufactured centrally based on your design. -
Page 9: Product Description
It is a prerequisite that the location of one or more implants has been planned using the 3D X-ray scan (DVT) and that location is to be transferred to the actual jaw. CEREC Guide 2 is a device that supports the dentist when setting implants. CEREC Guide 2 functions as a... - Page 10 3 Product description Dentsply Sirona 3.1 Description of the CEREC Guide 2 Operating Instructions CEREC Guide 2 The mechanical guide of the drill, with a prescribed direction and depth, enables the treating physician to change the planned implant into reality.
-
Page 11: Materials

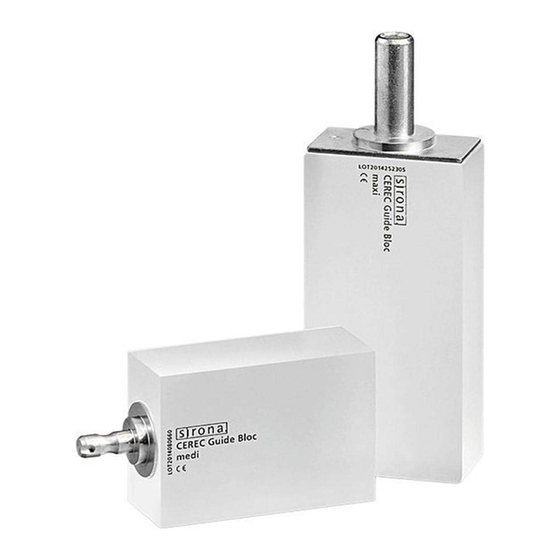

GS 0F00. The CEREC Guide Blocs medi / maxi and inCoris PMMA guide disc 22 are intended to manufacture a CEREC Guide 2. These materials are processed in a milling process on the machinery provided for this. All parts are provided unsterilized and are intended for single use only. - Page 12 The drill keys provided by the implant manufacturers are not compatible with CEREC Guide 2. Use the CEREC Guide Drill Keys in place of the original drill key from the implant manufacturer. CEREC Guide Pilot Drill Keys are only suitable for guiding pilot drills.
- Page 13 Dentsply Sirona 3 Product description Operating Instructions CEREC Guide 2 3.2 Materials Overview of drill keys Drill set Original key desig- Ø drill = nation Ø inside tray (Ø ≤ 3.5) (Ø ≤ 4.3) (Ø ≤ 5.0) CEREC Guide Pilot Drill Keys 2.0...
-
Page 14: Application
1. Scan the situation in the mouth either intraorally or using a model. The following applies at least to all areas which are intended to later serve as a support for the CEREC Guide 2. The surface scan is also used for the overlay of the x-ray volume. -
Page 15: X-Ray And Implant Planning
This increases the likeliness that teeth free from artifacts can be used for registration. To produce a CEREC Guide 2, the import of the previously created *.SSI data record in GALILEOS Implant is necessary. The optical surface scan is superimposed over the X-ray volume. - Page 16 4 Application Dentsply Sirona 4.1 Creating a CEREC Guide 2 Operating Instructions CEREC Guide 2 Drill Bones CEREC Guide Drill Key Tooth Gingiva CEREC Guide 2 In the GALILEOS Implant software, the depth stop is to be entered using the D2 value. The D2 value is defined as the distance from the side of the drilling template to the apical top of the implant.
-
Page 17: Design And Development Of The Cerec Guide 2
If the original scan is presented, which was also the basis for the implant planning. All areas, which are not intended to serve as a support for the CEREC Guide 2 should be cut. This includes, for example, larger areas of gingiva outside the planned implant position. -
Page 18: Application Information
● Place the CEREC Guide 2 in a bath containing the undiluted disinfection solution. ● Leave the CEREC Guide 2 immersed in the solution for 30 minutes. ● Wash the remaining disinfectant for 30 seconds with water of at least drinking water quality. -
Page 19: Sterilization Of The Cerec Guide Drill Keys
Dentsply Sirona 4 Application Operating Instructions CEREC Guide 2 4.2 Cleaning, disinfection and sterilization 4.2.3 Sterilization of the CEREC Guide Drill Keys The drill key (A) and terminal strip (B) are supplied unsterilized and must be steam sterilized using a standard practice sterilization device. -
Page 20: Surgical Intervention
4.3 Surgical intervention Operating Instructions CEREC Guide 2 Surgical intervention ● CEREC Guide 2 must only be used in cases that have been planned by a qualified dentist using the implant planning software "GALILEOS Implant". ● The drill keys listed under the “Materials [→ 11]” section are mandatory for every drilling process. - Page 22 We reserve the right to make any alterations which may be required due to technical improvements. © Sirona Dental Systems GmbH Sprache: englisch Printed in Germany D3587.201.01.11.02 12.2018 Ä.-Nr.: 125 878 Sirona Dental Systems GmbH 63 96 100 D3587 Fabrikstr. 31 Order No ...
