Technical Parameters - Tecway UFO Operation Manual

TECHNICAL PARAMETERS

Voltage: AC 220V/110V（50/60HZ）
Max. current: 5.2A/10.4A
(Note: The proper voltage and current used accords to the nameplate at the back door of
the game.)
Max. power: 600W
Power (standby mode): 80W
Coin size: φ21mm φ31mm(diameter)
~
1.2mm 2.5mm(thickness)
~
Capacity of coin box: about 1050 pcs with coin size φ25mm*1.5mm
Location required: indoor use; temperature: -5~40°C ; RH > 90%; no contact with any
corrosive, greasiness and dirt.

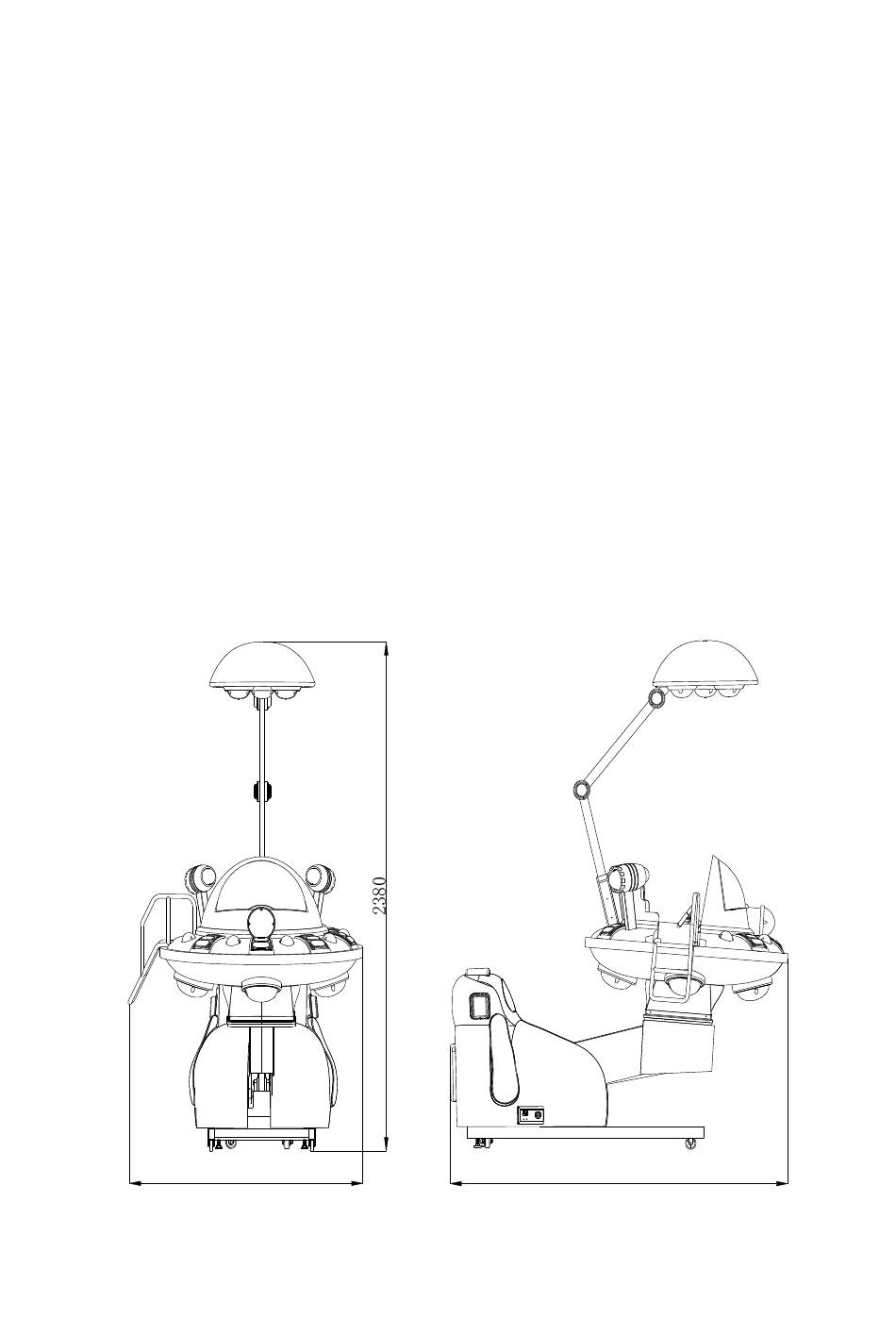

Dimensions: L2000mm*D1430mm*H2380mm
1430 2000
4
