Datasheet - MDT Technologies SCN-P360D3.02 Technical Manual

MDT Presence Detector, flush mounted
Version
SCN-P360D4.02 Presence Detector, 4 pyro detectors
SCN-P360K4.02 Presence Detector, 4 pyro detectors
SCN-P360D3.02 Presence Detector, 3 pyro detectors
SCN-P360K3.02 Presence Detector, 3 pyro detectors
SCN-G360D3.02 Glass Presence Detector, White, 3 pyro d.
SCN-G360K3.02 Glass Presence Detector, White, 3 pyro d.
SCN-P360D1.01 Presence Detector, 1 pyro detectors
The MDT Presence Detector is available in several versions, with light sensor and with light sensor plus constant level
light intensity. The Presence Detectors capturies the smallest movements with 1-4 pyro detectors and a high resolution
lens. The illuminance value is measured by a sensor and can be read out directly in lux. After presence detection a 1-bit
or dimming value (0...100%) is send to the bus, the sensitivity is adjustable in 10 steps. The light sensor releases a
telegram if the brighness value differs from the progammed value. Additionally the MDT Presence Detector has block
objects for light and HVAC channel and offers a module for scene control. The MDT Presence Detector with constant
level light intesity can control up to 3 light rows (SCN-P360K3.01: 1 light row).
The MDT Presence Detector is a installation device for fixed installation in dry rooms, the preferred installation height is
2 up to 4 meters.
4 pyro detectors: Covered area for movement max. 16m (Diameter), the covered area for presence max. 8m (Diameter).
3 pyro detectors: Covered area for movement max. 11m (Diameter), the covered area for presence max. 5m (Diameter).
1 pyro detector: Covered area for movement max. 5m (Diameter), the covered area for presence max. 3-4m (Diameter).
For project design and commissioning of the MDT Presence Detector it is recommended to use the ETS.
Please download the application software at www.mdt.de/Downloads.html

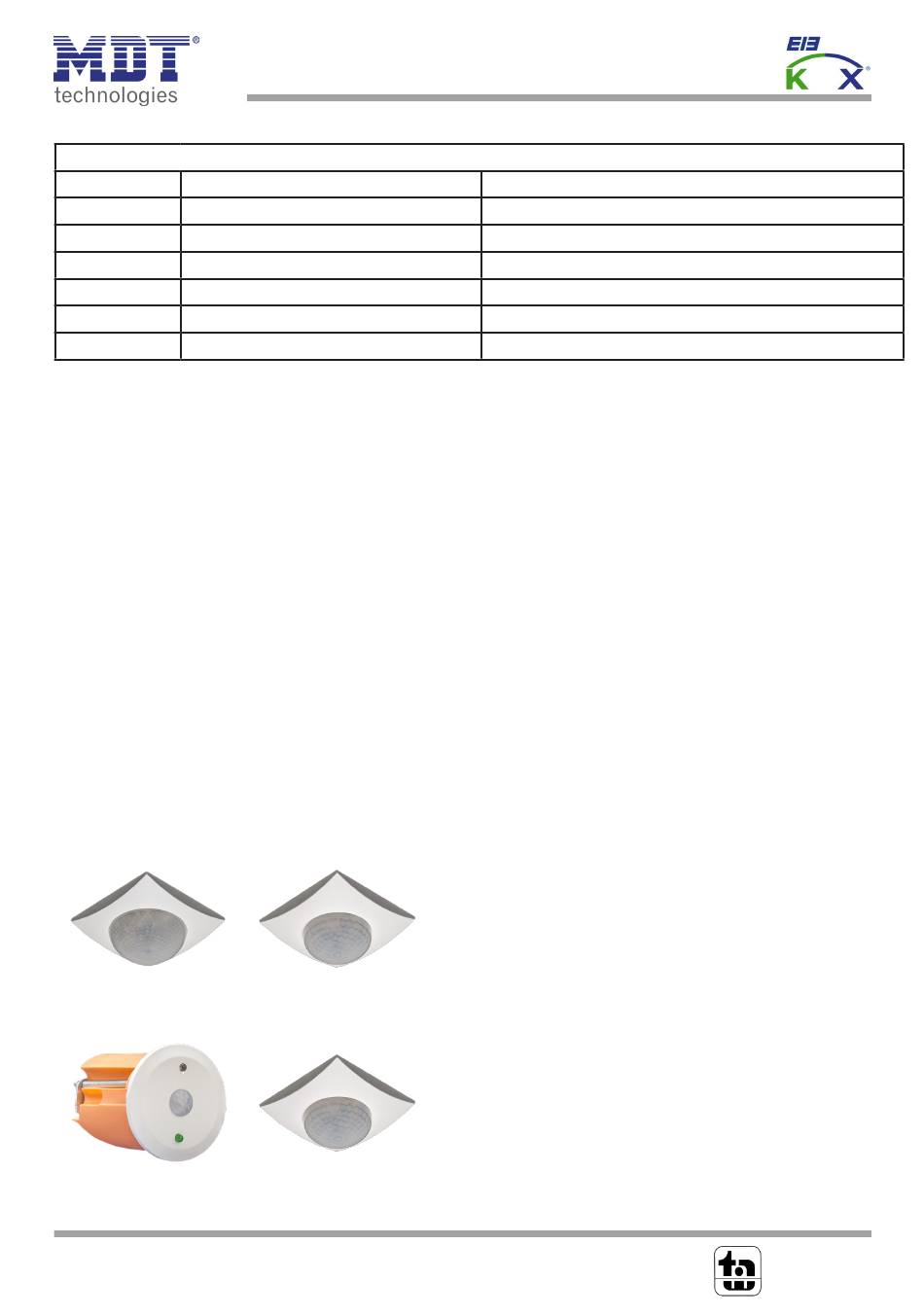

SCN-P360D4.02
SCN-P360D1.01
MDT technologies GmbH
•
51766 Engelskirchen
Tel.: + 49 - 2263 - 880 Fax: + 49 - 2263 - 4588
•
Stand: 0817
MDT Presence Detector
SCN-P360D3.02
SCN-G360D3.02
•
Papiermühle 1
• •
knx@mdt.de www.mdt.de
Light sensor (Presence max. 8m)
Light sensor, constant level light intensity (Presence max. 8m)
Light sensor (Presence max. 5m)
Light sensor, constant level light intensity (Presence max. 5m)
Light sensor, (Presence max. 5m)
Light sensor, constant level light intensity (Presence max. 5m)
Light sensor (Presence max. 3-4m)
• Production in Germany, certified according to ISO 9001
• New application
• White Glass front, integrated temp. sensor (SCN-G360x3.02 only)
• 1, 3 or 4 pyro detectors with lens for presence detection
• Adjustable presence and presence sensitivity for
day, night and alarm *
• Up to 4 light channels, sensors can be individually analyzed
• 1 HVAC and 1 alarm / notification channel
• Short time presence to reduce the after-running time *
• Input for an external push button with reset time *
• Intelligent switching function for automatic and manual operation *
• Blocking and forced function with release time *
• Extensive day / night function with 2nd switching object
• Orientation light (brightness and time adjustable)
• Avoiding of false reports for the alarm channel by reducing
the sensitivity and adjustable observation window
• 3 years warranty
* not SCN-P360D1.01
N
DIN EN ISO 9001
TAW Cert
Zert.Nr.1905606
