Technical Manual Presence Detector SCN-P/G360XX.02
The following tables shows the available settings:
ETS-Text
Settings switching behavior/Regulation
Constant light controlled by
Switch On control delay
Use switch on dimming value
Brightness value [Lux] for
switch on
Controller switches light off
Use Day / Night object
Setpoint for day
Setpoint for night
Settings for the dimming behavior
Cyclical sending of dimming
value
Send dimming value on
change of
CL behavior at relative
dimming
Relative dimming time

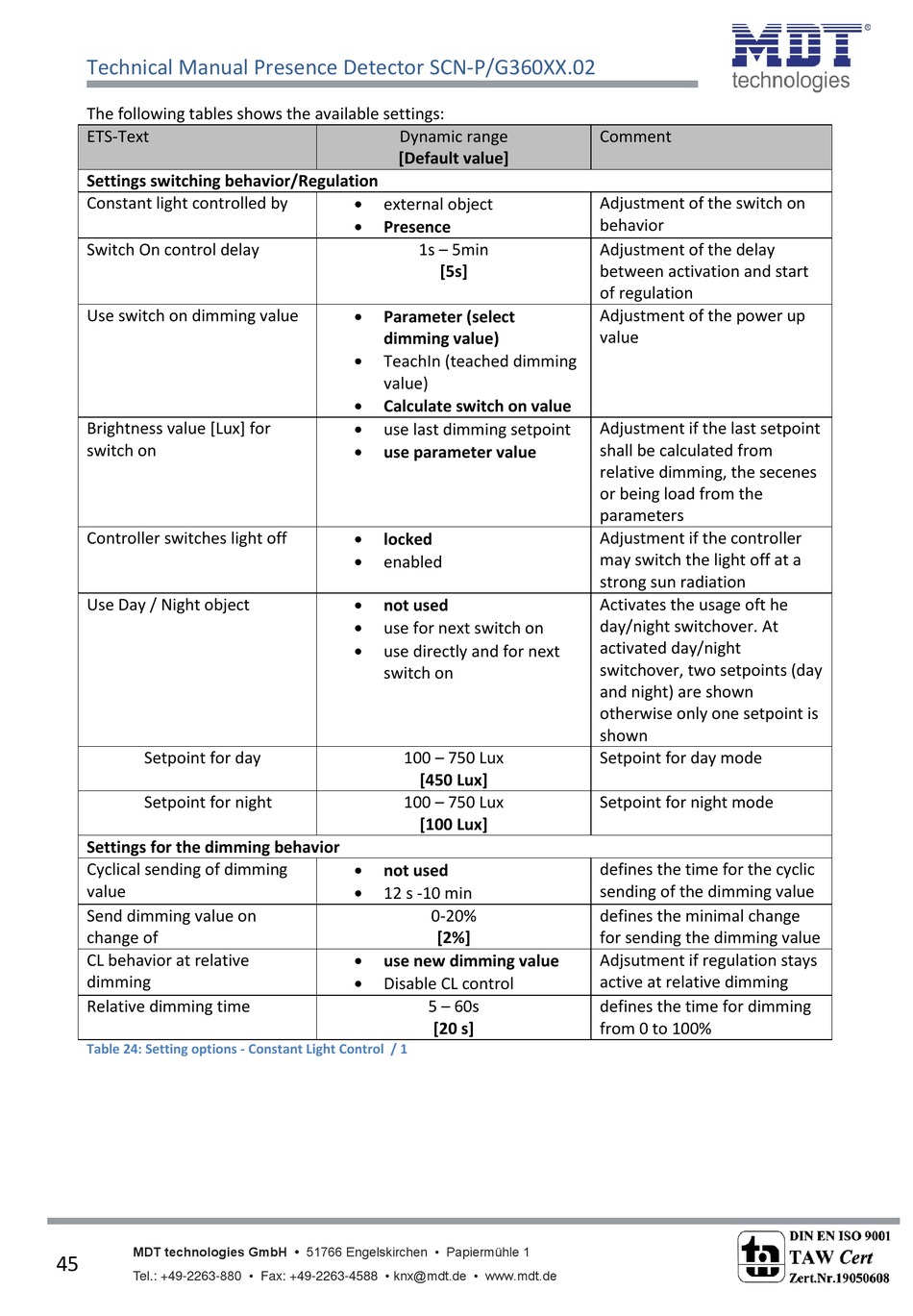

Table 24: Setting options - Constant Light Control / 1
MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1
45
Tel.: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de
45
Dynamic range
[Default value]
external object
Presence
1s – 5min
[5s]
Parameter (select
dimming value)
TeachIn (teached dimming
value)
Calculate switch on value
use last dimming setpoint
use parameter value
locked
enabled
not used
use for next switch on
use directly and for next
switch on
100 – 750 Lux
[450 Lux]
100 – 750 Lux
[100 Lux]
not used
12 s -10 min
0-20%
[2%]
use new dimming value
Disable CL control
5 – 60s
[20 s]
Comment
Adjustment of the switch on
behavior
Adjustment of the delay
between activation and start
of regulation
Adjustment of the power up
value
Adjustment if the last setpoint
shall be calculated from
relative dimming, the secenes
or being load from the
parameters
Adjustment if the controller
may switch the light off at a
strong sun radiation
Activates the usage oft he
day/night switchover. At
activated day/night
switchover, two setpoints (day
and night) are shown
otherwise only one setpoint is
shown
Setpoint for day mode
Setpoint for night mode
defines the time for the cyclic
sending of the dimming value
defines the minimal change
for sending the dimming value
Adjsutment if regulation stays
active at relative dimming
defines the time for dimming
from 0 to 100%
