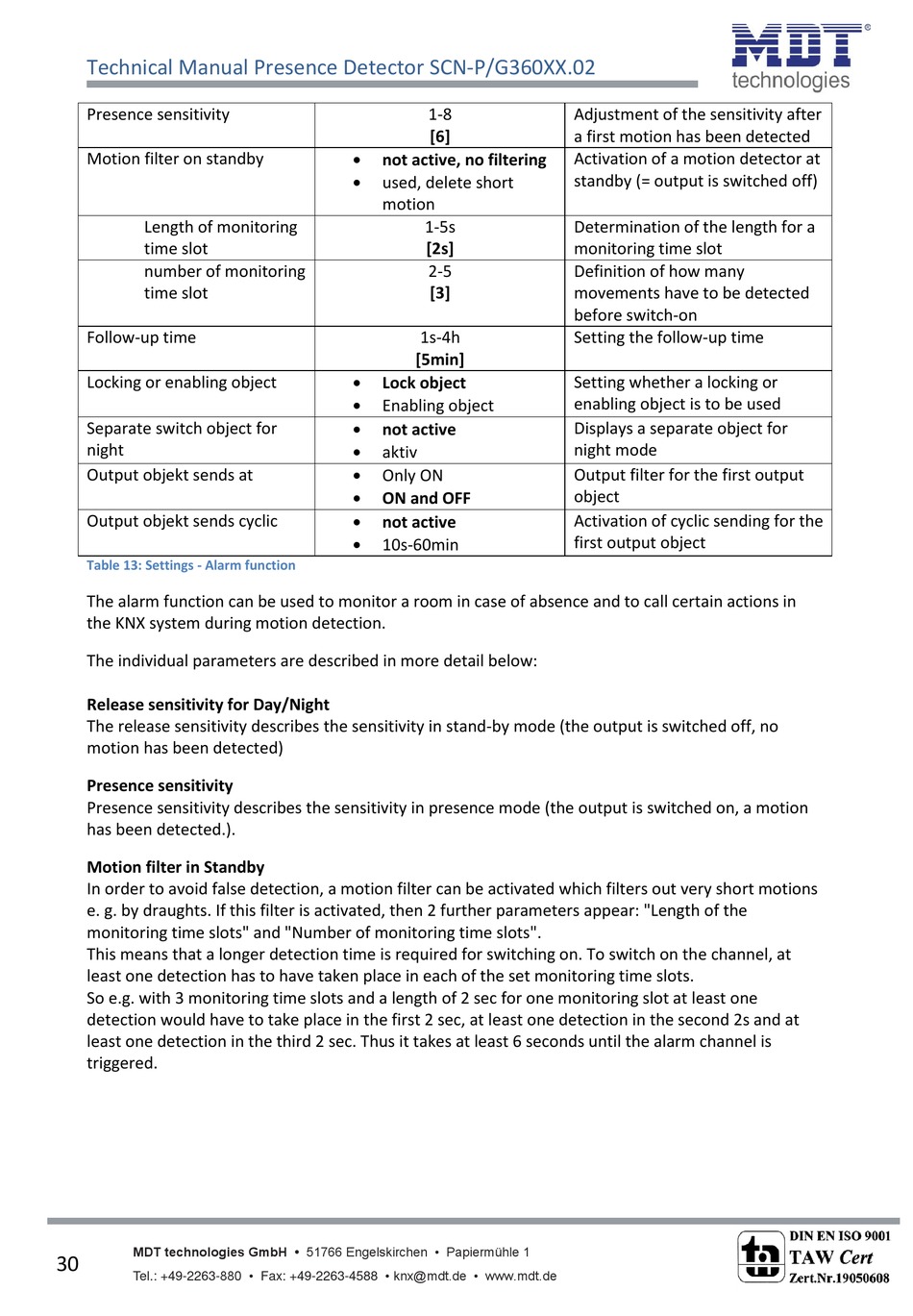

Technical Manual Presence Detector SCN-P/G360XX.02
Presence sensitivity
Motion filter on standby
Length of monitoring
time slot
number of monitoring
time slot
Follow-up time
Locking or enabling object
Separate switch object for
night
Output objekt sends at
Output objekt sends cyclic
Table 13: Settings - Alarm function
The alarm function can be used to monitor a room in case of absence and to call certain actions in
the KNX system during motion detection.
The individual parameters are described in more detail below:
Release sensitivity for Day/Night
The release sensitivity describes the sensitivity in stand-by mode (the output is switched off, no
motion has been detected)
Presence sensitivity
Presence sensitivity describes the sensitivity in presence mode (the output is switched on, a motion
has been detected.).
Motion filter in Standby
In order to avoid false detection, a motion filter can be activated which filters out very short motions
e. g. by draughts. If this filter is activated, then 2 further parameters appear: "Length of the
monitoring time slots" and "Number of monitoring time slots".
This means that a longer detection time is required for switching on. To switch on the channel, at
least one detection has to have taken place in each of the set monitoring time slots.
So e.g. with 3 monitoring time slots and a length of 2 sec for one monitoring slot at least one
detection would have to take place in the first 2 sec, at least one detection in the second 2s and at
least one detection in the third 2 sec. Thus it takes at least 6 seconds until the alarm channel is
triggered.
