Technical Manual Presence Detector SCN-P/G360XX.02

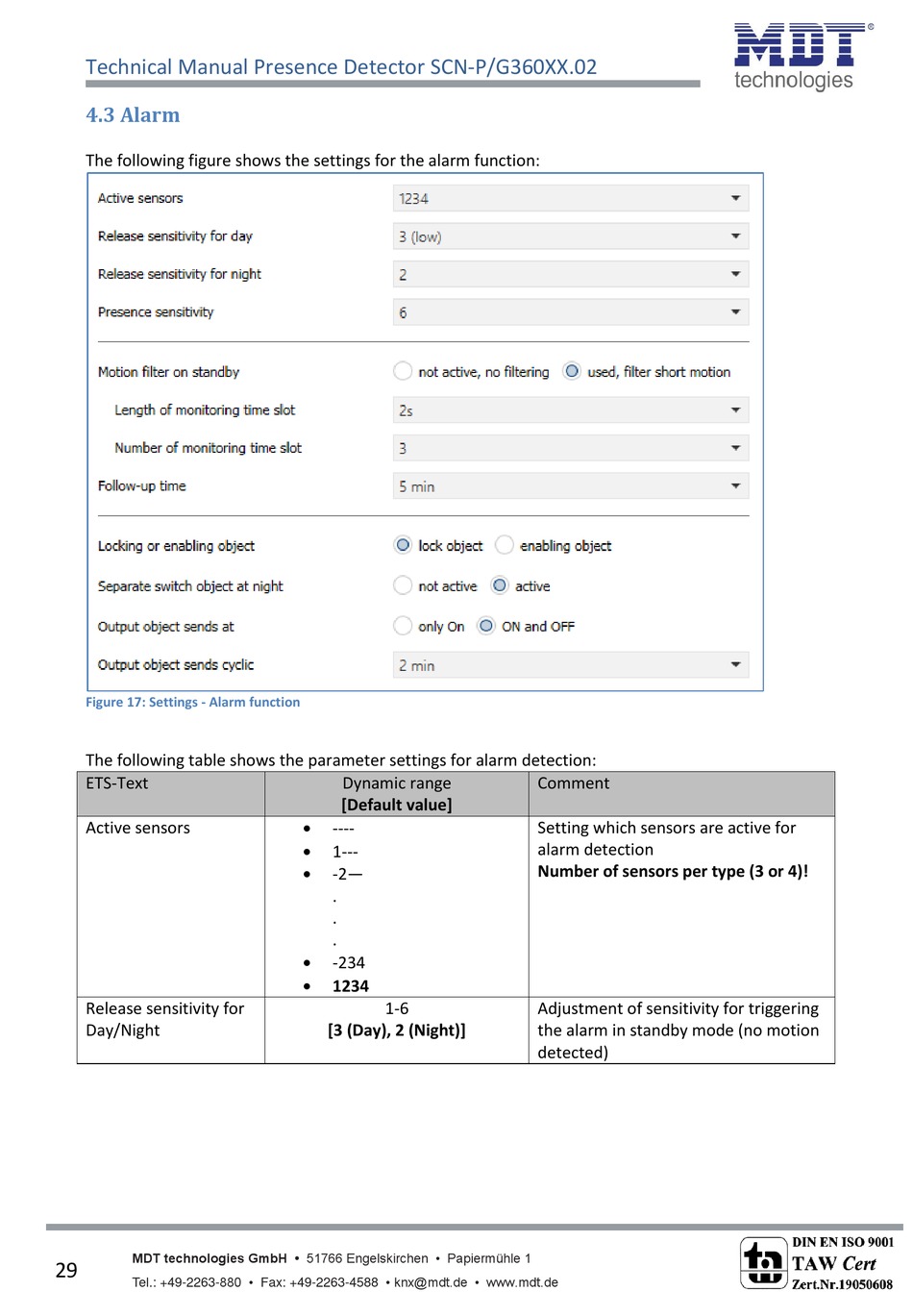

4.3 Alarm

The following figure shows the settings for the alarm function:
Figure 17: Settings - Alarm function
The following table shows the parameter settings for alarm detection:
ETS-Text
Active sensors
Release sensitivity for
Day/Night
MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1
29
Tel.: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de
29
Dynamic range
[Default value]

----

1---

-2—
.
.
.

-234

1234
1-6
[3 (Day), 2 (Night)]
Comment
Setting which sensors are active for
alarm detection
Number of sensors per type (3 or 4)!
Adjustment of sensitivity for triggering
the alarm in standby mode (no motion
detected)
