Technical Manual Presence Detector SCN-P/G360XX.02

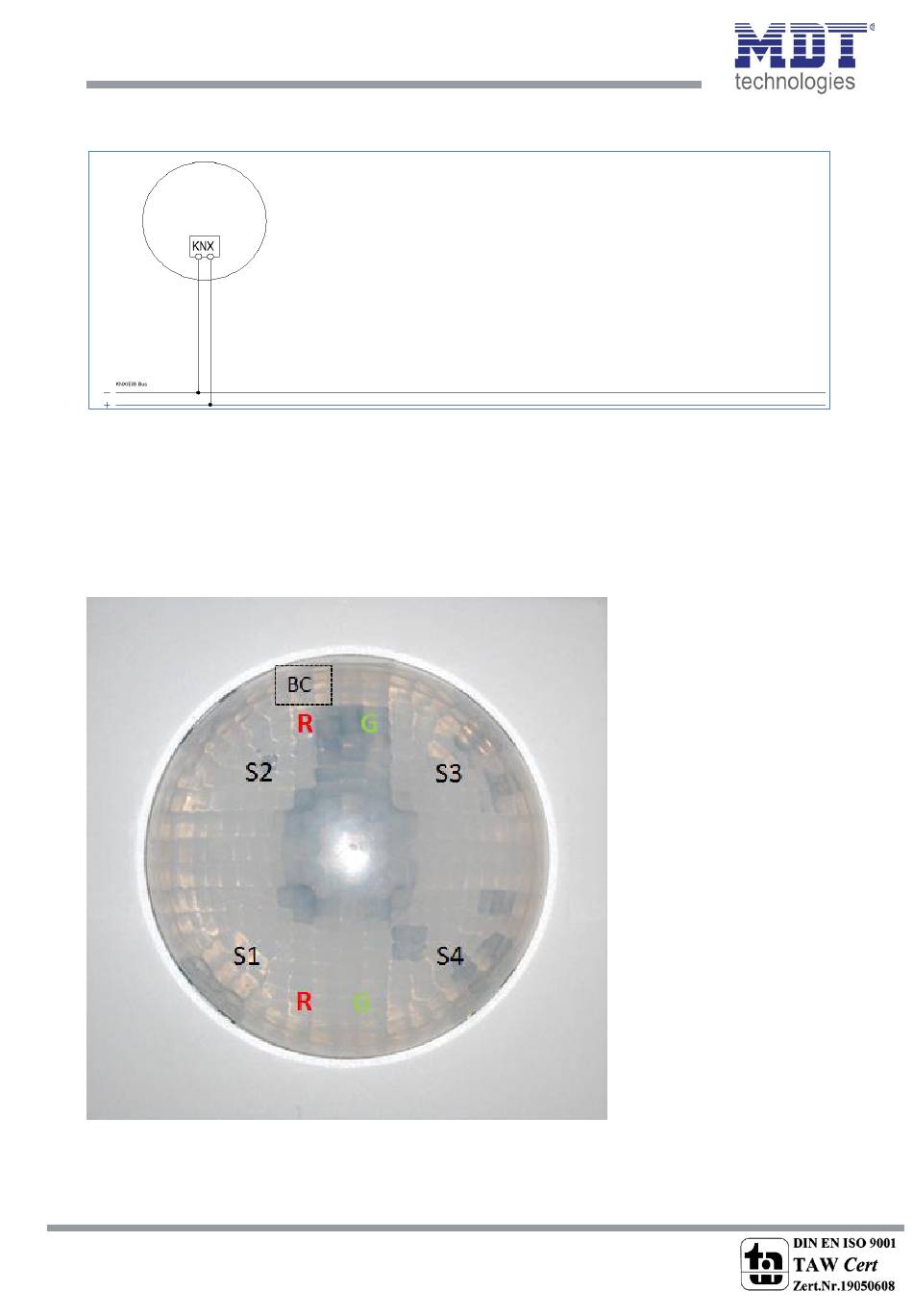

2.3 Exemplary circuit diagram
Figure 1: Exemplary circuit diagram
2.4 Structure & installation instructions
The following figure shows the adjustment of the particular sensors, identified with S1=sensor 1 to S4
for the presence detector with 4 pyro sensors. The LEDs are marked with R for the red LED and G for
the green LED. The bus connector is marked with BC:
Figure 2: Position of the sensors and LEDs – SCN-P360X4.02
MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1
5
Tel.: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de
5
