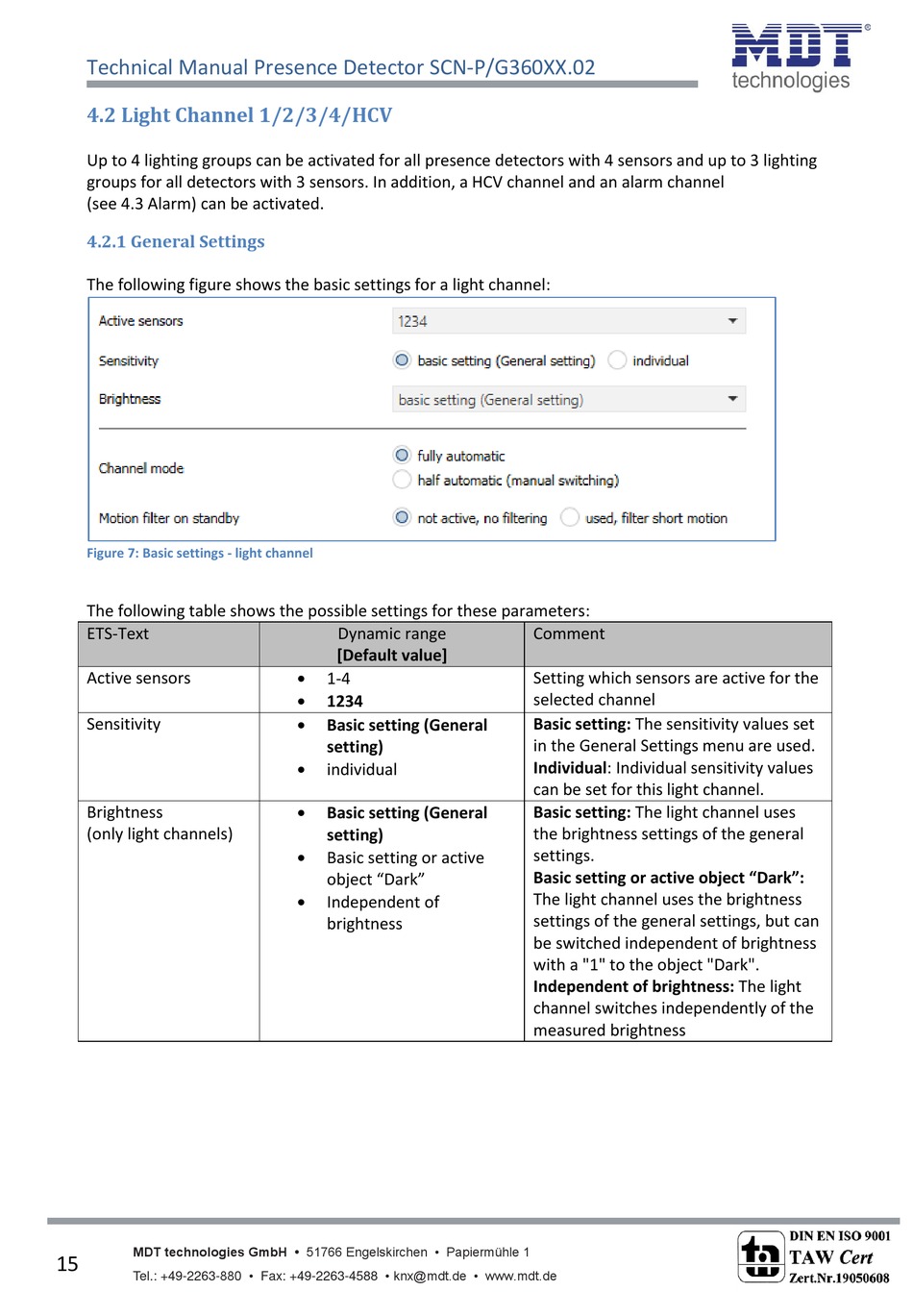

Technical Manual Presence Detector SCN-P/G360XX.02

4.2 Light Channel 1/2/3/4/HCV

Up to 4 lighting groups can be activated for all presence detectors with 4 sensors and up to 3 lighting
groups for all detectors with 3 sensors. In addition, a HCV channel and an alarm channel
(see 4.3 Alarm) can be activated.

4.2.1 General Settings

The following figure shows the basic settings for a light channel:
Figure 7: Basic settings - light channel
The following table shows the possible settings for these parameters:
ETS-Text
Active sensors
Sensitivity
Brightness
(only light channels)
MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1
15
Tel.: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de
15
Dynamic range
[Default value]

1-4

1234

Basic setting (General
setting)

individual

Basic setting (General
setting)

Basic setting or active
o je t Dark

Independent of
brightness
Comment
Setting which sensors are active for the
selected channel
Basic setting: The sensitivity values set
in the General Settings menu are used.
Individual: Individual sensitivity values
can be set for this light channel.
Basic setting: The light channel uses
the brightness settings of the general
settings.
Basi setti g or a tive o je t Dark :
The light channel uses the brightness
settings of the general settings, but can
be switched independent of brightness
with a "1" to the object "Dark".
Independent of brightness: The light
channel switches independently of the
measured brightness
