Technical Manual Presence Detector SCN-P/G360XX.02
ETS-Text
Settings standby/orientation light
Standby/orientation light
Standby setpoint
Standby time
Settings lock object
Lock object active
Lock object
value = 1
Value set
Lock object
value = 0
Settings scenes
Scenes
Scene 1 - 8

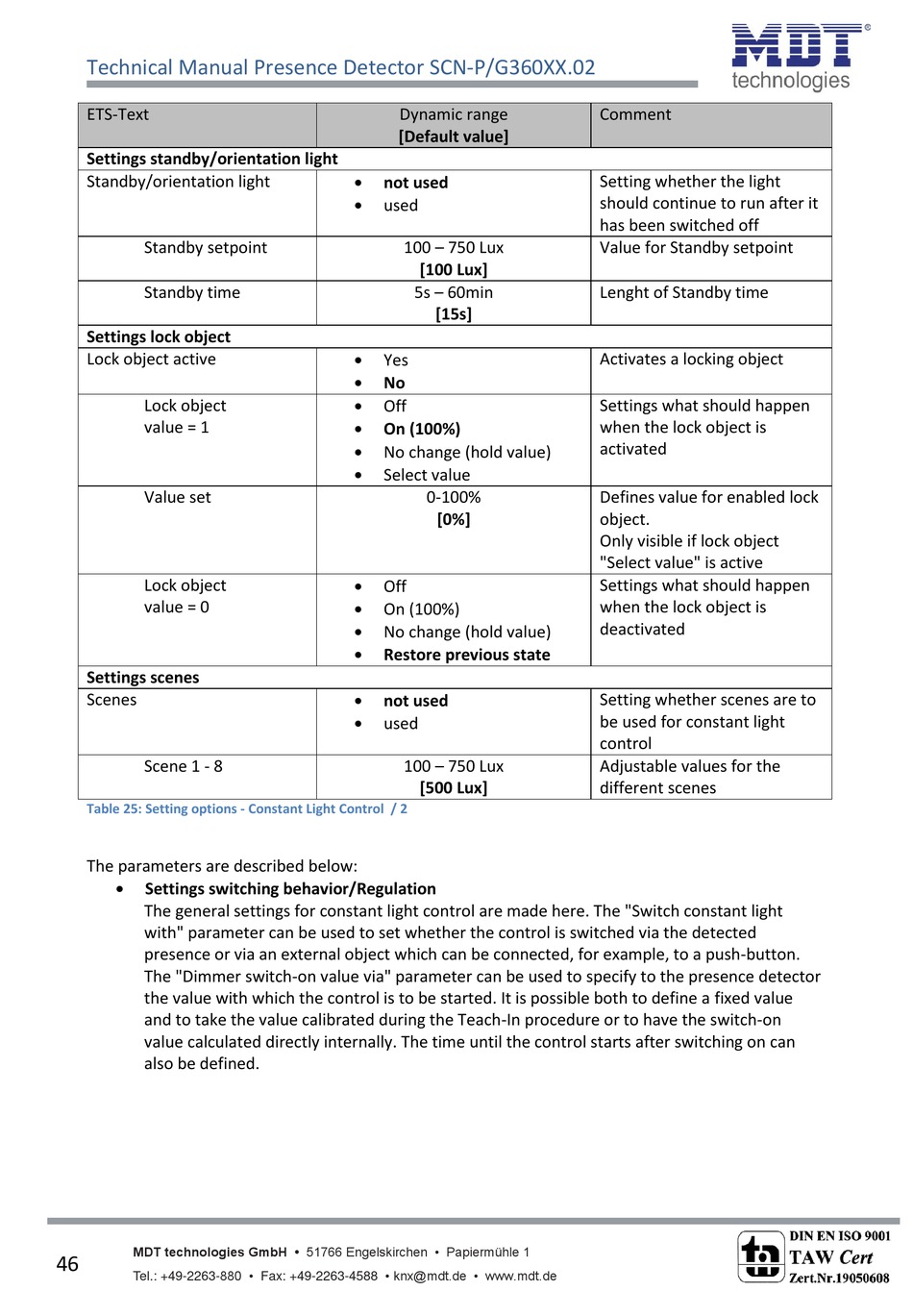

Table 25: Setting options - Constant Light Control / 2
The parameters are described below:

Settings switching behavior/Regulation
The general settings for constant light control are made here. The "Switch constant light
with" parameter can be used to set whether the control is switched via the detected
presence or via an external object which can be connected, for example, to a push-button.
The "Dimmer switch-on value via" parameter can be used to specify to the presence detector
the value with which the control is to be started. It is possible both to define a fixed value
and to take the value calibrated during the Teach-In procedure or to have the switch-on
value calculated directly internally. The time until the control starts after switching on can
also be defined.
