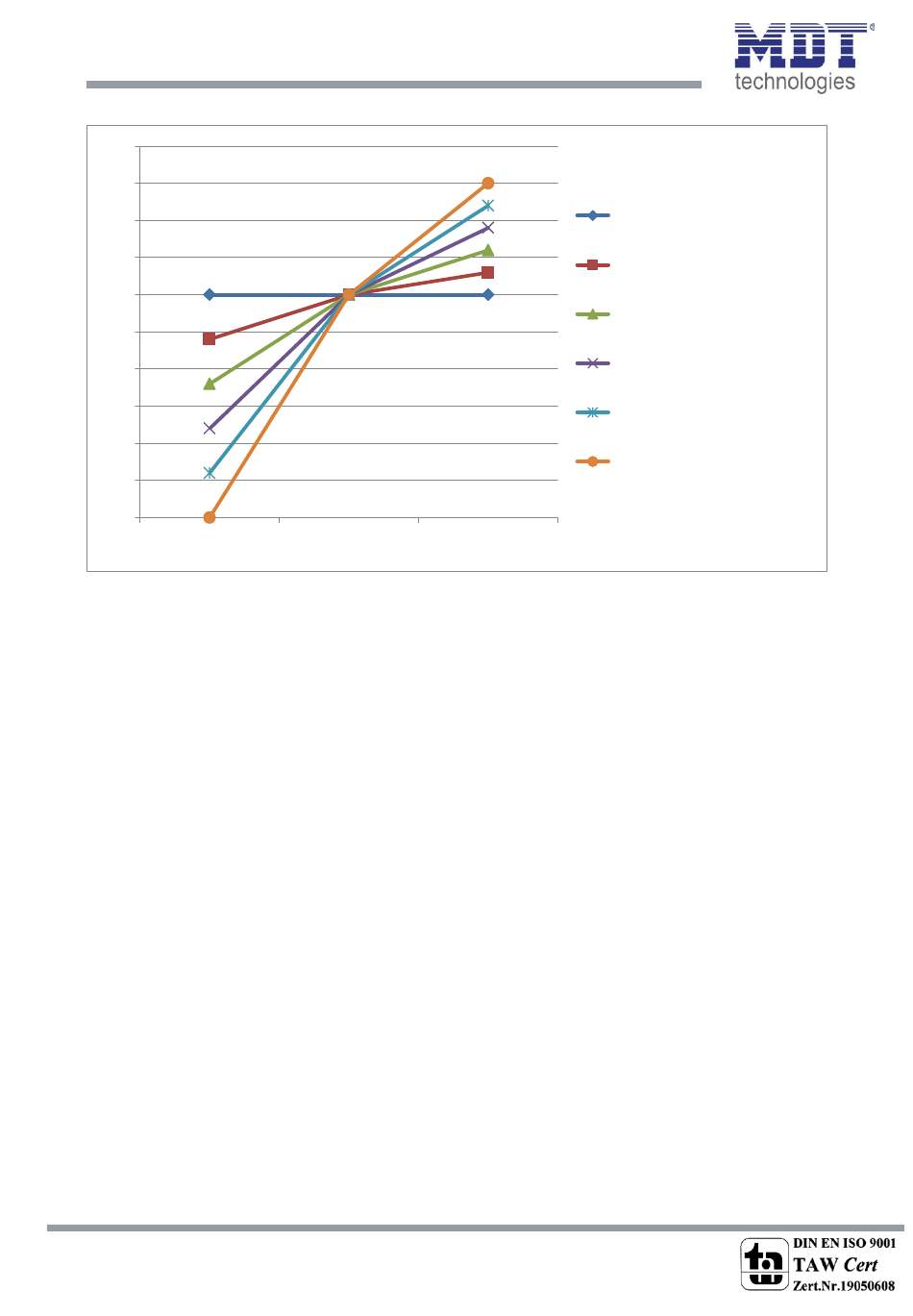

The following diagram shows the influence of the different control parameters to the regulation:
70
65
60
55
50
45
40
35
30
25
20
Window
Figure 26: Influence control parameters
MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1
43
Tel.: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de
43
Main Wall
no influence (Wall and
Window x1)
very low (Wall x1,2; Window
x0,9)
low (Wall x1,4; Window x0,8)
medium (Wall x1,6, Window
x0,7)
high (Wall x1,8; Window x0,6)
very high (Wall x2; Window
x0,5)
