Technical Manual Presence Detector SCN-P/G360XX.02

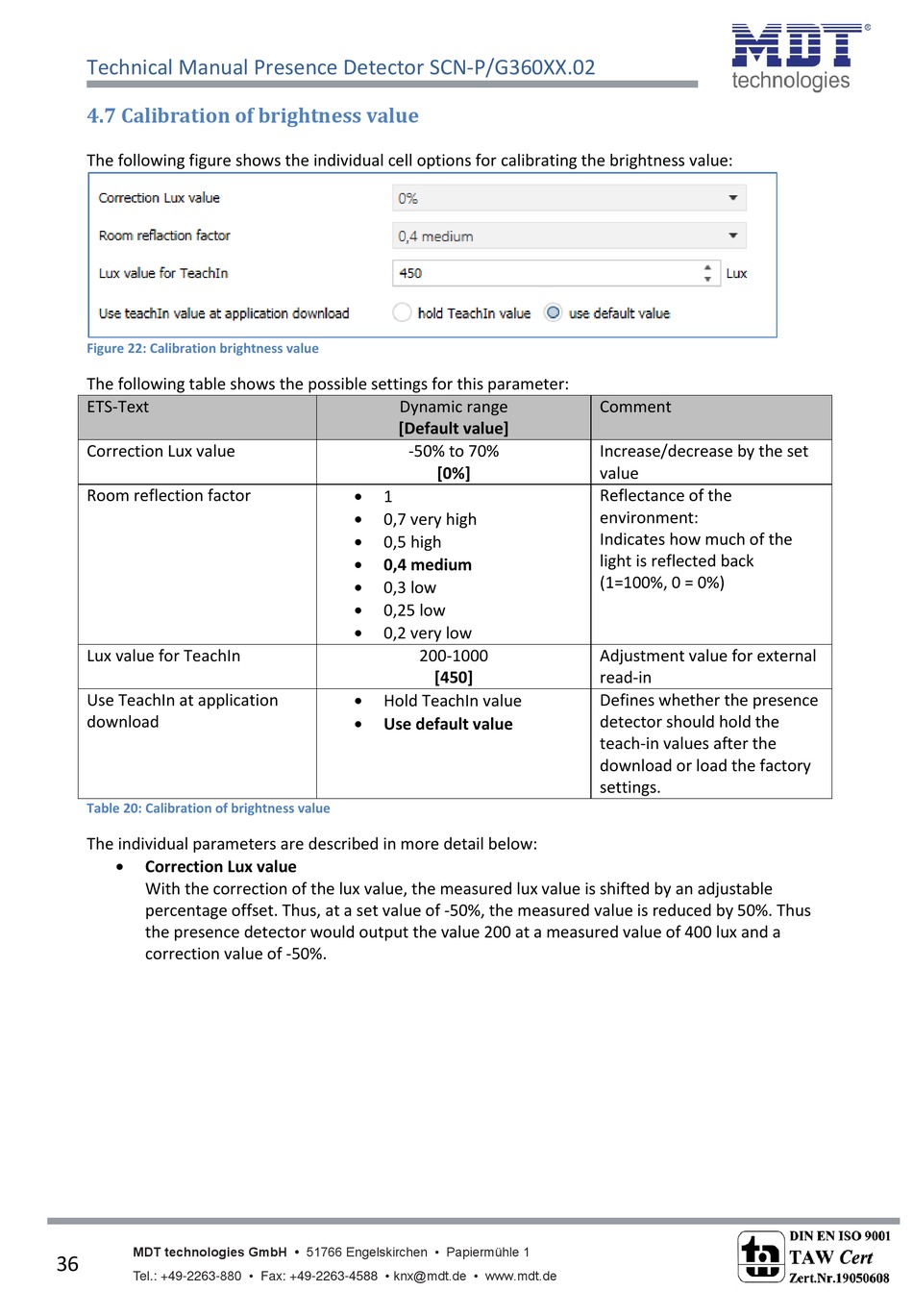

4.7 Calibration of brightness value

The following figure shows the individual cell options for calibrating the brightness value:
Figure 22: Calibration brightness value
The following table shows the possible settings for this parameter:
ETS-Text
Correction Lux value
Room reflection factor
Lux value for TeachIn
Use TeachIn at application
download
Table 20: Calibration of brightness value
The individual parameters are described in more detail below:

Correction Lux value
With the correction of the lux value, the measured lux value is shifted by an adjustable
percentage offset. Thus, at a set value of -50%, the measured value is reduced by 50%. Thus
the presence detector would output the value 200 at a measured value of 400 lux and a
correction value of -50%.
MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1
36
Tel.: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de
36
Dynamic range
[Default value]
-50% to 70%
[0%]

1

0,7 very high

0,5 high

0,4 medium

0,3 low

0,25 low

0,2 very low
200-1000
[450]

Hold TeachIn value

Use default value
Comment
Increase/decrease by the set
value
Reflectance of the
environment:
Indicates how much of the
light is reflected back
(1=100%, 0 = 0%)
Adjustment value for external
read-in
Defines whether the presence
detector should hold the
teach-in values after the
download or load the factory
settings.
