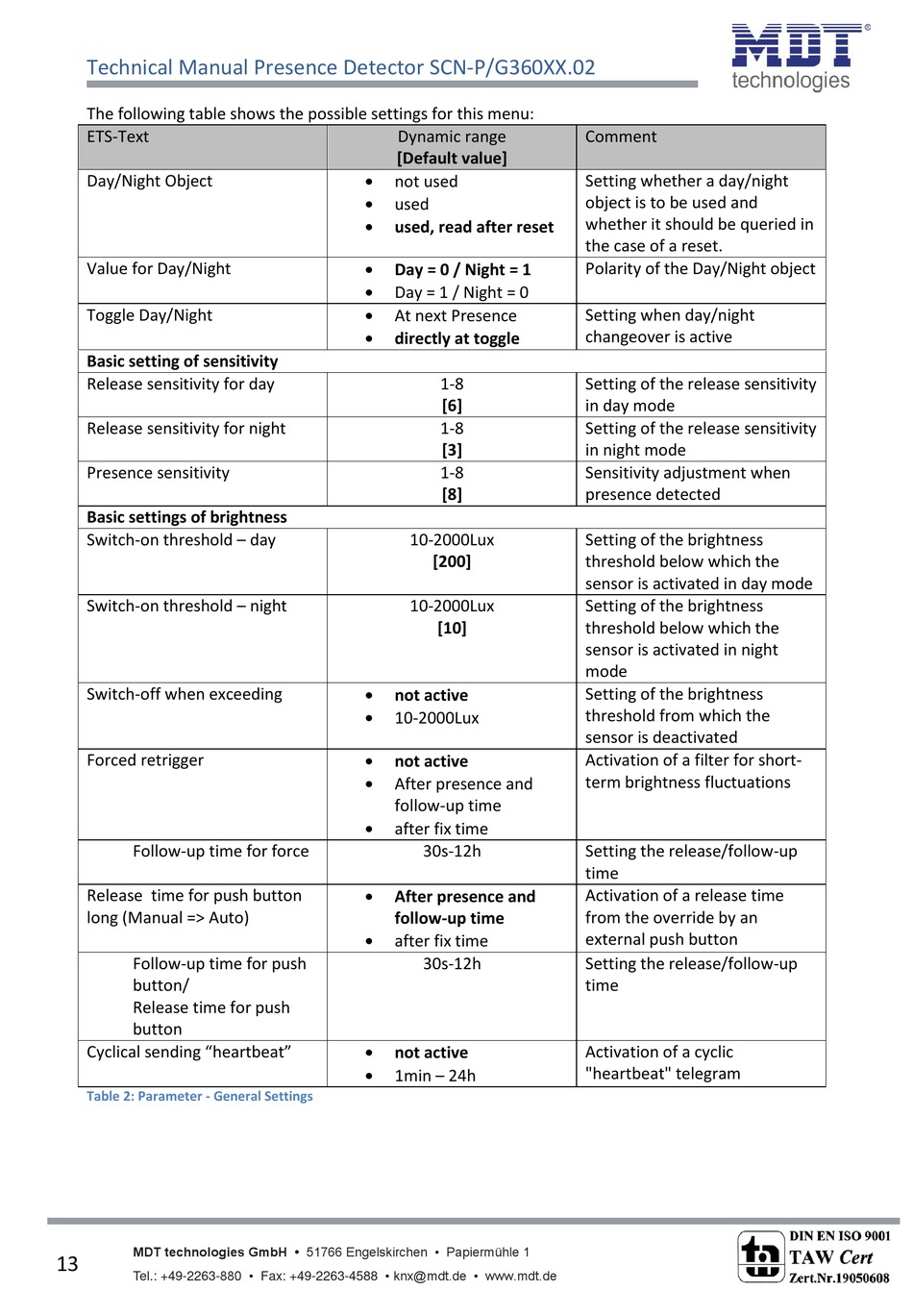

The following table shows the possible settings for this menu:
ETS-Text
Day/Night Object
Value for Day/Night
Toggle Day/Night
Basic setting of sensitivity
Release sensitivity for day
Release sensitivity for night
Presence sensitivity
Basic settings of brightness
Switch-on threshold – day
Switch-on threshold – night
Switch-off when exceeding
Forced retrigger
Follow-up time for force
Release time for push button
long (Manual => Auto)
Follow-up time for push
button/
Release time for push
button
C li al se di g heart eat
Table 2: Parameter - General Settings
