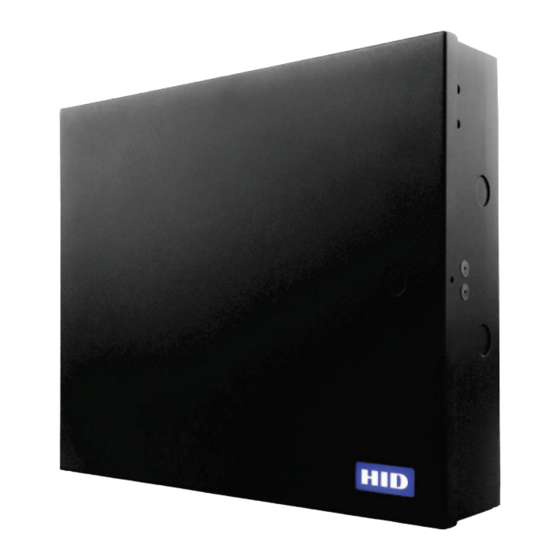

HID ACW2-XN Installation Manual

Web-based access control solution
Hide thumbs Also See for ACW2-XN:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Technical & Service Manual
Web-Based Access Control Solution
ACW2-XN
Installation Guide
ACW2XN-902-EN, Rev. A.2
PLT-03474 A.2
1
Introduction
Product Description
HID Global's Web-based Access Control Solution for small businesses, ACW2-XN, provides a turnkey
solution for small facilities. Meet today's security challenges and benefit from support for state-of-the-art
identity management and reliability of an enterprise level hardware at a fraction of the cost.
Reduce risk and response time for lost or stolen credentials. Use a standard web browser to access the
intuitive management portal. The web-based portal, HID Access Manager, makes it convenient to
provision and revoke smart cards without the expense or difficulties of managing physical keys.
In addition to access and identity management, ACW2-XN provides valuable built-in business tools. Basic
reporting and full audit logs are available at the touch of a button through the web-based portal.
Reliable and backed by a strong warranty, HID Global puts access control from a trusted industry leader
within reach.
ACW2-XN can be expanded to support up to sixteen doors with additional AW2 Wiegand door modules.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ACW2-XN and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HID ACW2-XN

Summary of Contents for HID ACW2-XN

  • Page 1 In addition to access and identity management, ACW2-XN provides valuable built-in business tools. Basic reporting and full audit logs are available at the touch of a button through the web-based portal. Reliable and backed by a strong warranty, HID Global puts access control from a trusted industry leader within reach.

  • Page 2: System Specifications

    2 Doors or 1 APB Door # of Doors (*Expandable to 16 doors, or 8 APB Doors) *Note: Additional ACW2-XN and/or AW2 modules are required. 2. See System Architecture – Best Practices on page 4 for more details. What’s in the Packaging ACW2-XN Contents http://hid.gl/ac-doc...

  • Page 3: Installation Preparation

    Access to an Ethernet Network point or a router/switch that will allow network connectivity. • In the absence of any network, HID Access Manager can be set up and administered by connecting a desktop/laptop PC directly to the Controller Module with an (uncrossed) network cable.

  • Page 4: One Acw2-Xn Enclosure

    • Whatever the combination, no more than sixteen doors are supported Example using three AW2 Wiegand Modules: Any combination of single-reader or entry+exit-reader doors is possible Page 4 of 26 Installation Guide © 2018 HID Global Corporation All rights reserved.
  • Page 5 16 Reader (8 APB Door) Example Master and Slave Controlling eight anti pass-back doors Note: • HID Access Manager will only accommodate 16 doors in total. Installation Guide Page 5 of 26 © 2018 HID Global Corporation All rights reserved.
  • Page 6 NOTE that the Slave ACW2-XN: • Does NOT connect to the network • MUST connect via RS-485 to the Master ACW2-XN • Is able to continue reading cards and controlling its doors in the event of an RS-485 cable break Page 6 of 26 Installation Guide ©...

  • Page 7: Removal/Fitting The Lid

    Additional AW2 modules are plugged into the sides of the existing modules, and then fastened in place with the four mounting screws that are included with each AW2 module. Remember to place the additional AW2 Module labels on the back page of the ACW2-XN Quick Install Guide Note: •...

  • Page 8: Wiring The System

    The supplied MOVs are only for 12V applications, and are MANDATORY Supervised Inputs (Optional) HID Access Manager can monitor the Door Position Sensor (DPS) circuits for tampering when resisters are installed. Two 1kΩ resistors are required for every sense line. These should be installed in a...

  • Page 9: Aw2 Key Components Diagram

    * AW2 Wiegand Modules have spare Earthing Terminals – see page 12 for details DIP-switch Position Function (Factory Set DIP Switch Position) Wiegand 26-bit, 44-bit, 40-bit, 37-bit and card + PIN-code Mode. 1110 Installation Guide Page 9 of 26 © 2018 HID Global Corporation All rights reserved.

  • Page 10: Aw2 Wiring Example

    NB: The supplied MOVs are only suitable for 12V applications. CAUTION: • Inadequate spark suppression can result in early failure of relay contacts – and will void the warranty on the affected AW2 module. Page 10 of 26 Installation Guide © 2018 HID Global Corporation All rights reserved.

  • Page 11: Controller Module

    This is because the settings are only read by the module during the power up cycle. DIP-switch Position Function MODE Slave Controller Mode 0000 Master Controller Mode 0100 Installation Guide Page 11 of 26 © 2018 HID Global Corporation All rights reserved.

  • Page 12: Earthing Terminal

    – so this address should be noted somewhere safe for future use. • The most likely reason for choosing to default a Control Module would be when the HID Access Manager IP address is accidentally set outside of the mask, and HID Access Manager becomes inaccessible.

  • Page 13: Mains Supply Connection

    Modules’ STAT LEDs will remain on constantly as long as a suitable supply voltage is present. 11. Once satisfied that here are no short circuits it is now safe to connect the recommended 12V battery (not included) using the ACW2-XN’s integrated spade terminal plugs. Installation Guide Page 13 of 26 ©...

  • Page 14: Network Setup

    Web-Based Access Control Solution ACW2-XN Network Setup Compatibility Before commencing network setup, be sure that operating system and browser are supported. At time of writing , HID Access Manager compatibility includes the following full releases (or later): • Firefox 52.0.2 • Chrome 58.0.3029.110 •...

  • Page 15: How To Connect To Hid Access Manager For The First Time

    Connect a PC/Laptop directly to the ACW2-XN network socket using a straight (uncrossed) Ethernet cable – or via a network switch. • The PC needs to have an IP address in the same range as the ACW2-XN’s default address. Click Start>Control Panel. 2. Click the “Network and Sharing Centre icon”.

  • Page 16: Required Settings

    Web-Based Access Control Solution ACW2-XN … HID Access Manager will open on the “Live!” Screen: Required Settings Using the menu-driven interface (paths shown on the next page) complete these steps: Set the date and time 2. Update the master password 3.

  • Page 17: Function Paths

    Emergency Unlock OR Lockdown will remain active until it is disabled by clicking on “Revert to Normal State” – on the right hand end of the thick red stripe: Button Installation Guide Page 17 of 26 © 2018 HID Global Corporation All rights reserved.

  • Page 18: Electrical Specifications

    DC Output 100-230 VAC (50/60Hz), 1.3A 12V, 5A Optional Battery (Strongly recommended) Not included with the ACW2-XN, this battery must be sourced separately Note: • Only connect the battery after all system wiring is complete and tested on the built-in power...

  • Page 19: Wiegand Module (Aw2)

    *Note: See individual lock and power supply installation manuals for current consumption and maximum current output. 12 V Power Supply max current output Maximum lock current total Margin (The margin may not be negative.) Installation Guide Page 19 of 26 © 2018 HID Global Corporation All rights reserved.

  • Page 20: Fail Safe Versus Fail Secure

    Use the NO and COM terminals for switching circuits that you wish to be cut off in the event that power to the AW2 module is lost. Page 20 of 26 Installation Guide © 2018 HID Global Corporation All rights reserved.

  • Page 21: Can Hid Access Manager Handle Separated Secure Areas

    The cable break event will logged on the ACW2-XN Master. • When the RS-485 cable is restored, the HID Access Manager’s event log will be updated with any events that happened on the slave side while the cable was broken.

  • Page 22: End User Licence Agreement

    THE SOFTWARE AND DOCUMENTATION TO THE PARTY FROM WHOM THE SOFTWARE WAS ACQUIRED. Grant of License. In consideration of payment of the applicable license fee by Licensee to HID or its authorized reseller and subject to Licensee’s compliance with the terms and conditions of this EULA, HID grants Licensee a non-exclusive, non- transferable, non-sublicensable, worldwide right to use the Software solely for Licensee’s business operations.
  • Page 23 Licensee’s compliance with the terms of this EULA, and provide HID a list of (a) the number of users by country, and (b) the locations and types of the systems on which it operates or has installed the Software. HID reserves the right to audit Licensee’s use of the Software no more than once annually, per Licensee site, at HID’s expense.
  • Page 24 8.2. Additional Remedies. If the Software, or any material portion thereof, is held by a court of competent jurisdiction to infringe, or if HID believes that the Software may be subject to a Claim or held to infringe, HID shall, in its discretion and at its expense (a) replace or modify the Software so as to be non-infringing, provided that the replacement Software provides substantially similar functionality;...

  • Page 25: Copyright And Trademarks

    Software in the event Licensee breaches a material obligation under this EULA and fails to cure such breach within thirty (30) days after HID sends written notice describing the breach if such breach is capable of being cured, or immediately if the breach is not capable of being cured.
  • Page 26 Web-Based Access Control Solution ACW2-XN Notes Page 26 of 26 Installation Guide © 2018 HID Global Corporation All rights reserved.
