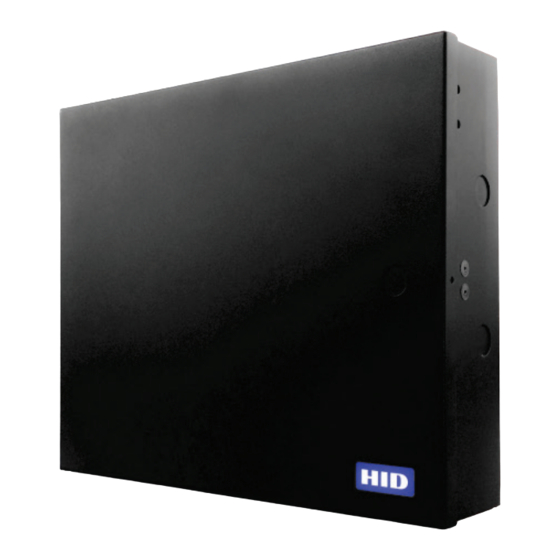

ACW2-XN
Web-based Access Control Solution
Quick Install Guide
ACW2XN-901-EN, Rev. A.1
PLT-03473 A.1
Contents
http://hid.gl/ac-doc
Quick Install
More
Drilling
ACW2-XN
Guide
Documentation
Template
Spare Labels
Metal-Oxide
Spare Fuse
Cable Ties &
Varistors
Anchor

Lid Removal

1.
2.
3.
Open the lid &
Remove the lid
Slide the lid upwards
unplug the cable
