Application Kit Manual TC3X7 ADAS
Hardware: Application Kit TC3X7 ADAS V2.0
Connector Pin Assignment
6.2

USB connector pinout

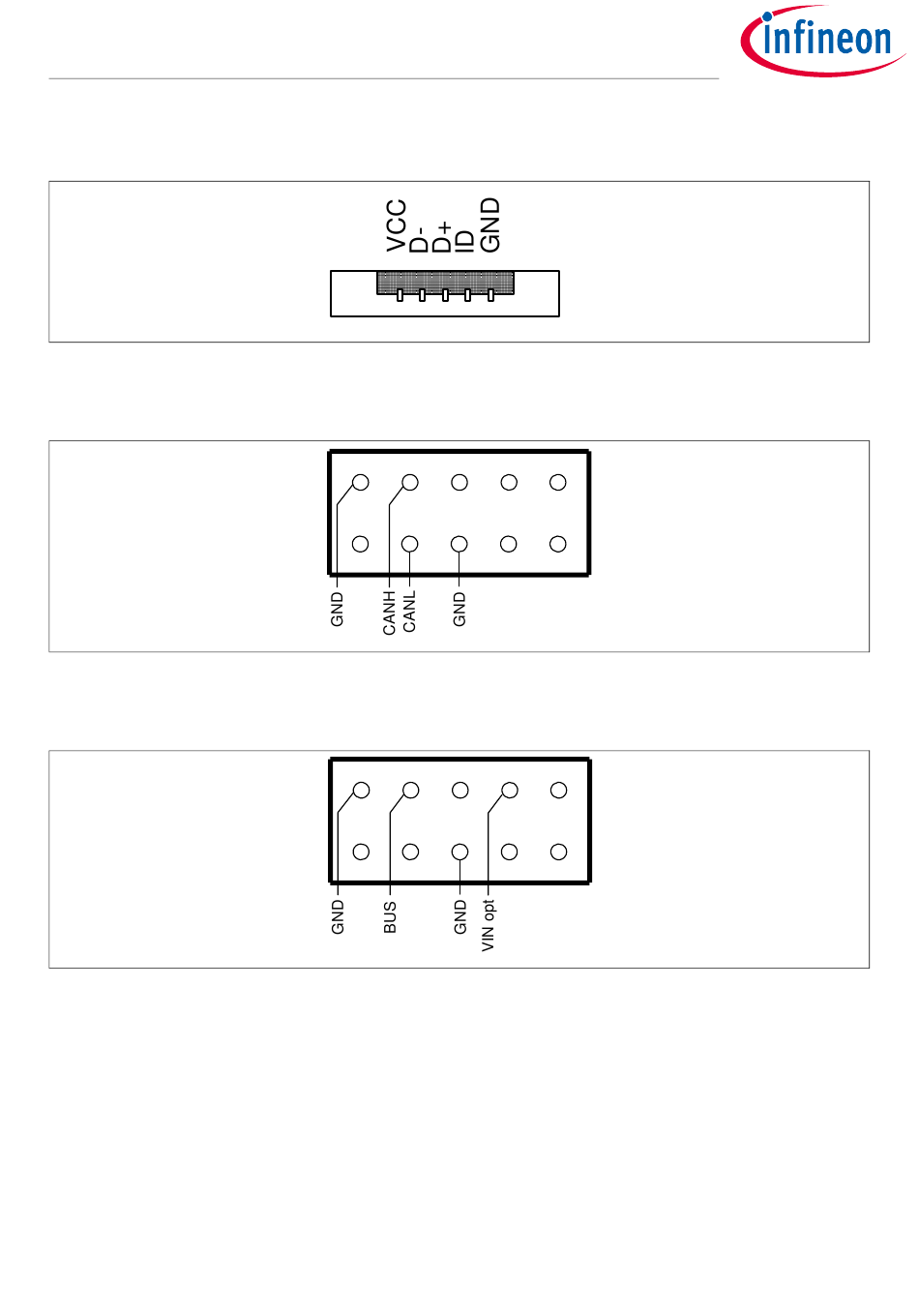

Figure 6-3 USB connector pinout (Micro USB B-type)
6.3

CAN connector pinout

Figure 6-4 CAN connector pinout (IDC10)
6.4

LIN connector pinout

Figure 6-5 LIN connector pinout (IDC10)
User Manual
Application Kit TC3X7 ADAS V2.0
2 4 6 8
1 3 5 7
2 4 6 8
1 3 5 7
6-2
1
0
9
1
0
9
V2.0
2018-06
