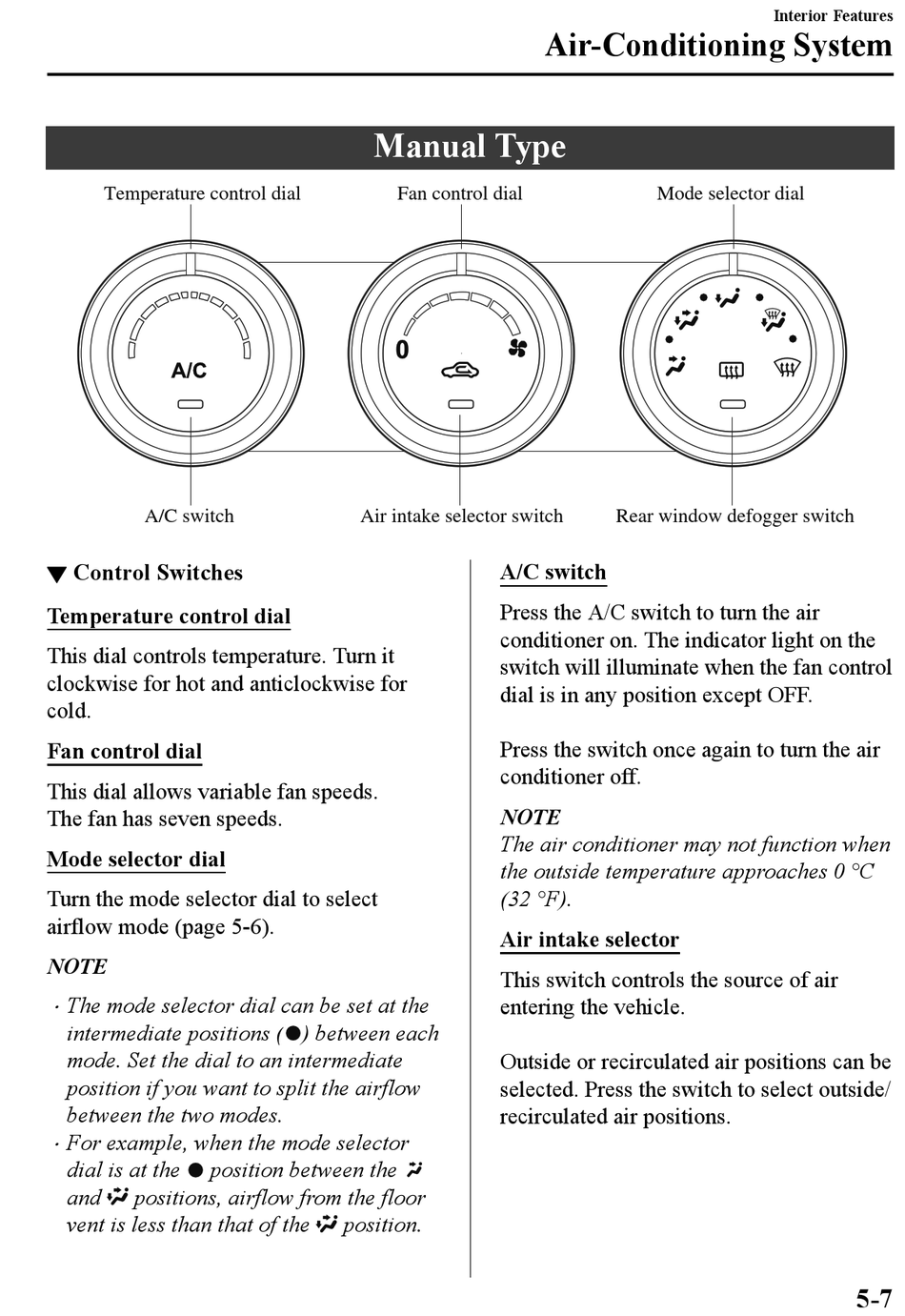

Manual Type - Mazda CX-5 Manual

Temperature control dial
A/C switch
▼ Control Switches
Temperature control dial
This dial controls temperature. Turn it
clockwise for hot and anticlockwise for
cold.
Fan control dial
This dial allows variable fan speeds.
The fan has seven speeds.
Mode selector dial
Turn the mode selector dial to select
airflow mode (page 5-6).
NOTE
The mode selector dial can be set at the

intermediate positions ( ) between each
mode. Set the dial to an intermediate
position if you want to split the airflow
between the two modes.
For example, when the mode selector

dial is at the position between the
and positions, airflow from the floor
vent is less than that of the

Manual Type

Fan control dial
Air intake selector switch
A/C switch
Press the A/C switch to turn the air
conditioner on. The indicator light on the
switch will illuminate when the fan control
dial is in any position except OFF.
Press the switch once again to turn the air
conditioner off.
NOTE
The air conditioner may not function when
the outside temperature approaches 0 °C
(32 °F).
Air intake selector
This switch controls the source of air
entering the vehicle.
Outside or recirculated air positions can be
selected. Press the switch to select outside/
recirculated air positions.
position.
Air-Conditioning System
Mode selector dial
Rear window defogger switch
Interior Features
5-7
