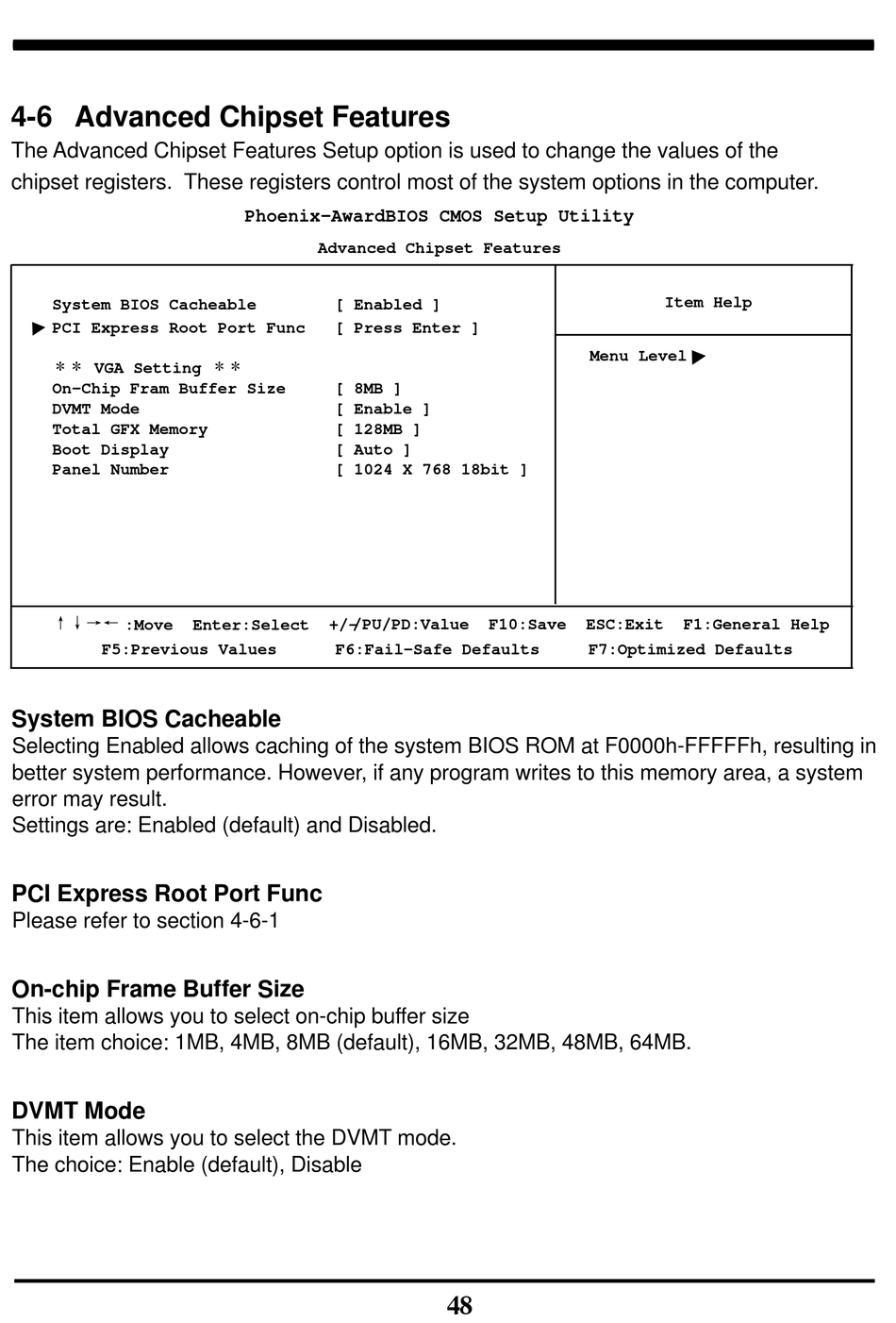

4-6 Advanced Chipset Features

The Advanced Chipset Features Setup option is used to change the values of the
chipset registers. These registers control most of the system options in the computer.
System BIOS Cacheable
PCI Express Root Port Func
＊＊ VGA Setting ＊＊
On-Chip Fram Buffer Size
DVMT Mode
Total GFX Memory
Boot Display
Panel Number
↑↓→←
:Move
F5:Previous Values
System BIOS Cacheable
Selecting Enabled allows caching of the system BIOS ROM at F0000h-FFFFFh, resulting in
better system performance. However, if any program writes to this memory area, a system
error may result.
Settings are: Enabled (default) and Disabled.
PCI Express Root Port Func
Please refer to section 4-6-1
On-chip Frame Buffer Size
This item allows you to select on-chip buffer size
The item choice: 1MB, 4MB, 8MB (default), 16MB, 32MB, 48MB, 64MB.
DVMT Mode
This item allows you to select the DVMT mode.
The choice: Enable (default), Disable
Phoenix-AwardBIOS CMOS Setup Utility
Advanced Chipset Features
[ Enabled ]
[ Press Enter ]
[ 8MB ]
[ Enable ]
[ 128MB ]
[ Auto ]
[ 1024 X 768 18bit ]
+/- /PU/PD:Value
Enter:Select
F6:Fail-Safe Defaults
Menu Level
F10:Save ESC:Exit
F7:Optimized Defaults
48
Item Help
F1:General Help
