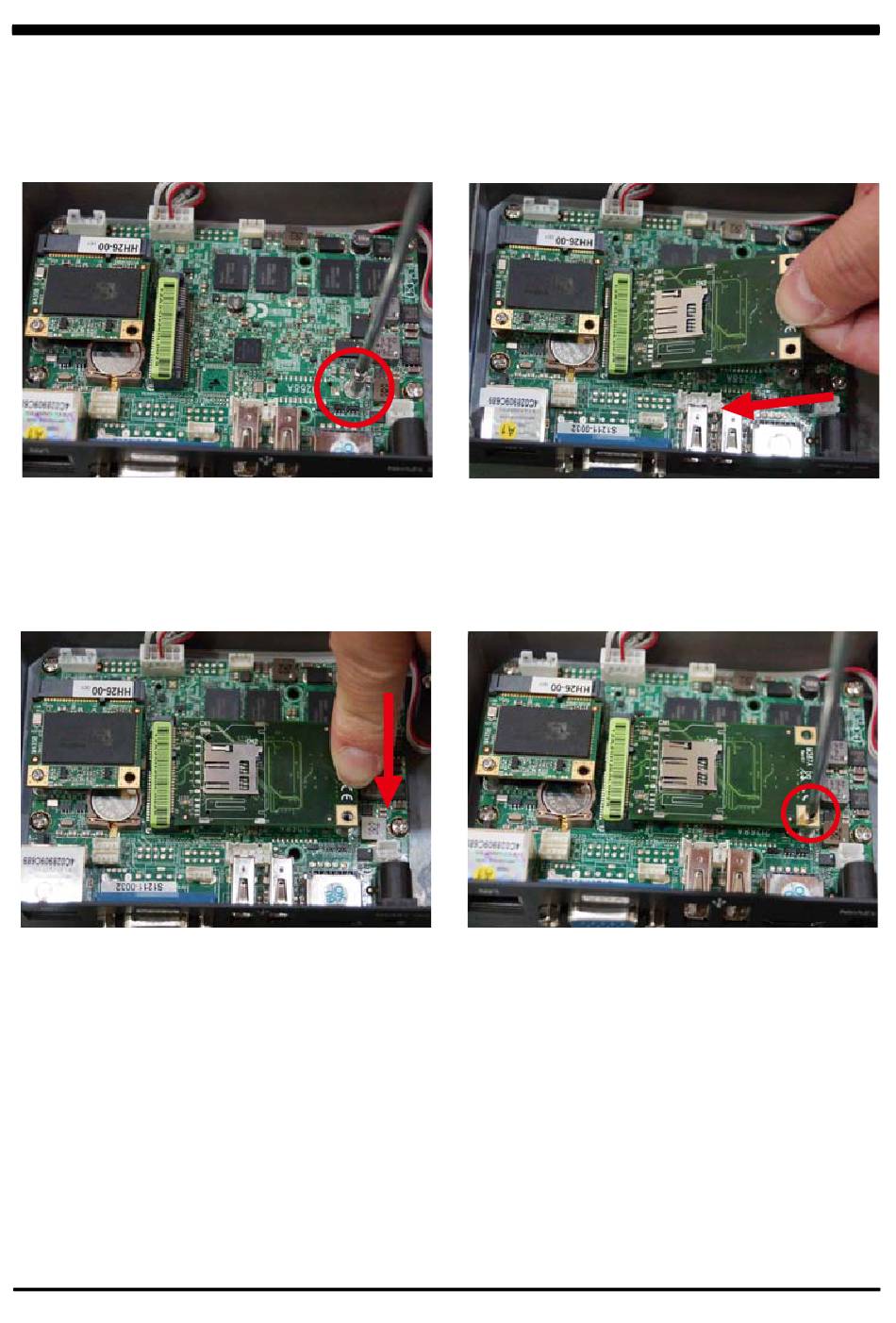

5. Unfasten the round-headed M2*6 screw
6. Install the full size MINI PCI-E card at the
angle of 45°.
for the full size MINI PCI-E.
(Such as 3G card module, Wireless card
module or GPS card module)
7. Push it
down.
8. Fasten round-headed M2*6 screw.
8
