3-12 USB Ports

.

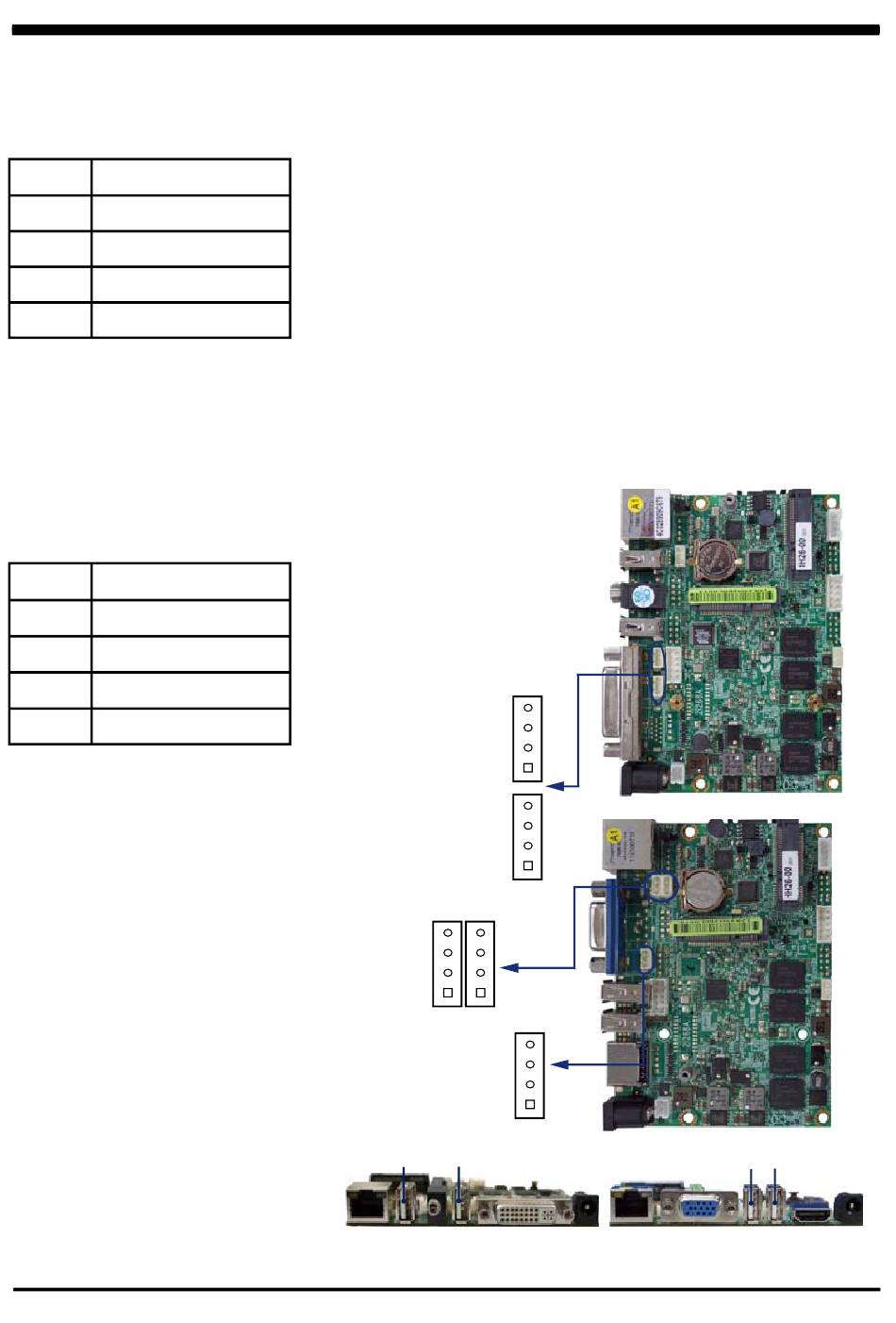

CU1/2/3/4 : USB 1/2/3/4 ports (USB Type A connector)
PIN NO. Description
1 +5V
2 USB DATA -
3 USB DATA +
4 GND
Note: 1. CU1/2 connector share with DVI
2. CU3/4 connector share with CC1/CG1/CA1
Internal USB connector (4pin 1.25mm Wafer)
.
CU11/CU21: USB 1/2 ports
CU31/CU41: USB 3/4 ports
CU5:USB5 ports
PIN NO. Description
1 +5V
2 USB DATA -
3 USB DATA +
4 GND
Note : 1. Attention ! Check Device Power in spec
2. CU11 share CU1 , CU21 share CU2
3. CU31 share CU3 , CU41 share CU4
CU21
CU11
pin1
CU5
CU41
pin1
CU31
pin1
CU4 CU3
38
CU2 CU1
