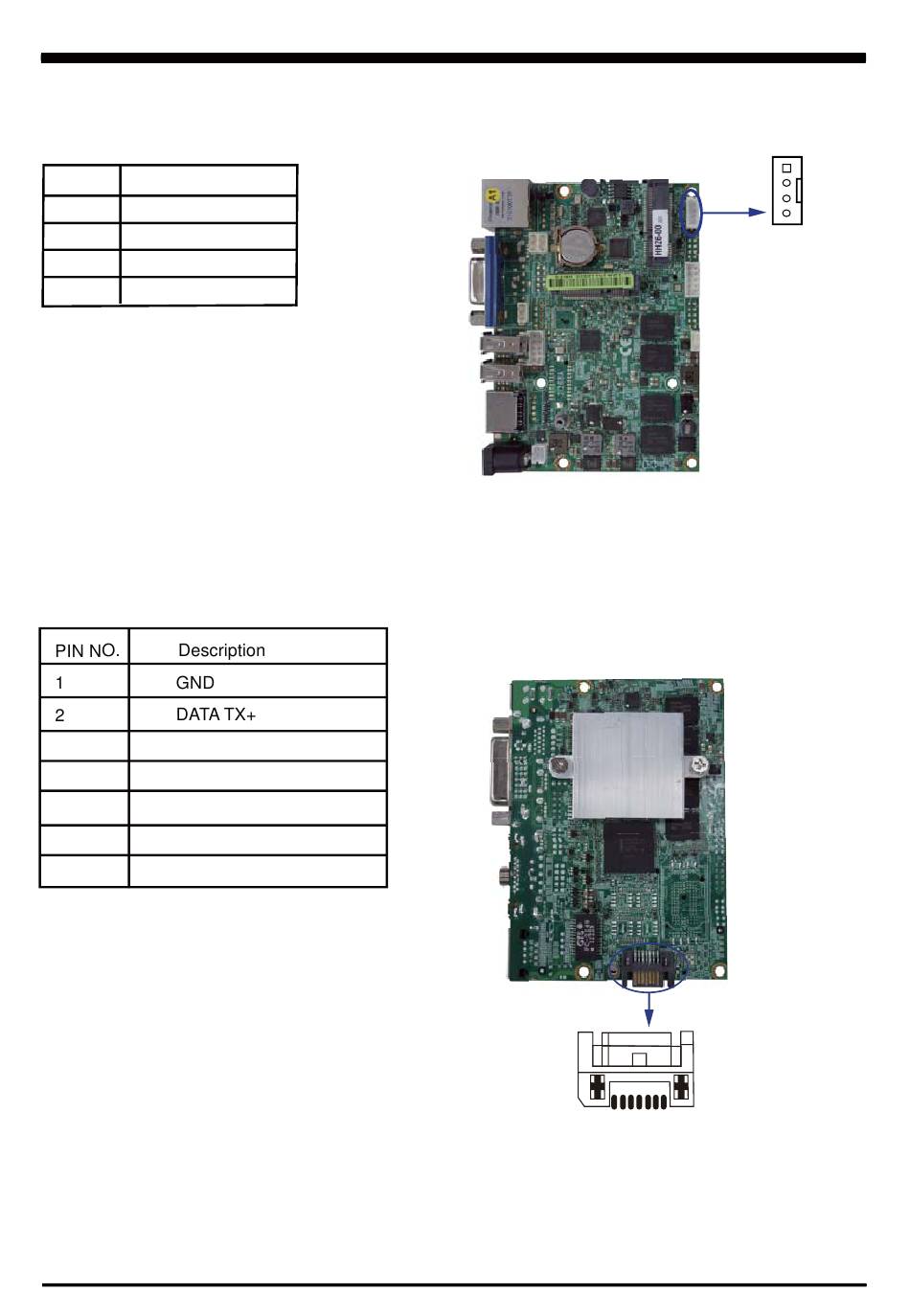

3-13 DC +5 / +12V Voltage output connector
.
CPO1: +12V / +5V DC voltage output (4pin 2.0mm Wafer)
PIN NO. Description
1 +5V
2 GND
3 GND
4 +12V *
Note : 1. Attention ! Check Device Power in spec
2. +12V from Adapter in (same as Adaptor voltage)

3-14 SATA Interface

.
SATA1: SATA connector (7pin wafer)
3 DATA TX-
4 GND
5 DATA RX-
6 DATA RX+
7 GND
Note : 1. CPO1 provide SATA HDD power
39
pin1
CPO1
SATA1
