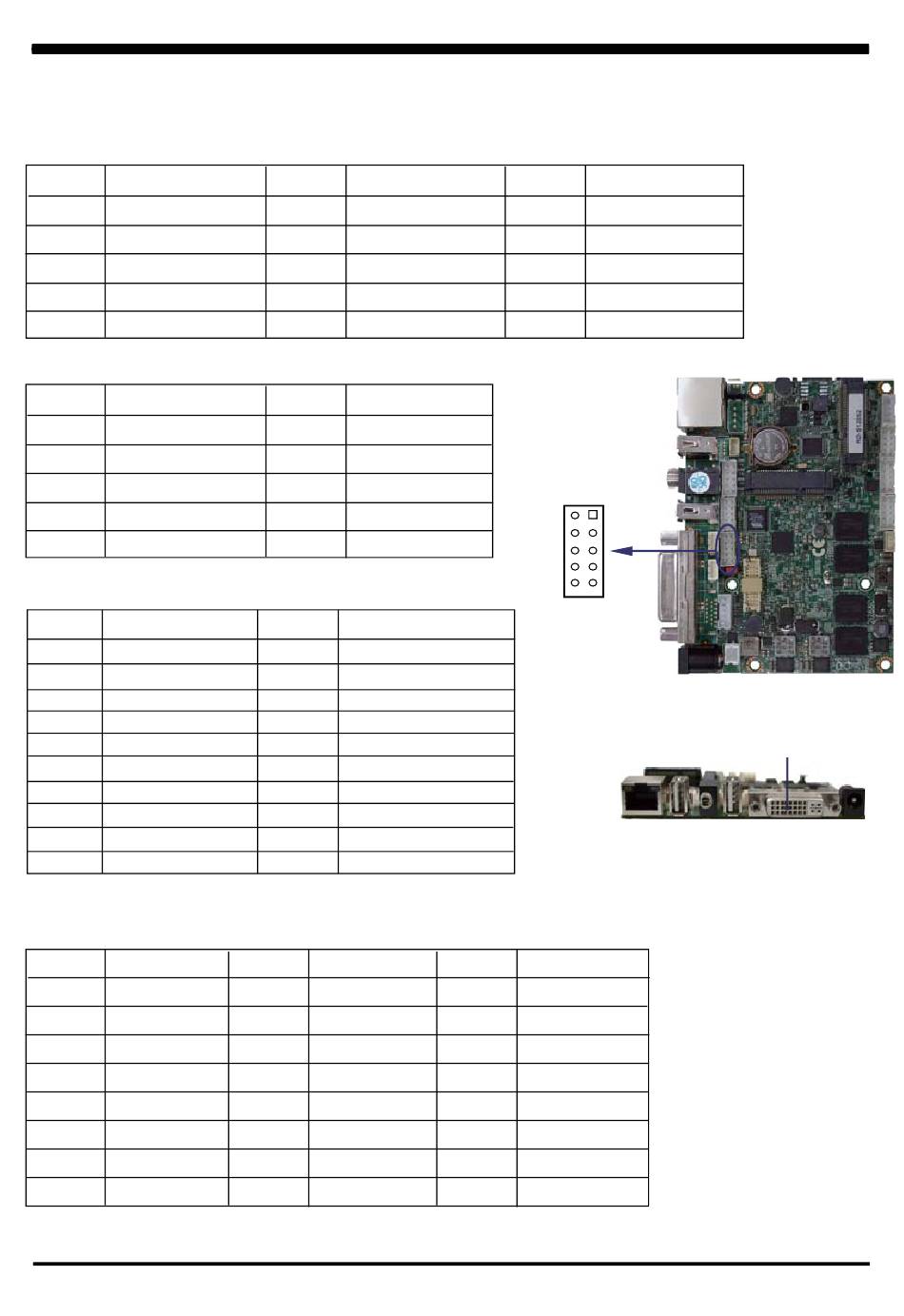

3-3 Graphic / Video port Connector

.
CG1: VGA DB15 connector
PIN NO. Description
1 RED
3 GREEN
5 BULE
7 NC
9 GND
.
CG11: VGA 2x5pin 2.0mm wafer connector
PIN NO. Description
1 BULE
3 GND
5 GREEN
7 GND
9 RED
.
HDMI1：HDMI Connector
PIN NO. DESCRIPTION
TMDS DATA2+
1
TMDS DATA2-
3
GND
5
TMDS DATA0+
7
TMDS DATA0-
9
GND
11
NC (CEC)
13
DDC CLOCK
15
GND
17
H.P. Detect
19
Note : Share DVI1 position
.
DVI1 : DVI-D connector (DB Connector)
PIN NO. Description
1 Data 2-
2 Data 2+
3 GND
4 NC
5 NC
6 DDC-CLK
7 DDC-DATA
8 NC
Note : DVI1 only use DVI-D
PIN NO. Description
2 GND
4 GND
6 GND
8 Don't use
10 GND
PIN NO. Description
2 GND
4 DDC CLOCK
6 V-SYNC
8 H-SYNC
10 DDC DATA
PIN NO. DESCRIPTION
GND
2
TMDS DATA1+
4
TMDS DATA1-
6
GND
8
TMDS CLK+
10
TMDS CLK-
12
NC
14
DDC DATA
16
+5V
18
PIN NO. Description
9 Data 1-
10 Data 1+
11 GND
12 NC
13 NC
14 +5V
15 GND
16 H.P.Detect
PIN NO.
11
12
13
14
15
CG11
pin1
PIN NO. Description
17 Data 0-
18 Data 0+
19 GND
20 NC
21 NC
22 GND
23 CLK+
24 CLK-
21
Description
NC
DDC DATA
H-SYNC
V-SYNC
DDC CLOCK
DVI1
