Assa Abloy h.e.s. KS-EM Installation & Operating Instructions Manual

KS-EM
Server Cabinet Lock
Installation & Operating Instructions
Operation
To activate the KS-EM electronic access control Server Cabinet
Lock, a simple contact such as a switch, relay or even an adjacent
KS210 can be used. Alternate control options are available
utilizing our accessory harness kit. For emergency override,
insert a valid key into the SFIC (Small Format Interchangeable
Core) cylinder and rotate to the unlocked position. Upon
access granted, verify functionality by lifting and rotating
the handle to release the locking cam and open the door.
NOTE: The unit shall be powered by a UL294 listed power supply or access control
output with a power limited Class 2 output. The DC input feed to the device shall be
protected by 1A max rated over current protection provided at the installation site.
ASSA ABLOY recommends the use of Securitron and Life Safety Power power
management products for use with ASSA ABLOY branded electromechanical
and integrated electronic access control locking devices.
Product Contents
A KS-EM Lock Body
B Lock Interface Cable
C Rear Mounting Bracket
D Connectors (6)
E Screws (3) #8/32 x 1/4"
Pan Head Phillips
Recommended Tools
• Phillips #2 Screwdriver
• Cutting Wheel (As Required)
Recommended Accessories
• SFIC Mechanical Core and Keys
• KS-DPS Door Open/Closed Status
• CBL6-QC12 6 ft Door Interface Cable
• CBL12-QC12 12 ft System Side Interface Cable
• Accessory Harness Kit (Contact Factory for Ordering)
F Locking Cam
G Screw (1) #1/4-20 x 1/2"
Truss Head Phillips
H SFIC Cam & Spacer
I Plug-In External DPS Adapter
(Optional)
WARNING: This product can expose you to chemicals including lead, which is known to the state of California
to cause cancer and birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

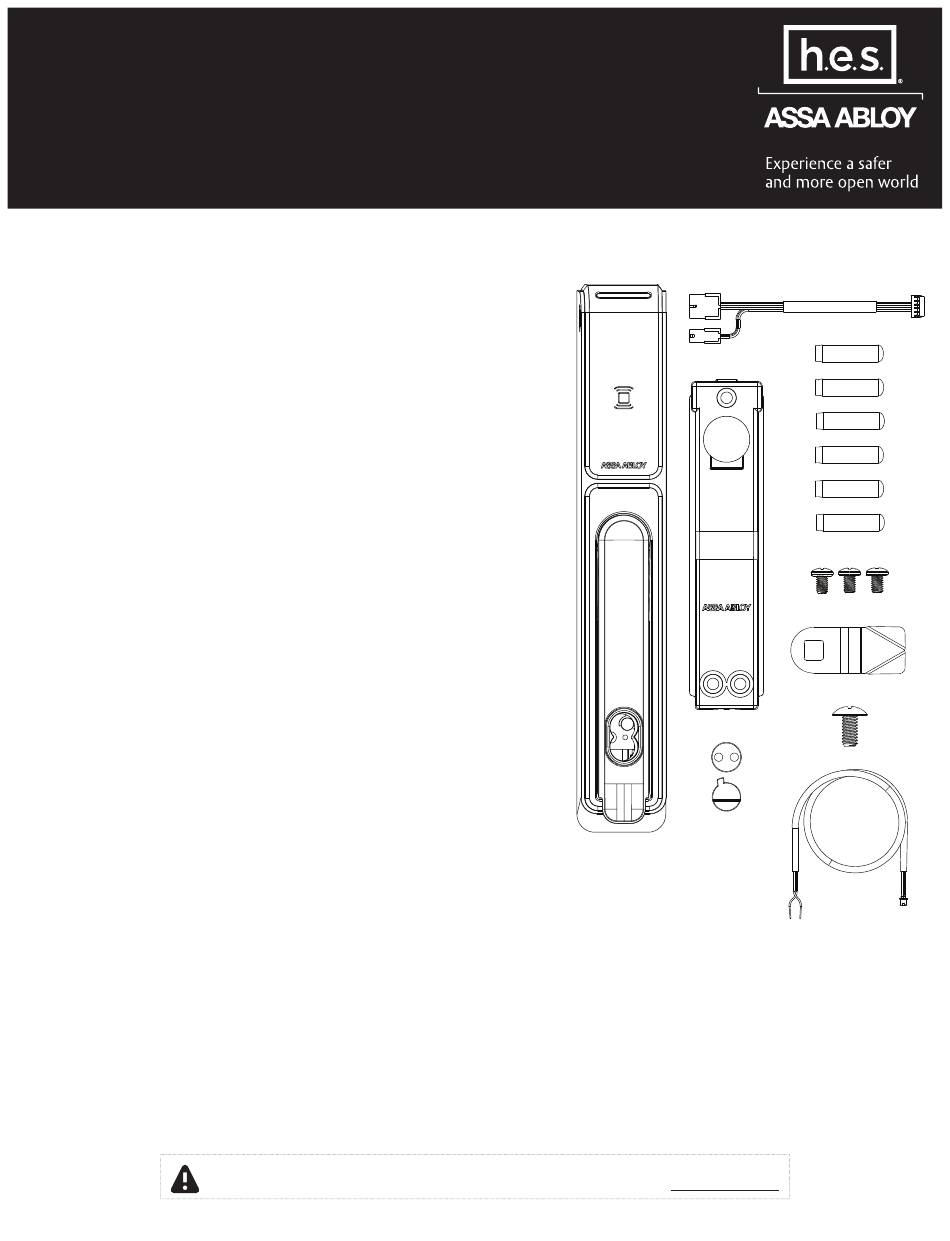

Diagram 1 Product Components
B
A
C
H
D
E
F
G
I
