INS14278-4
3.1.1

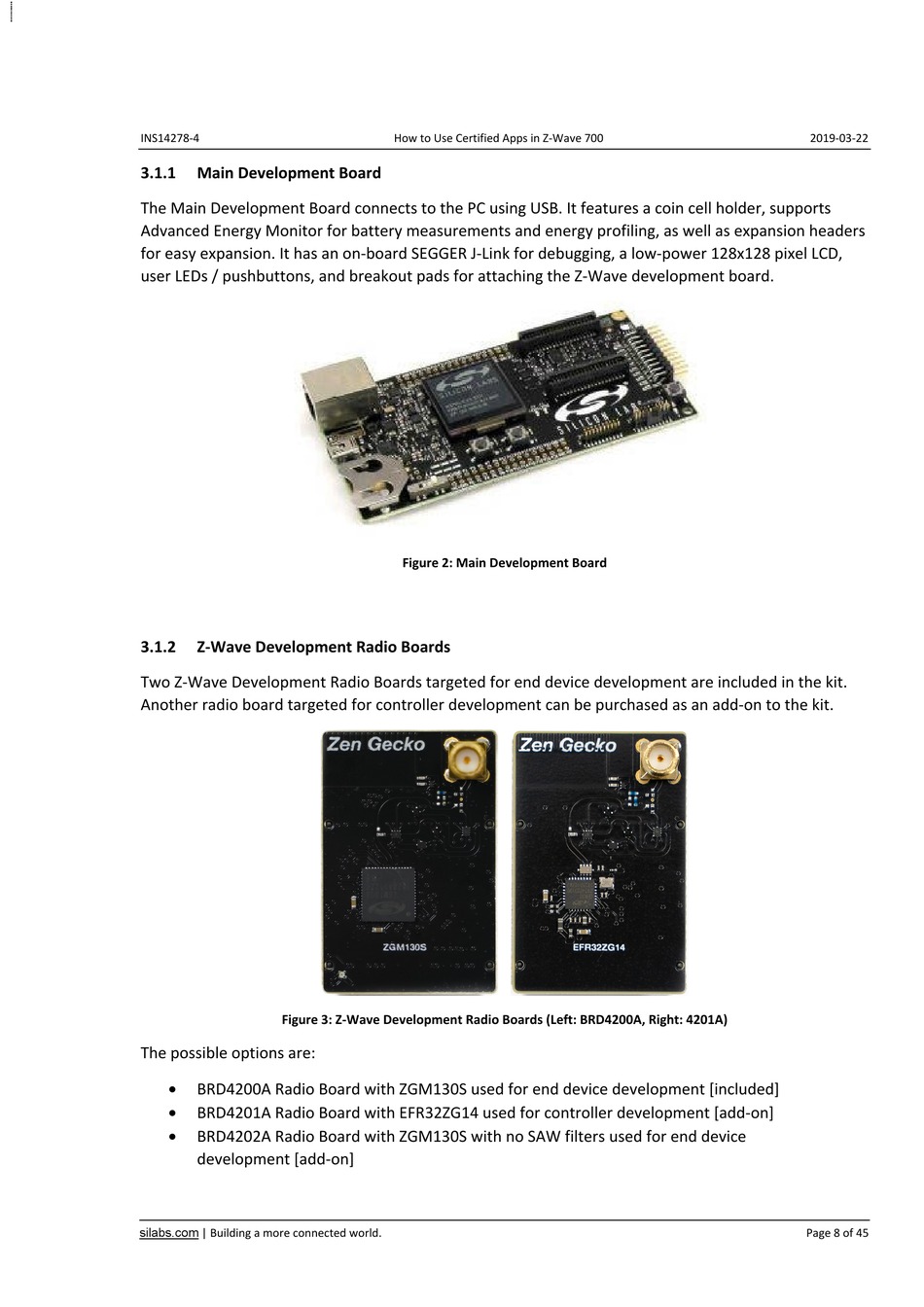

Main Development Board

The Main Development Board connects to the PC using USB. It features a coin cell holder, supports
Advanced Energy Monitor for battery measurements and energy profiling, as well as expansion headers
for easy expansion. It has an on-board SEGGER J-Link for debugging, a low-power 128x128 pixel LCD,
user LEDs / pushbuttons, and breakout pads for attaching the Z-Wave development board.
3.1.2

Z-Wave Development Radio Boards

Two Z-Wave Development Radio Boards targeted for end device development are included in the kit.
Another radio board targeted for controller development can be purchased as an add-on to the kit.

Figure 3: Z-Wave Development Radio Boards (Left: BRD4200A, Right: 4201A)

The possible options are:

BRD4200A Radio Board with ZGM130S used for end device development [included]

BRD4201A Radio Board with EFR32ZG14 used for controller development [add-on]

BRD4202A Radio Board with ZGM130S with no SAW filters used for end device
development [add-on]
silabs.com | Building a more connected world.
How to Use Certified Apps in Z-Wave 700

Figure 2: Main Development Board

2019-03-22
Page 8 of 45
