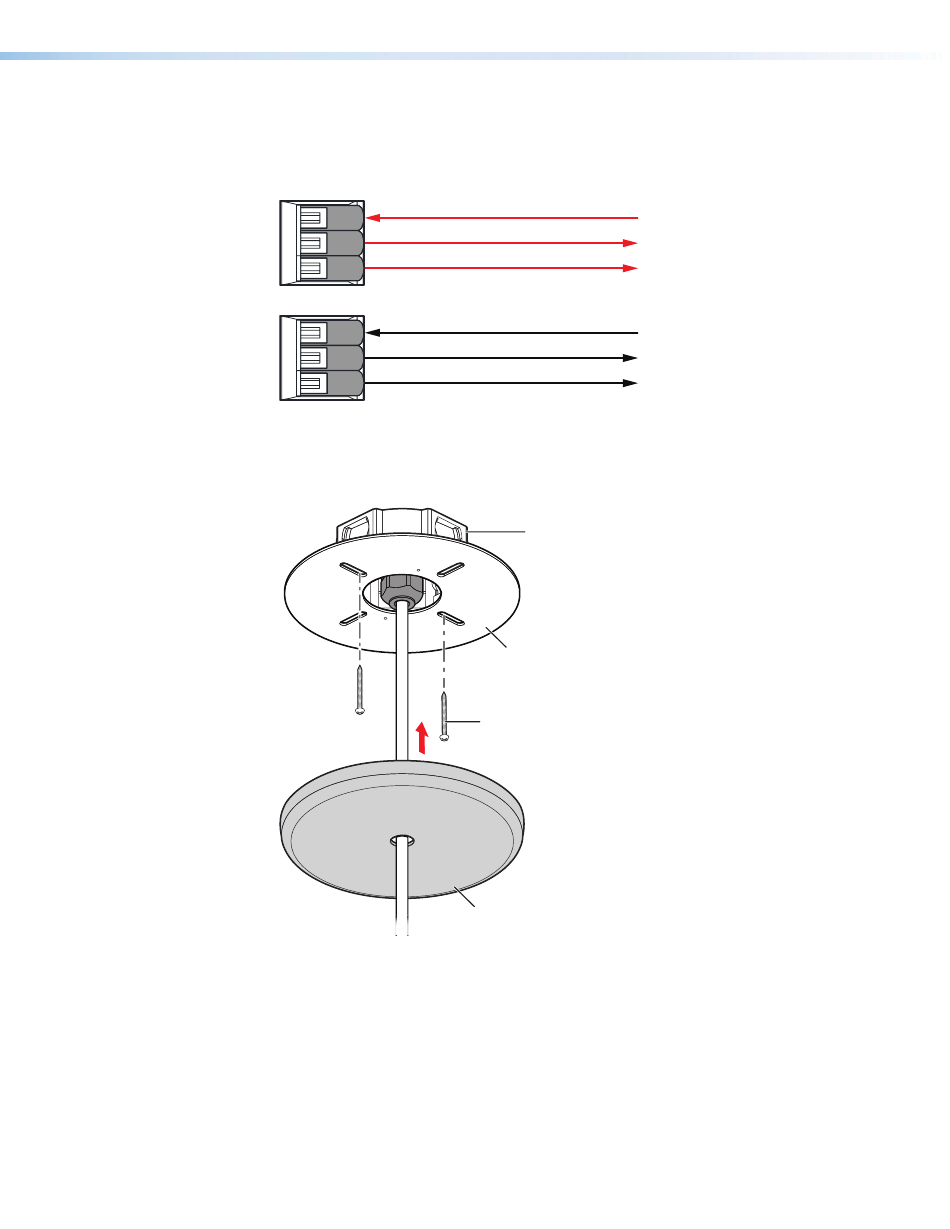

Wire the 3-pole splicing connectors for a Loop-through configuration.
Loop-through:
Red Wire (+) from Previous Speaker/Amplifier
Red Wire (+) to Next Speaker
Red Wire (+) to Speaker
Black Wire (-) from Previous Speaker/Amplifier
Black Wire (-) to Next Speaker
Black Wire (-) to Speaker
Figure 16.
Loop-through Configuration
13.
Using two screws, attach the ceiling bracket to the ceiling box with the splicing
connectors inserted into the ceiling box.
Figure 17.
Attaching Ceiling Bracket to Ceiling Box
Ceiling Box
Ceiling Bracket
Screw
Ceiling Bracket
Cover Plate
SF 3PT User Guide • Installation
14
