10.
Secure the red and the black speaker wires coming from the cable to the tie-off point
using the tie-wrap.
Tie-Off
Point
Tie-Wrap

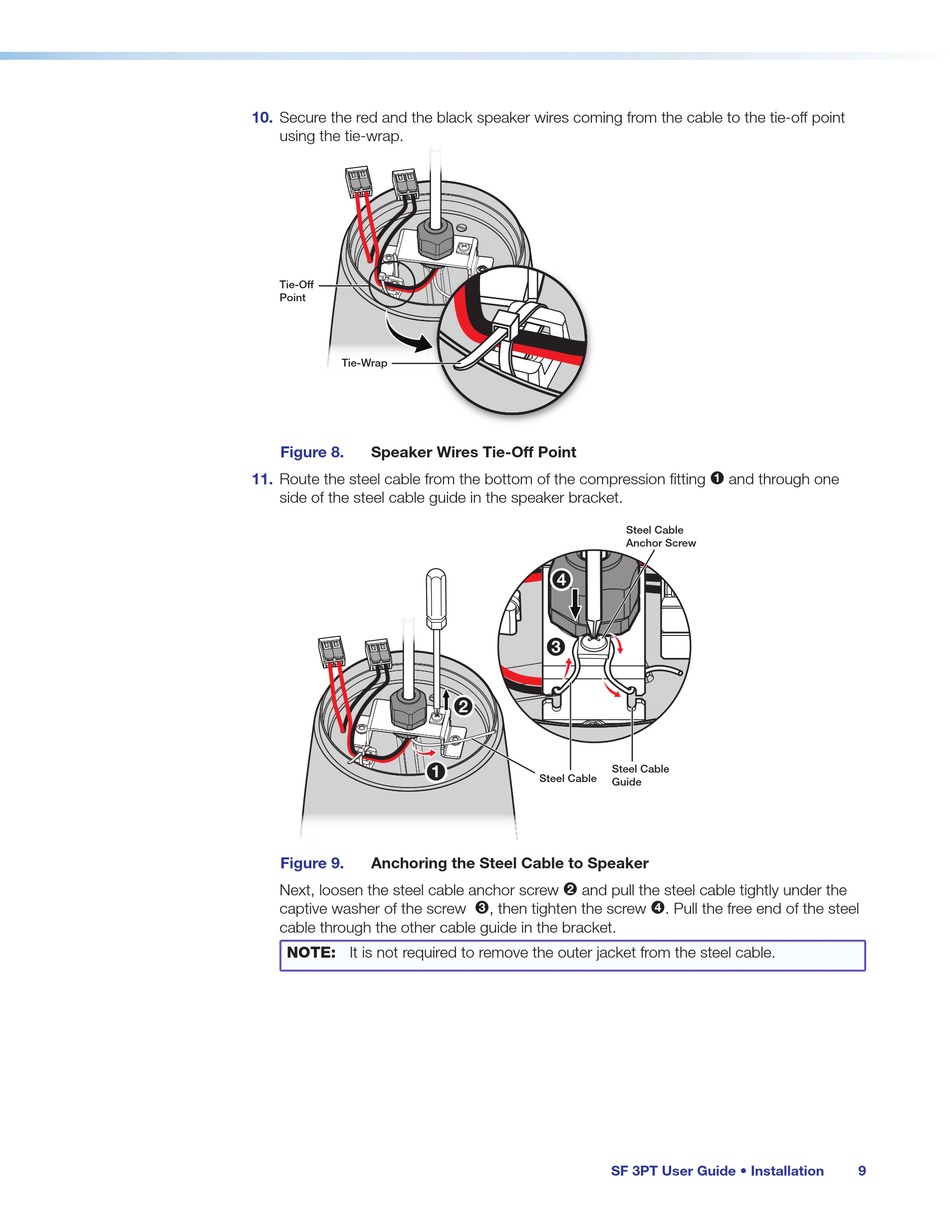

Figure 8.
Speaker Wires Tie-Off Point
11.
Route the steel cable from the bottom of the compression fitting 1 and through one
side of the steel cable guide in the speaker bracket.
1 1
Figure 9.
Anchoring the Steel Cable to Speaker
Next, loosen the steel cable anchor screw 2 and pull the steel cable tightly under the
captive washer of the screw 3, then tighten the screw 4. Pull the free end of the steel
cable through the other cable guide in the bracket.
NOTE: It is not required to remove the outer jacket from the steel cable.
Steel Cable
Anchor Screw
4 4
2 2
Steel Cable
Steel Cable
Guide
SF 3PT User Guide • Installation
